The LMT-H Series High-Resolution 2D Material Transfer System is an in-house developed solution tailored to customer applications for transferring and assembling low-dimensional van der Waals heterostructures. It is designed for precise alignment and transfer of monolayer materials such as graphene, molybdenum disulfide (MoS₂), and black phosphorus, as well as for the stacking of multilayer heterostructures, enabling fully visualized and controlled transfer operations.
The system integrates:high-resolution metallurgical imaging system；precision temperature control module；vacuum adsorption module；high-precision 4-axis sample stage；5-axis substrate holder, which supports in-plane wide-angle rotation
This transfer platform serves as a powerful tool for studying heterostructure properties, spatial inversion symmetry breaking, and the impact of different stacking configurations in two-dimensional materials.
Technical Advantages:
- Integrated design, easy to operate
- High-resolution metallurgical imaging, enabling micron-scale transfer precision
- High positioning accuracy with zero-backlash design
- Precision temperature control module, adaptable to a wide range of materials
Application Fields:
- Twisted-angle superconductivity research
- 2D material stacking
- Van der Waals heterostructure fabrication
- Studies on inversion symmetry breaking in heterojunctions

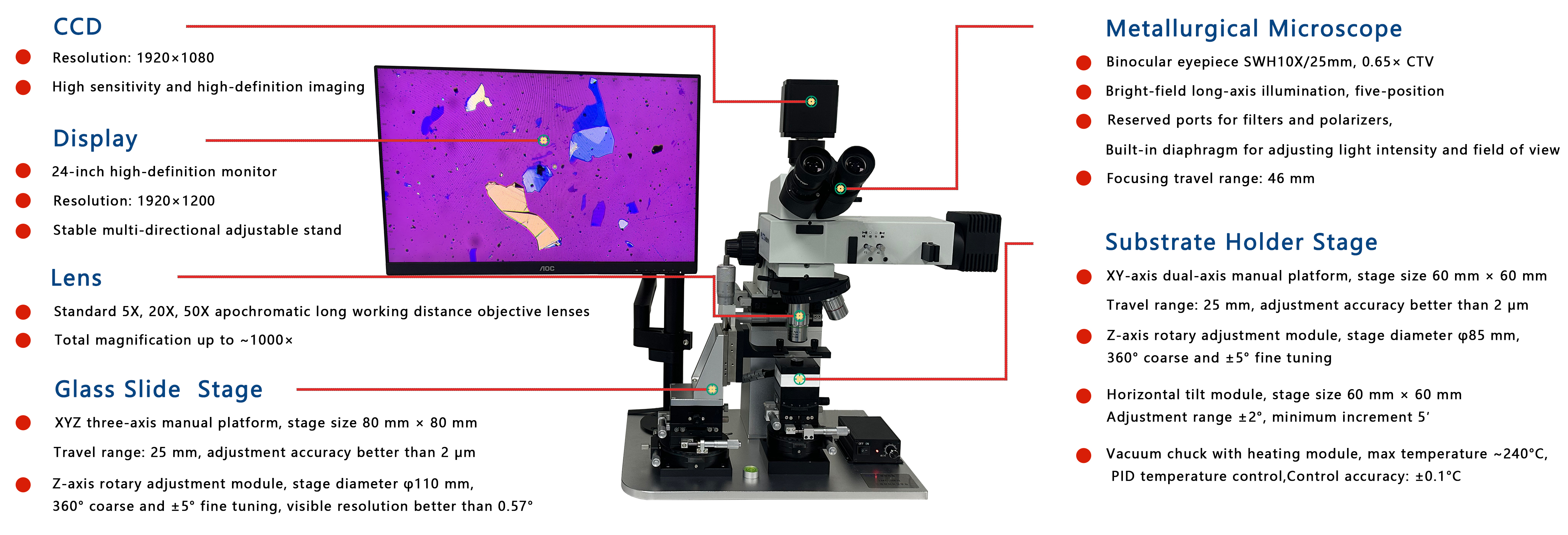

Technical Specifications:
| Module | Specification |
|---|
| Substrate Stage | XY 2-axis manual stage, 60 mm × 60 mm platform, 25 mm travel; adjustment accuracy ≤ 2 μm; Z-axis rotary tilt, φ85 mm platform, ±5° fine tuning, visual resolution ≤ 0.8′. Tilt module: 60 mm × 60 mm, tilt ±2°, min. step 5′. Vacuum-heated chuck: max. 240 °C, PID controller, ±0.1 °C precision, high thermal conductivity. Optional cooling module for rapid heating/cooling. |
| Glass Slide Stage | XYZ 3-axis manual stage, 80 mm × 80 mm platform, 25 mm travel, accuracy ≤ 2 μm; Z-axis rotation, φ110 mm platform, ±5° fine tuning, visual resolution ≤ 0.57′. Optional magnetic base for slide mounting. |
| High-Resolution Metallurgical Microscope | Equipped with binocular eyepieces (SWH10X / 25 mm) and a 0.65× C-mount camera adapter;
Features a brightfield long-axis illuminator and a 5-position objective turret;
Standard objectives include 5×, 10×, and 50× plan achromatic long working distance objectives; optional 10× and 100× objectives are available;
Reserved slots for optical filters and polarizers;
Includes adjustable diaphragm for regulating light intensity and field of view;
Built with a high-stability focusing mechanism and delivers excellent imaging quality, making it ideal for precise μm-scale sample alignment and transfer. |
| Microscope XY Adjustment | Microscope XY 2-axis fine adjustment, 50 mm travel, accuracy ≤ 2 μm; enables large-range visual alignment post-2D material stacking. |
| Imaging Camera | 12 MP high-sensitivity digital color camera, high-resolution imaging, comes with software. |
| Display Monitor | 24″ 2K HD display, with stable articulating arm bracket. |
| Integrated Electrical Controller | Centralized system control: manages sample heating, cooling, temperature modules, and vacuum adsorption. |
| Vacuum Pump | Output flow 7 L/min; vacuum up to –33.3 kPa; lifespan > 10,000 hours. |
| Optional Features | Probe station modules, optical vibration platforms, PDMS thermal release membranes, 2D materials (mechanical exfoliation, block types), objectives (10×, 100×), motorized control modules, glovebox compatibility, etc. |
