The LET-S Series High-Resolution Motorized 2D Material Transfer System is independently developed by our company to meet the demands of specialized experimental setups and high-precision transfer applications. It is designed for precise deterministic transfer of monolayer materials such as graphene, MoS₂, and black phosphorus, as well as for the fabrication of multilayer van der Waals heterostructures, enabling visualized manipulation of low-dimensional materials.
The system integrates a high-resolution metallurgical microscope, precision temperature control module, vacuum adsorption system, and high-precision motorized sample and substrate stages. The substrate stage supports large in-plane angular rotation, making it an ideal tool for studying heterostructure characteristics, breaking of spatial inversion symmetry, and the influence of stacking configurations in two-dimensional materials.
Technical Advantages:
- Integrated design, easy to operate
- High-resolution metallurgical imaging, enabling micron-scale transfer precision
- High positioning accuracy with zero-backlash design
- Precision temperature control module, adaptable to a wide range of materials
Application Fields:
- Twisted-angle superconductivity research
- 2D material stacking
- Van der Waals heterostructure fabrication
- Studies on inversion symmetry breaking in heterojunctions
Technical Specifications:

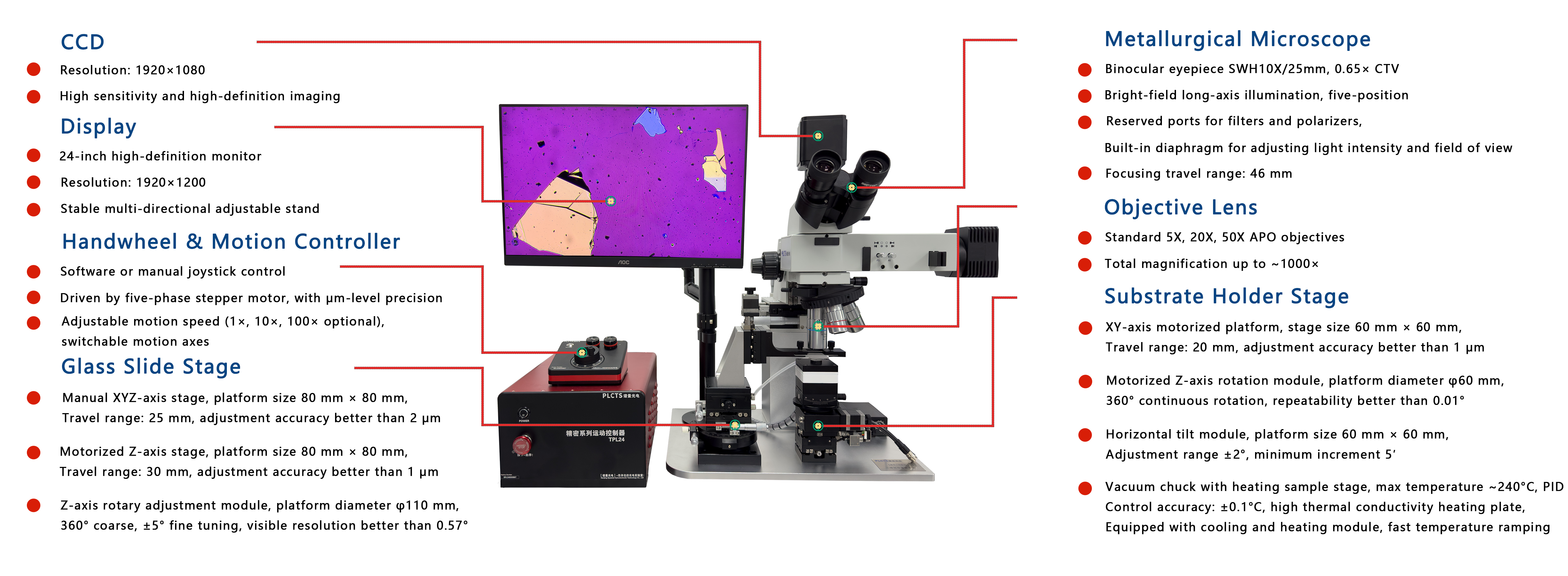

| Module | Specification |
|---|
| Substrate Stage | XY-axis motorized translation stage (60 mm × 60 mm, 20 mm travel,<1 μm accuracy); Z-axis motorized rotation (φ60 mm, 360° adjustable, 0.01° repeatability); horizontal tilt adjustment (±2°, min. increment 5′); vacuum heating sample stage (up to ~240 °C, PID control, ±0.1 °C accuracy, high thermal conductivity surface with integrated cooling module). |
| Glass Slide Stage | Manual XY-axis translation (80 mm × 80 mm stage, 25 mm travel,<2 μm accuracy); motorized Z-axis translation (80 mm × 80 mm stage, 20 mm travel, <1 μm accuracy); manual rotation around Z-axis (φ110 mm stage, 360° coarse adjustment, ±5° fine adjustment, visual resolution <0.57°); custom high-stability slide holder for easy clamping. |
| High-Resolution Metallurgical Microscope | Equipped with binocular eyepieces (SWH10X / 25 mm) and a 0.65× C-mount camera adapter;
Features a brightfield long-axis illuminator and a 5-position objective turret;
Standard objectives include 5×, 10×, and 50× plan achromatic long working distance objectives; optional 10× and 100× objectives are available;
Reserved slots for optical filters and polarizers;
Includes adjustable diaphragm for regulating light intensity and field of view;
Built with a high-stability focusing mechanism and delivers excellent imaging quality, making it ideal for precise μm-scale sample alignment and transfer. |
| Microscope XY Adjustment | Microscope XY 2-axis fine adjustment, 50 mm travel, accuracy ≤ 2 μm; enables large-range visual alignment post-2D material stacking. |
| Imaging Camera | 12 MP high-sensitivity digital color camera, high-resolution imaging, comes with software. |
| Display Monitor | 24″ 2K HD display, with stable articulating arm bracket. |
| Integrated Electrical Controller | Centralized system control: manages sample heating, cooling, temperature modules, and vacuum adsorption. |
| Vacuum Pump | Output flow 7 L/min; vacuum up to –33.3 kPa; lifespan > 10,000 hours. |
| Optional Features | Probe station modules, optical vibration platforms, PDMS thermal release membranes, 2D materials (mechanical exfoliation, block types), objectives (10×, 100×), motorized control modules, glovebox compatibility, etc. |
