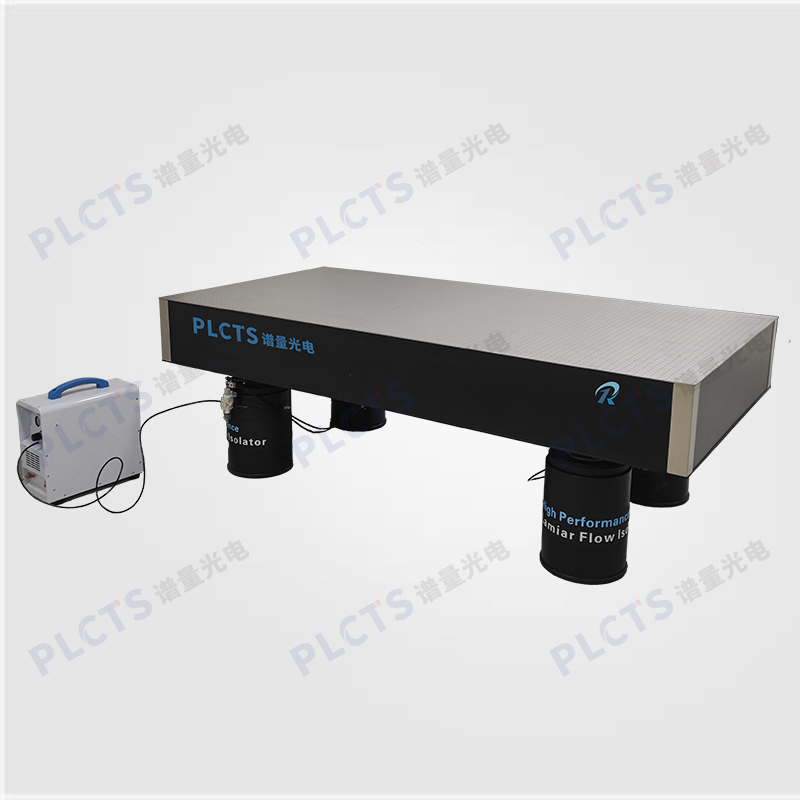

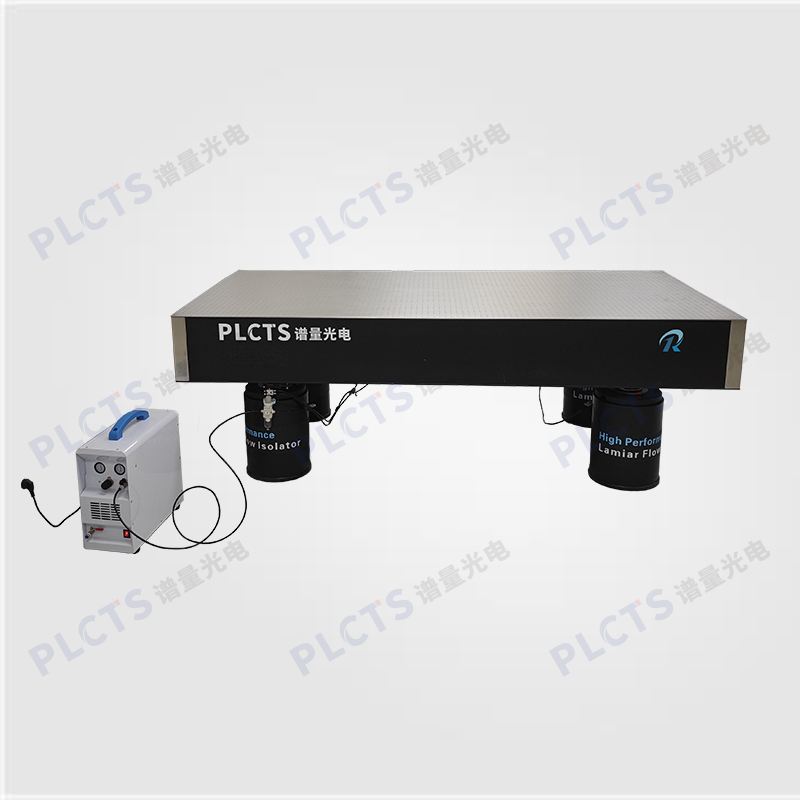

PLCTS's Three-Pendulum Pneumatic Isolation Table is designed for ultra-high-precision research, delivering performance comparable to top international brands. The independent cylindrical legs eliminate system-wide resonance, while the tri-wire pendulum design ensures ultra-low vibration levels and highly accurate repositioning after disturbances.
Laminar flow damping and a hybrid chamber structure enhance damping efficiency and reduce the system's natural frequency within a compact footprint.
The table features a high-permeability SUS430 stainless steel surface, precision-ground for flatness and finished with a non-reflective matte edge. An M6-threaded hole array allows flexible component mounting. A high-power, ultra-quiet air compressor is included as standard—making it an ideal choice for demanding scientific applications.
Technical Advantages:
● Micron-level laminar flow damping
● SMC nanometer-grade high-flow pneumatic actuators
● High-performance pneumatic isolators with a minimum resonance frequency as low as 1 Hz
● Secure connectors on the top of support legs, significantly improving operational safety
● Hybrid chamber design greatly enhances system stability and reduces natural frequency
● Tri-wire pendulum structure maximizes vibration isolation and enables high-precision repositioning after disturbances
● Top-mounted adjustment unit allows easy ±10 mm height tuning
● Industry-leading honeycomb panel welding and bonding technology
Technical Specifications:
| Parameter | Specification |
|---|
| Flatness | ≤0.05mm/m² |
| Surface Roughness | <0.8μm |
| Natural Frequency | Vertical: < 1.0–1.5 Hz ；Horizontal: < 1.0–1.5 Hz ；minimum vertical resonance: 1 Hz |
| Isolation Efficiency | Vertical: 85–90% @ 5 Hz, 91–96% @ 10 Hz
Horizontal: 87–92% @ 5 Hz, 92–97% @ 10 Hz |
| Vibration Amplitude | ＜2μm |
| Hole Position Tolerance | ±0.05mm |
| Thread Specification | M6（metric） |
| Thread Tolerance | ±0.03mm |
| Load Capacity | 300Kg/m² |
| Tabletop Thickness | 100mm/150mm/200mm/250mm/300mm |
| Tabletop Weight | 120Kg/m²@100mm, 140Kg/m²@200mm, 165Kg/m²@300mm(≈) |
| Leveling Method | Automatic leveling |
| Isolation Structure | Tri-wire pendulum design, hybrid chamber structure |
| Damping Method | Micron-level laminar flow damping |
Test Data:
Vibration Isolation Efficiency:
– Vertical: 91% @ 5 Hz; 94% @ 10 Hz
– Horizontal: 92% @ 5 Hz; 97% @ 10 Hz
Static Amplitude Test Result：0.00192
Natural Frequency Test Result：
Vertical natural frequency 1.40625Hz
Horizontal natural frequency 1.25Hz
Model List：
| Model | Dimensions (㎜) | Load Capacity (kg) | 支腿数量 |
|---|
| PLGQS-1208 | 1200x800x800 | 800 | 4 |
| PLGQS-1509 | 1500x900x800 | 1400 | 4 |
| PLGQS-1510 | 1500x1000x800 | 1400 | 4 |
| PLGQS-1609 | 1600x900x800 | 1400 | 4 |
| PLGQS-1810 | 1800x1000x800 | 1400 | 4 |
| PLGQS-1812 | 1800x1200x800 | 1400 | 4 |
| PLGQS-2010 | 2000x1000x800 | 1400 | 4 |
| PLGQS-2012 | 2000x1200x800 | 1400 | 4 |
| PLGQS-2015 | 2000x1500x800 | 1400 | 4 |
| PLGQS-2412 | 2400x1200x800 | 1400 | 4 |
| PLGQS-2415 | 2400x1500x800 | 2000 | 4 |
| PLGQS-3010 | 3000x1000x800 | 2000 | 6 |
| PLGQS-3012 | 3000x1200x800 | 2000 | 6 |
| PLGQS-3015 | 3000x1500x800 | 2000 | 6 |
| PLGQS-3512 | 3500x1200x800 | 2000 | 6 |
| PLGQS-3515 | 3500x1500x800 | 2000 | 6 |
| PLGQS-4015 | 4000x1500x800 | 2500 | 8 |
| PLGQS-4215 | 4200x1500x800 | 2500 | 8 |
| PLGQS-4815 | 4800x1500x800 | 2500 | 8 |
| PLGQS-5415 | 5400x1500x800 | 2500 | 10 |
| PLGQS-6015 | 6000x1500x800 | 2500 | 10 |
Customization Options：
| Available Customization Options | Optional Configurations | Tailored Solutions Available |
|---|
| Non-Magnetic Customization Available |
| Two non-magnetic configurations: Non-magnetic tabletop only, or fully non-magnetic construction. The left image shows a fully non-magnetic precision air-floating vibration isolation optical platform (Model: PLGZQ-1815) |
| Supports Custom Dimensions |
| Various non-standard sizes and models can be customized upon request. The left image shows a 2.7 × 1.5 m damped vibration isolation optical platform. |

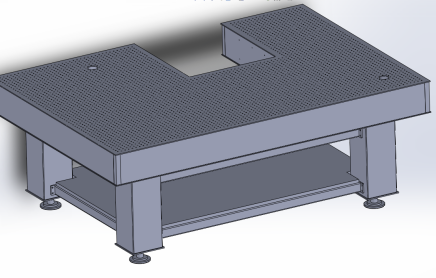

| Tailored Irregular Structure Design |
|
Supports custom designs for non-standard rectangular and irregular-shaped tabletops. |
Customizable positioning markings and scale lines available |
| Customizable positioning markings and scale lines available |
*All sizes and specifications can be customized upon request.
