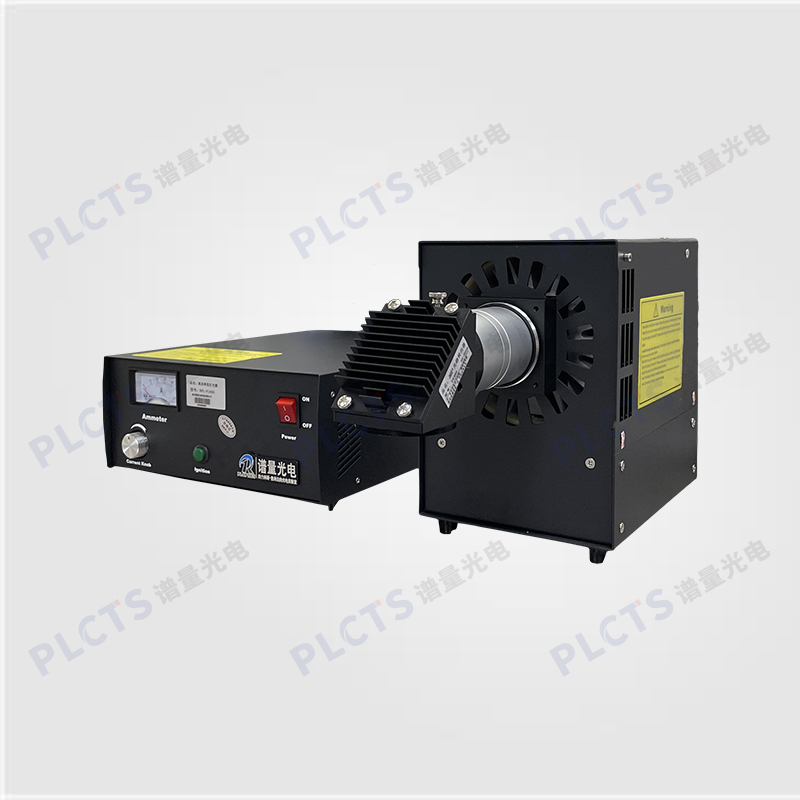

UV-enhanced Xenon Light Source

HPL Series UV-Enhanced Xenon Light Source is purpose-built for photocatalytic de

产品介绍

HPL Series UV-Enhanced Xenon Light Source is purpose-built for photocatalytic degradation experiments. It delivers broadband UV (200–400 nm), visible (400–800 nm) and IR (800–1500 nm) illumination, plus selectable monochromatic outputs (e.g. 254 nm, 313 nm, 365 nm, 450 nm, …, 700 nm).

Featuring an integrated monochromator and fully automated software, you can program precise time and wavelength outputs. The HPL Series pairs seamlessly with photochemical reactors, photoelectrochemical cells and supports complete data capture via GC, electrochemical workstations and power meters.

Key Features:

  • Adjustable Xenon Lamp Power for tailored irradiance

  • Secondary Filtering Structure for enhanced spectral purity

  • 360° Omnidirectional Illumination

  • Up to 50 W Total Optical Power

  • Selectable Spectral Bands & Specific Wavelengths

  • 24/7 Continuous Operation (requires attended monitoring)

  • Continuously Adjustable Spot Diameter

  • Optional Modules: photoelectrochemical cells, dark box, fiber optics & photochemical reactors

Technical Specifications:

ModelHPL-F300HPL-UV300
Input Power300W(180W-320W)300W(180W-320W)
Operating Current21A(10A-22A)21A(10A-22A)
Operating Voltage14V (13V-16V)14V (13V-16V)
Total Optical Output50W50W
UV Output (< 390 nm)2.6W6.6W
IR Output (> 770 nm)28.8W26.8W
Visible Output (390–770 nm)5000lm4500lm
Color Temperature5600K5050K
Lamp Life1000 hours1000 hours
Emission Range320nm-2500nm200nm-2500nm
Spot DiameterContinuously adjustableContinuously adjustable
Output FormatCollimated or fiberCollimated or fiber
Beam DivergenceAvg. 5°Avg. 5°
