Wavelength-Tunable Monochromatic Light Source

XGL Series Tunable Monochromatic Light Source pairs xenon, halogen-tungsten or d

在线咨询

产品介绍

XGL Series Tunable Monochromatic Light Source pairs xenon, halogen-tungsten or deuterium lamps with our WPL Series grating monochromator and filter-wheel accessories to form a fully tunable illumination system. With automated software control, it delivers time- and wavelength-programmed monochromatic output and allows adjustable spectral bandwidth via dual-slit tuning.

Key Features：

Continuously Adjustable Bandwidth for precise spectral control
Superior Source Stability with xenon lamp providing ≤ 0.5 % fluctuation
Optimized Optical Path Design for high light–utilization efficiency

Selectable Output Modes: free-space beam or fiber-coupled delivery
High System Integration ensuring a stable, compact, and portable setup
Fully Automated Software with programmable wavelength selection, step intervals, and delay timing

Technical Specifications：

Parameter	Specification
Spectral Range	200–2500 nm (depending on light source)
Minimum Bandwidth	<1nm
Output Intensity	Adjustable
System Stability	±1%
Output Mode	Free-space beam or fiber-coupled
Automation Software	Included
Dimensions (L × W × H)	~600mm×450mm×500mm

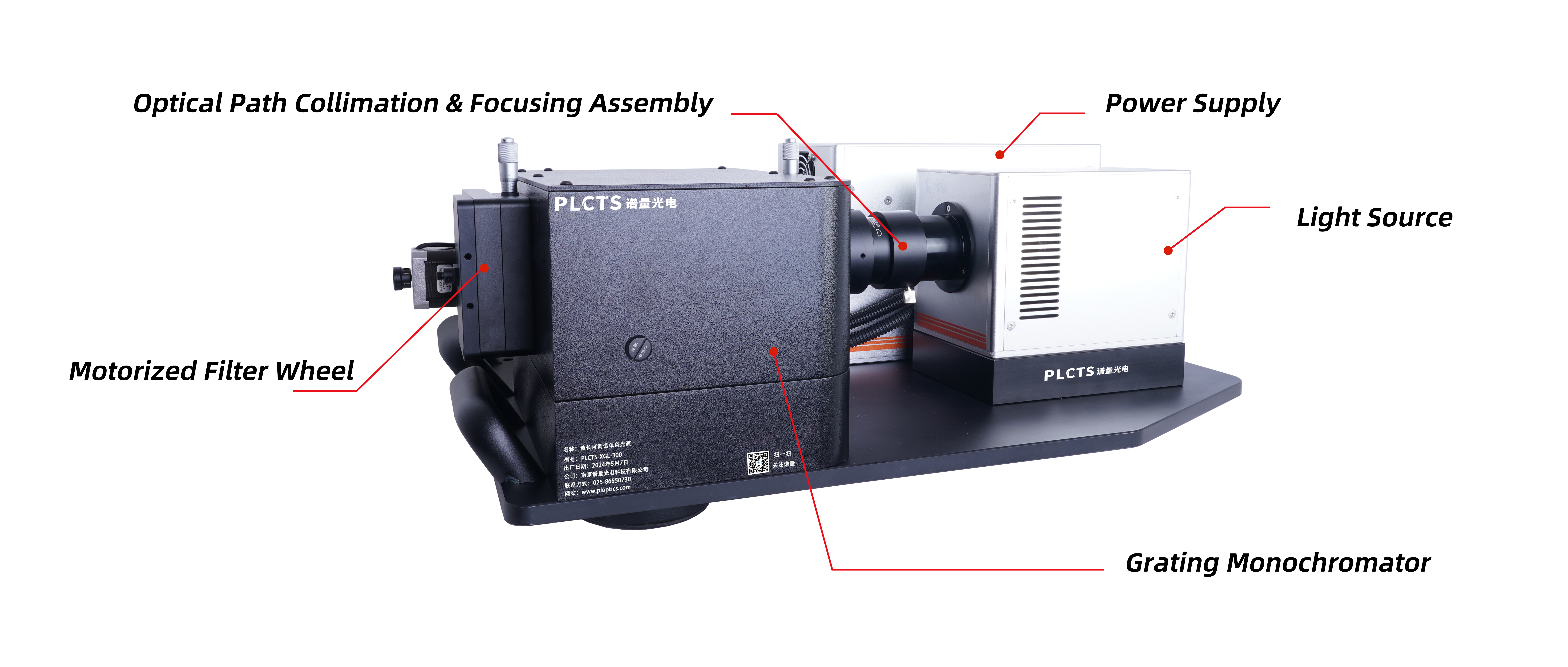

System Modules：

单色光源模块介绍 - English.jpg

Optional Accessories：

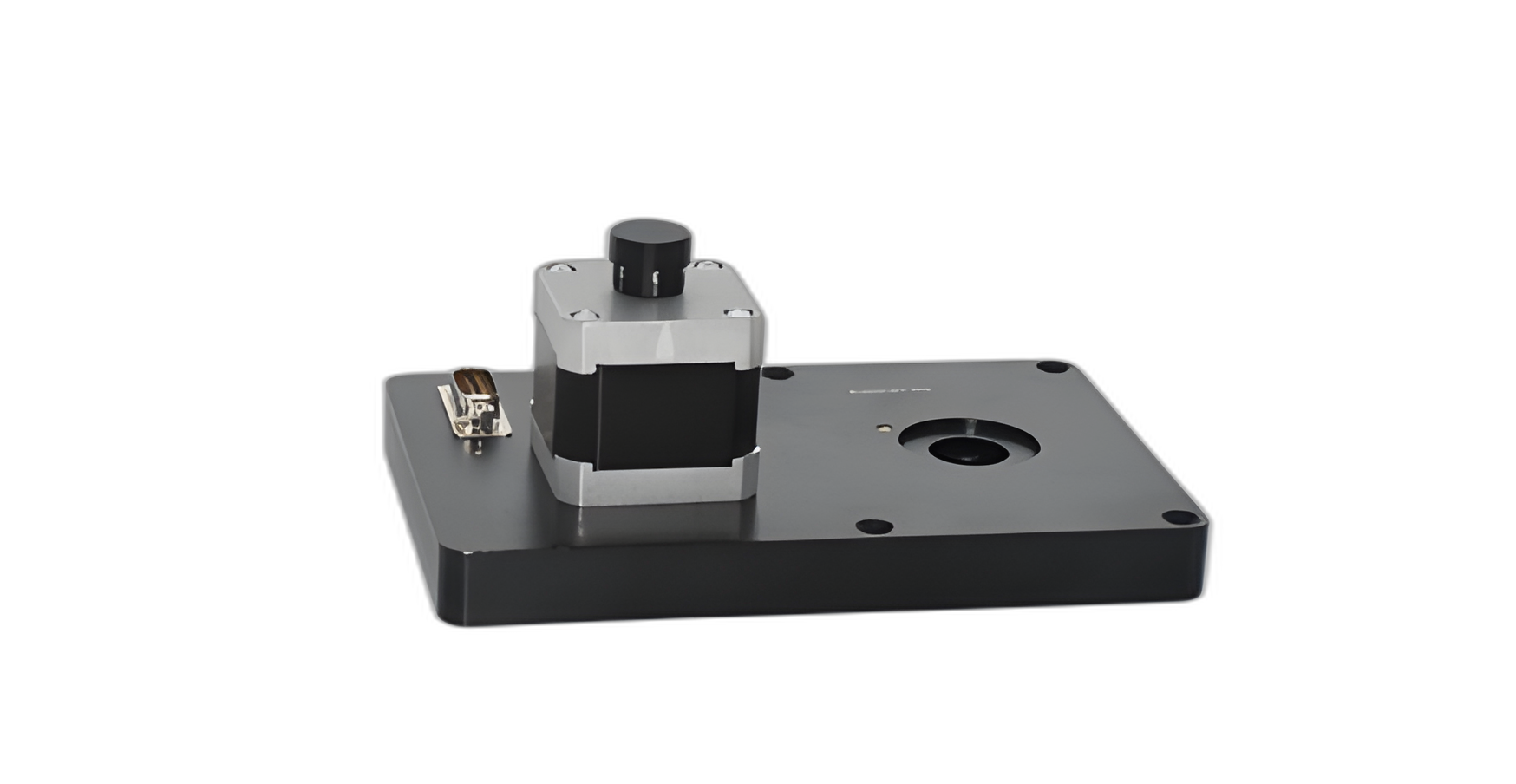

Motorized Filter Wheel：

● Six Slots: Slot 1 empty; Slots 2–6 accept Ø18 mm × 2 mm filters (Ø17 mm clear aperture) for order-sorting
● Software-Integrated: Auto-zeroing and filter switching during scans; manual selection available when idle

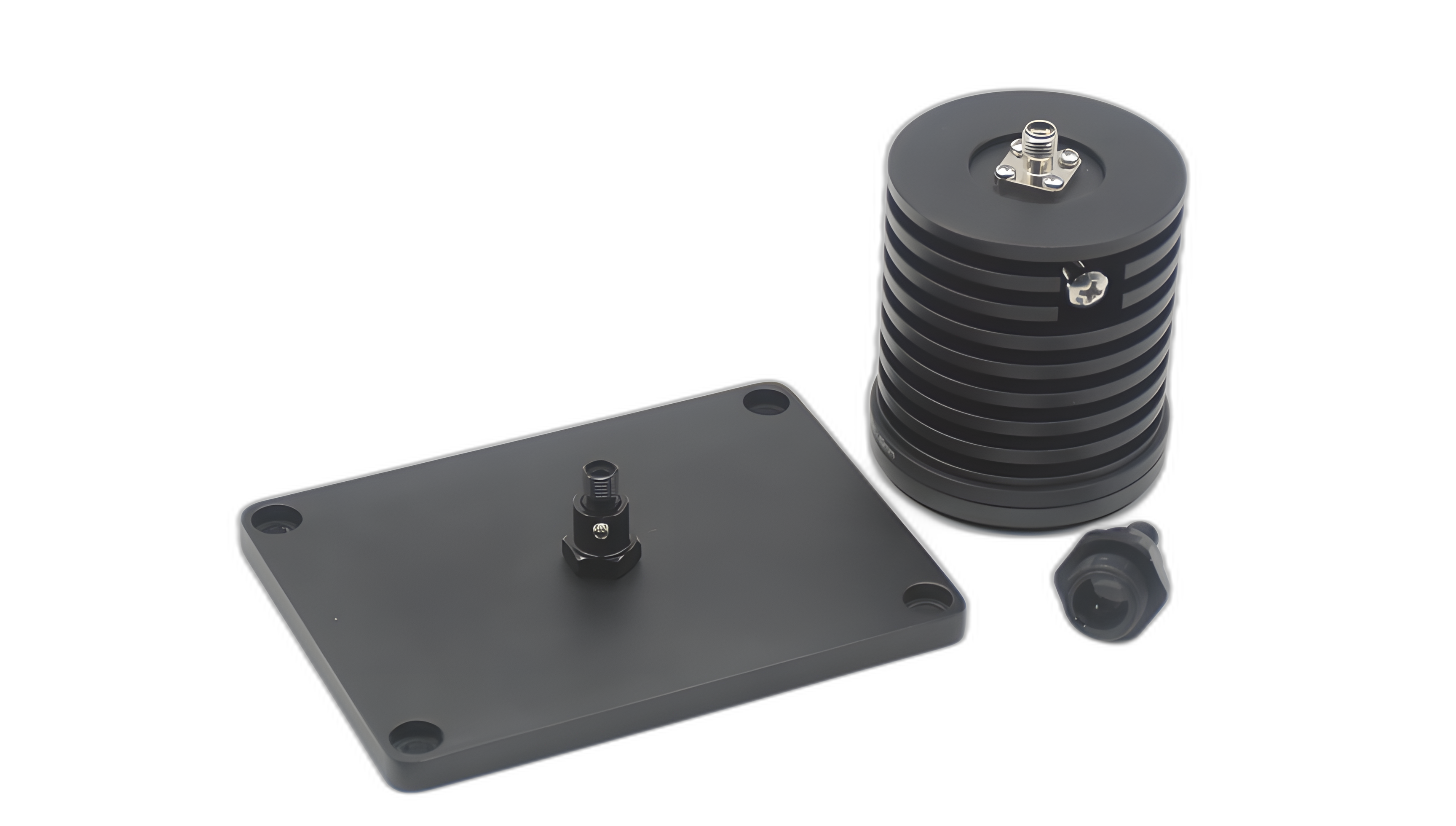

Collimation & Focusing Assembly：

● UV Fused-Silica Lens: Imported for high coupling efficiency
● Seamless WPL Monochromator Integration: Optimized optical path
● Standard SMA 905 Fiber Interface

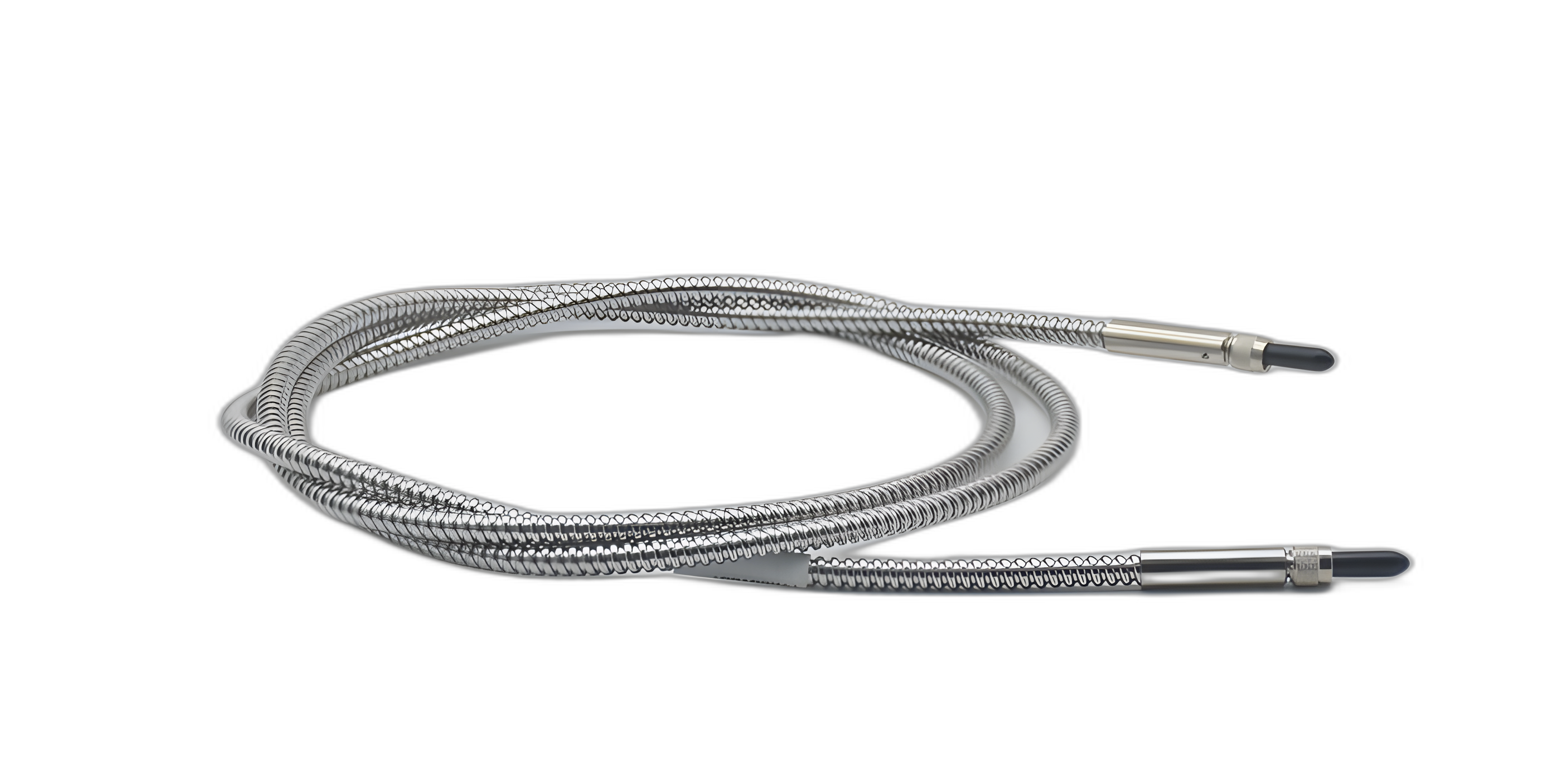

UV Fused-Silica Fiber：

● Spectral Range: 200–2500 nm
● Core Diameter: Ø1 mm (custom sizes available)
● Length: 1.5 m, stainless-steel jacket for durability

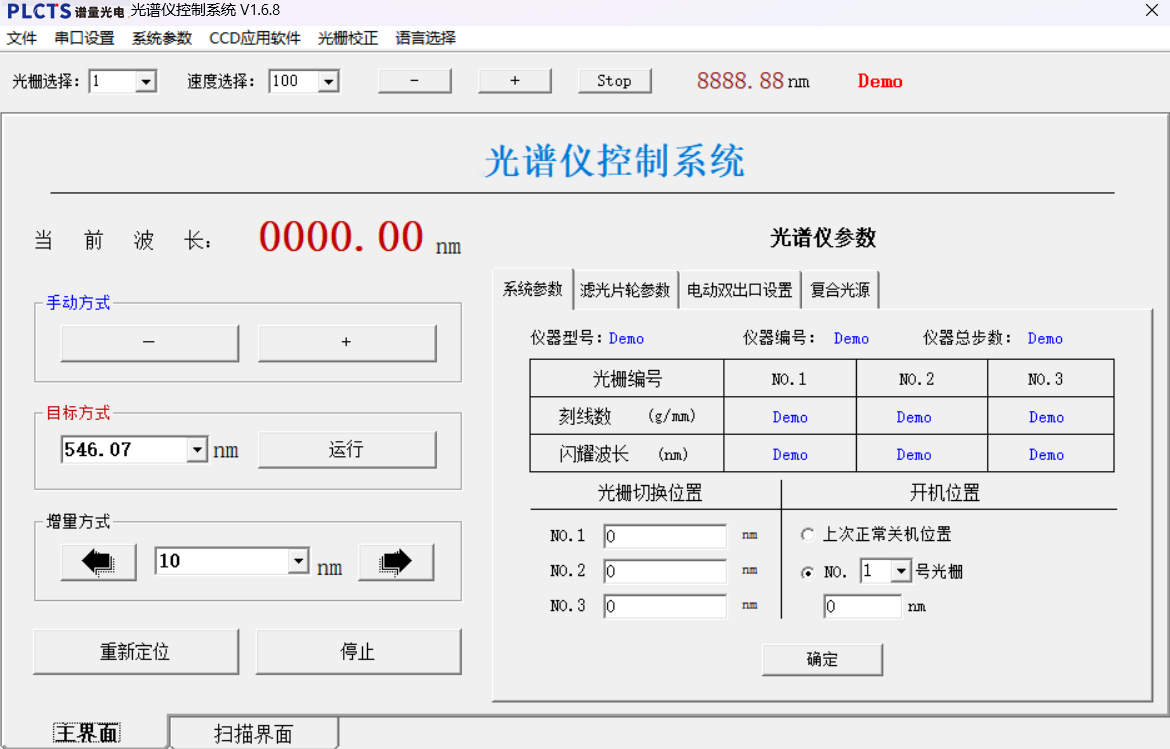

Software Interface：


Test Reports：

1. Monochromatic Purity Test

(Tested across 350–1100 nm; only representative wavelengths shown. Contact us for the full report.)

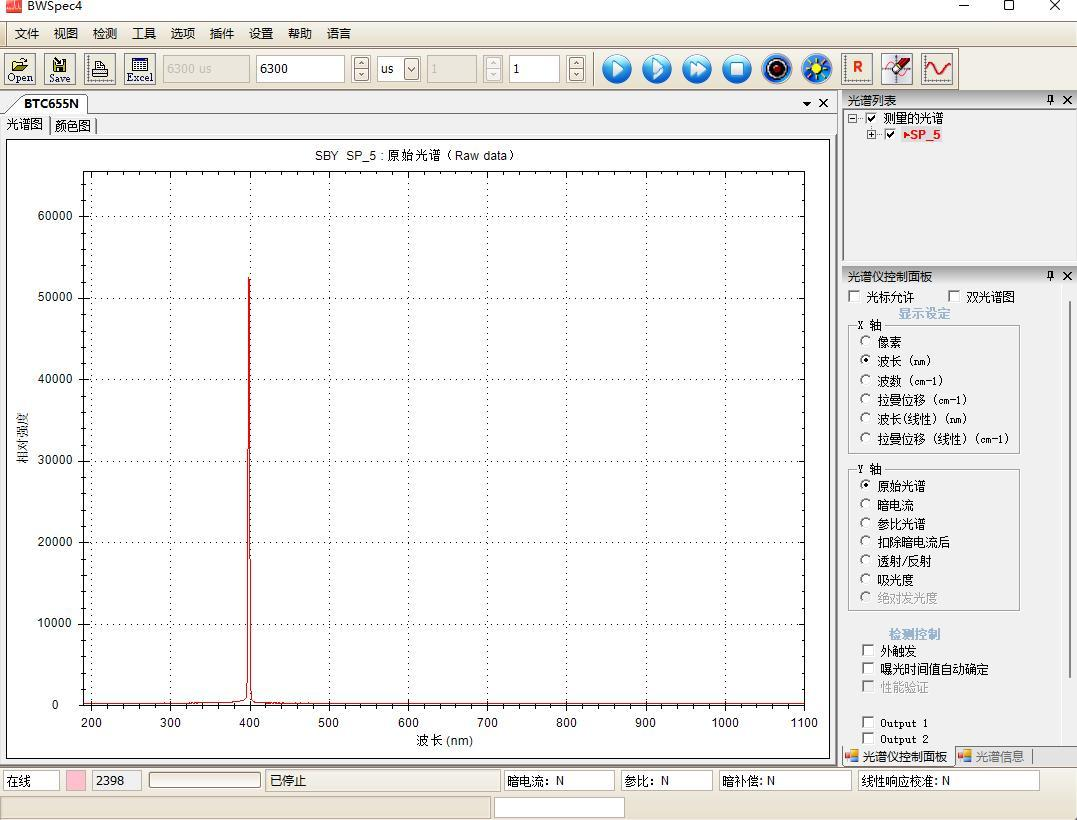

Monochromator set to 400 nm↓

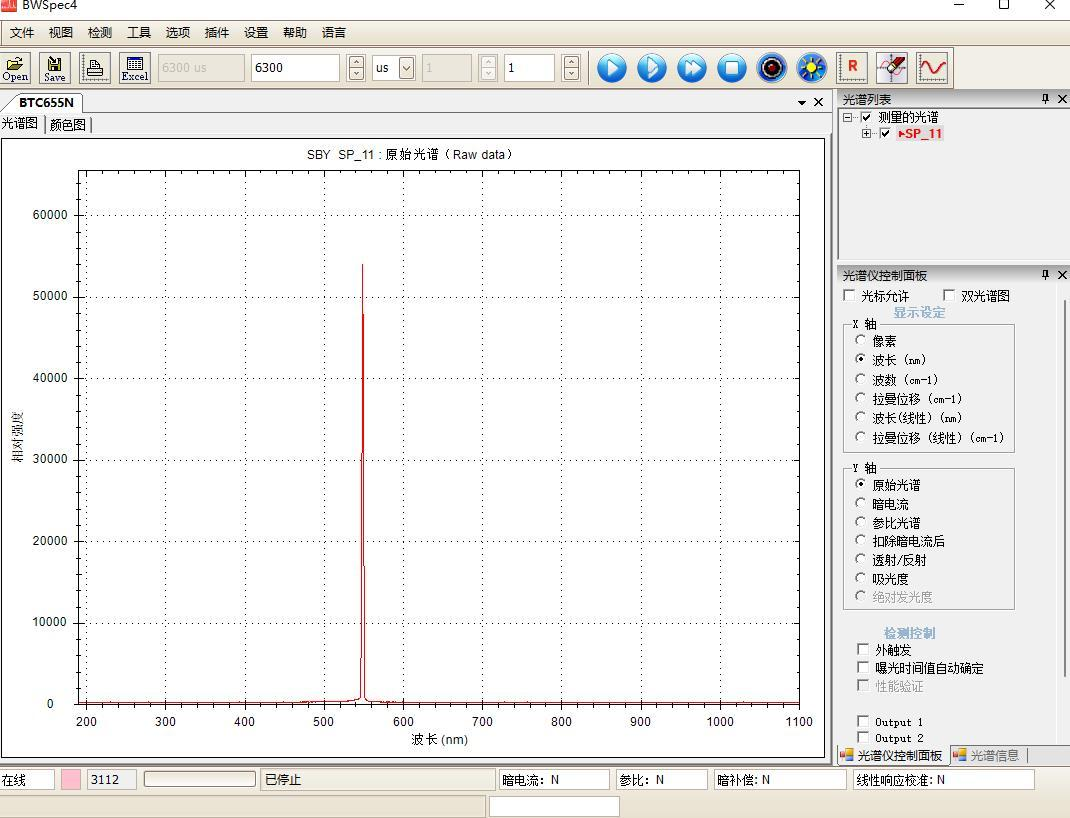

Monochromator set to 550 nm↓

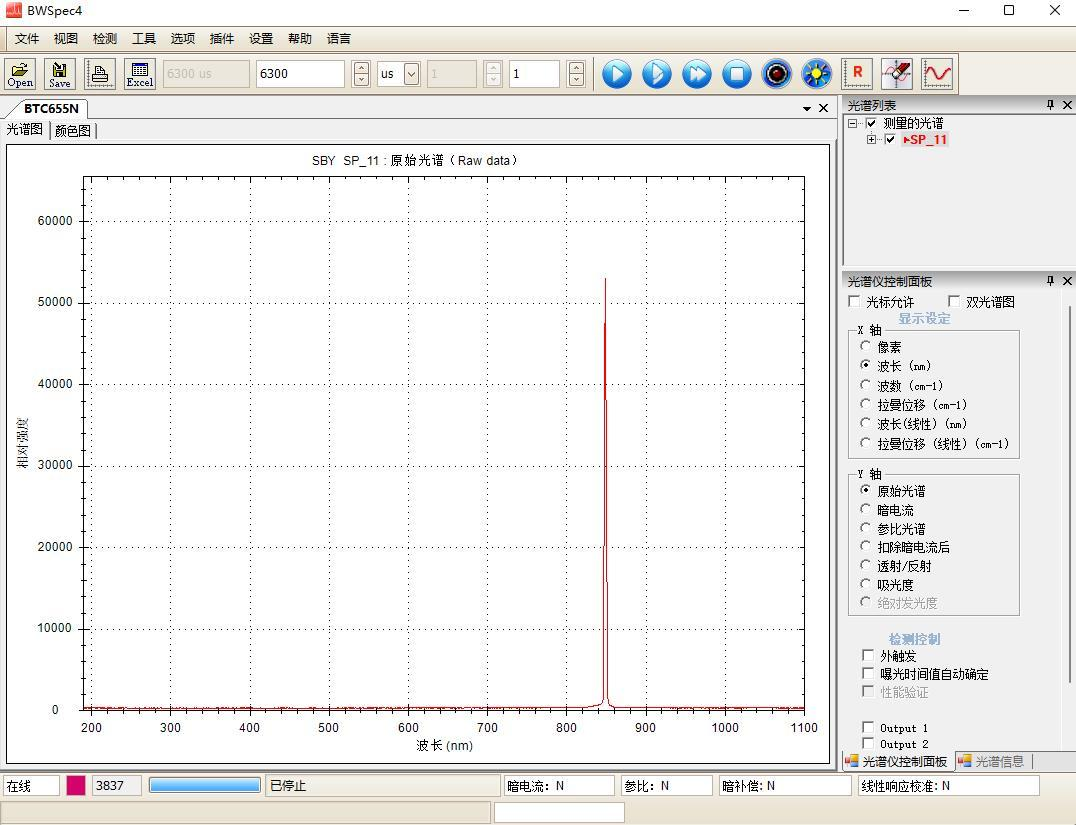

Monochromator set to 850 nm↓


2. Monochromatic Maximum Power Test
(Tested across 350–1100 nm; only representative wavelengths are shown. For the full report, please contact our support team.)

Monochromator set to 500 nm (Maximum Power)↓
