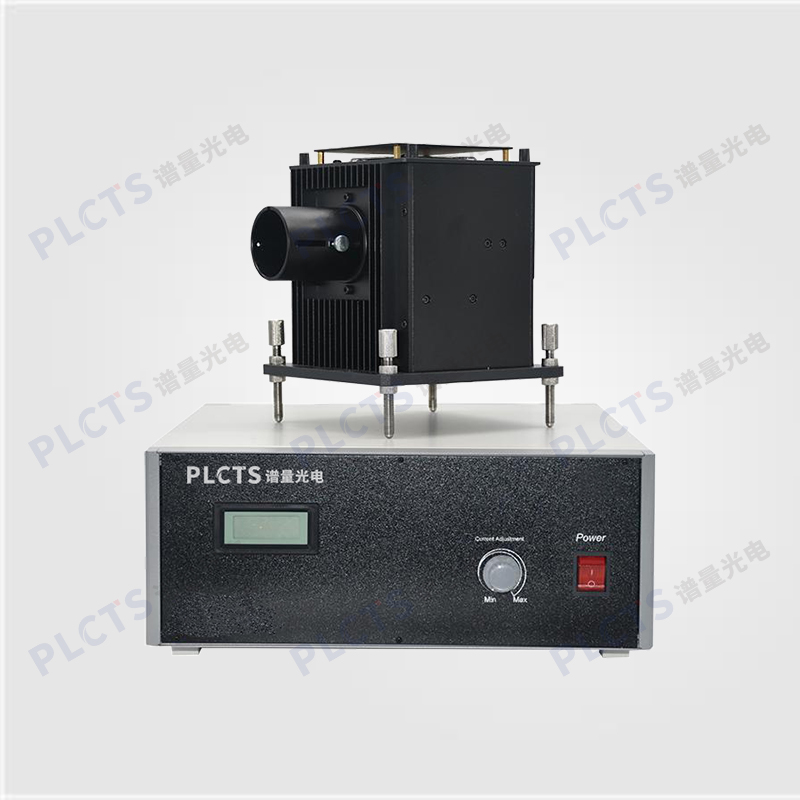

HN Series scientific-grade halogen–tungsten light source uses selectable-power bulbs for illumination, offering greater stability than arc lamps and emitting no strong UV or ozone. Its smooth spectral output makes it ideal for spectroscopy and related applications.
- Manual Light Switch for easy operation
- 360° Optical-Path Rotator for flexible beam direction
- Fully Integrated, Plug-and-Play design
- Adjustable Intensity with High Stability
- Broad-Spectrum Visible–NIR Source at Low–Medium Power
- German OSRAM-branded Imported Lamp & Socket
Technical Specifications：
| Parameter | Specification |
|---|
| Lamp Power | 50W、100W、250W |
| Spectral Range | 300-2500nm |
| Collimated Beam Diameter | ~38mm |
| Lamp Life | 300h |
| F/# | F/4 |
| Intensity Stability | 0.1% |
| Focusing Lens | Dual fused-silica lenses |
| Current Adjustment | Manual fine-tuning |
| Output Mode | Free-space beam |
| Cooling Method | Air-cooled |
| Operating Temperature | 5-40℃ |
| Operating Humidity | <80% |
