LED Solar Simulator

Steady-State LED Solar Simulator Series delivers a superior spectral match to na

在线咨询

产品介绍

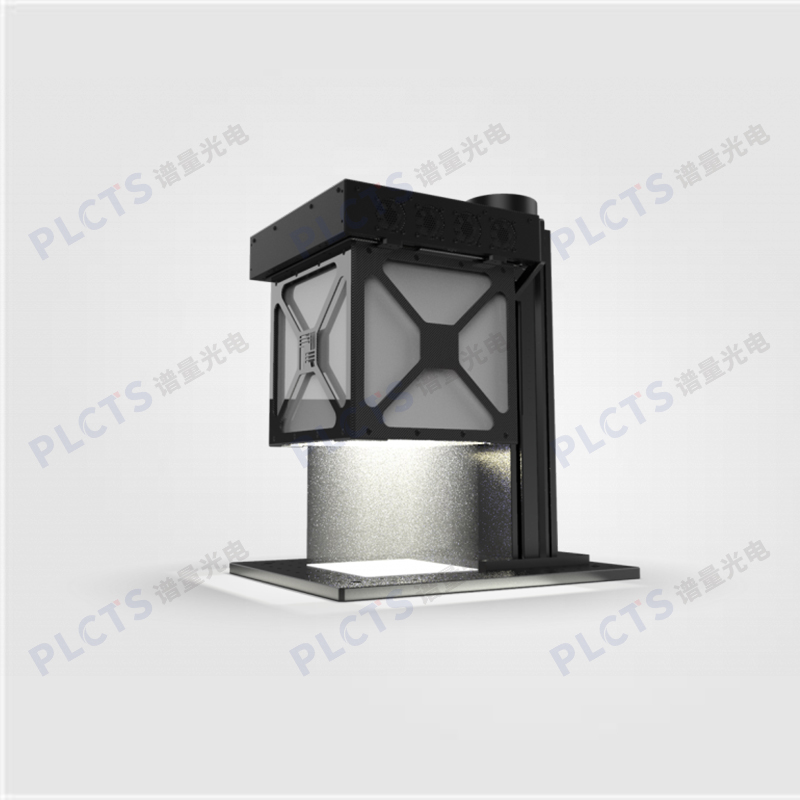

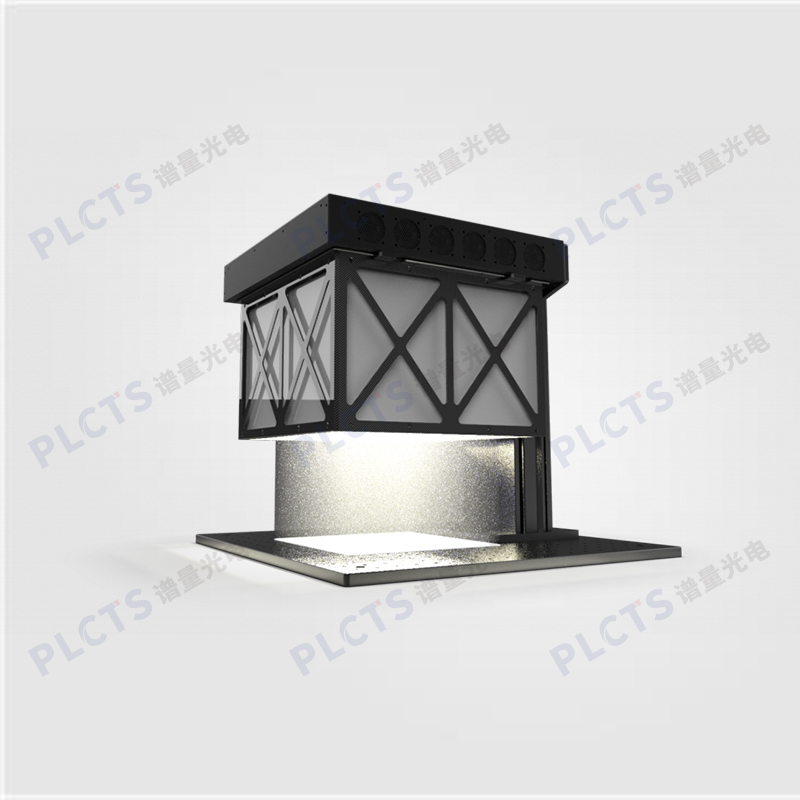

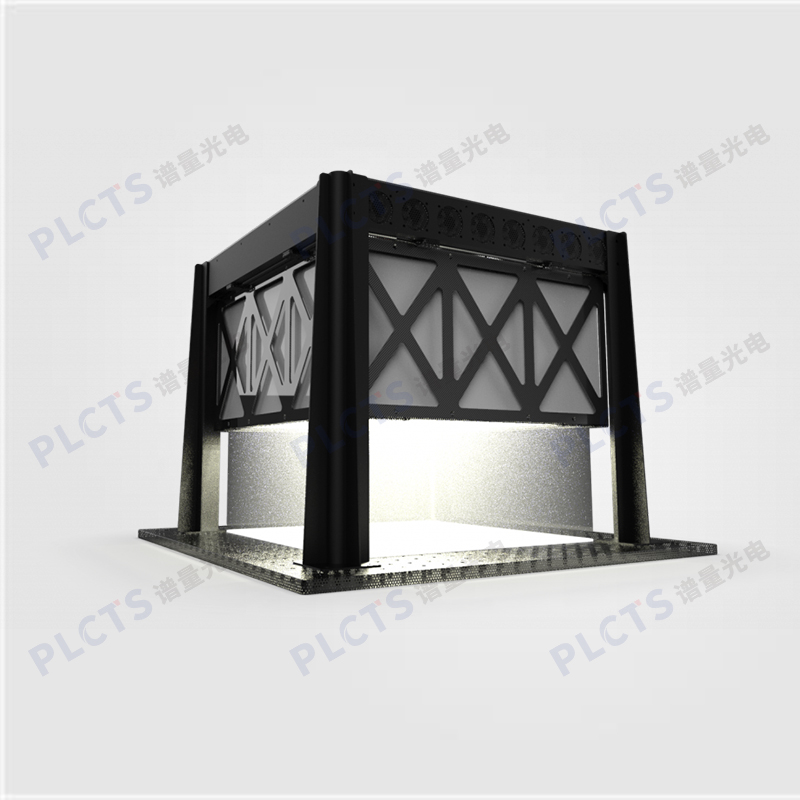

Steady-State LED Solar Simulator Series delivers a superior spectral match to natural sunlight—outperforming xenon-lamp systems—and is certified to AM1.5 IEC 60904-9:2007/2020 Class 3A (China NIM), with a lifetime > 10 000 h (saving 10× on cost & downtime), long-term stability for extended testing campaigns, ideal for silicon, tandem, perovskite, and organic solar cells, photocatalysis & photo-electrolysis, and photochemical reaction setups.

Product Advantages：

● Class AAA solar spectrum matching AM1.5G (350–1100 nm)
● A-Level Uniformity over large areas: up to 100 mm (PL-IS200), 200 mm (PL-IS300) or 300 mm (PL-IS400) edge length
● Long Lifetime: > 10 000 h with < 2 % output drift over lifespan
● Adjustable Irradiance with upward/downward emission modes for versatile sample testing
● Customizable Illumination Area and Extended Spectral Range (270–1600 nm) available upon request

Specifications：

Parameter	PL-IS300	PL-IS400
Spectral Range(nm)	350-1100	300-1100
Spectral Match	A	A
Spatial Uniformity	A /<2%	A /<2%
Temporal Stability	A /<2%	A /<2%
Spot Size (Ø)（㎜）	300×300	400×400
Effective Area (3A Standard)	200×200	300×300
Irradiance Range(100 mW/cm²)	0–1.2 Sun	0–1.2 Sun
Working Distance	1-2cm	1-2cm
Lifetime	>10000	>10000
Dimensions (W×D×H)（㎜）	400×600×380	500×600×435
Spectral Tuning	No	No
Operating Voltage	220V	220V
Warm-Up Time	~ 10 min	~ 10 min

Spectral Match Chart：
