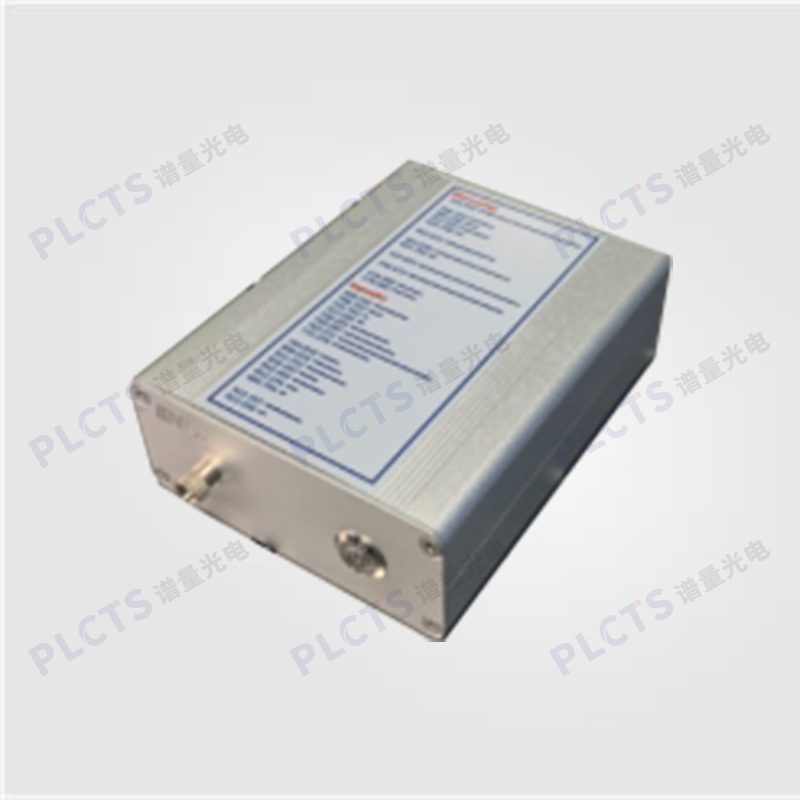

Mercury–Argon Wavelength Calibration Light Source

MAC Series Mercury–Argon Wavelength Calibration Light Source is purpose-built fo

产品介绍

MAC Series Mercury–Argon Wavelength Calibration Light Source is purpose-built for precise wavelength calibration and spectral line referencing of spectrometers. Covering 253–1700 nm, its housing features built-in Hg–Ar emission lines for fast, reliable wavelength correction. Boasting excellent stability, long lifetime, high cost-effectiveness, and user-friendly operation, it ensures accurate, repeatable calibration every time.

Key Features:

  • ● Broad Spectral Coverage: UV to Near-IR

  • ● Flexible Fiber Interface: SMA905 or FC

  • ● Long Lifetime: > 4000 h

  • ● Built-in Hg–Ar Reference Lines for fast, reliable calibration

  • ● User-Friendly Operation with simple plug-and-play setup

Applications:

  • ● Optical Instrument Calibration: Wavelength referencing for spectrometers, spectrophotometers, and microscopes

  • ● Environmental Monitoring: Calibration of air-pollutant detection instruments

  • ● Biomedical: Excitation-source calibration for fluorescence microscopes and flow cytometers

  • ● Industrial Inspection: Optical calibration for semiconductor, LED, and other production-line equipment

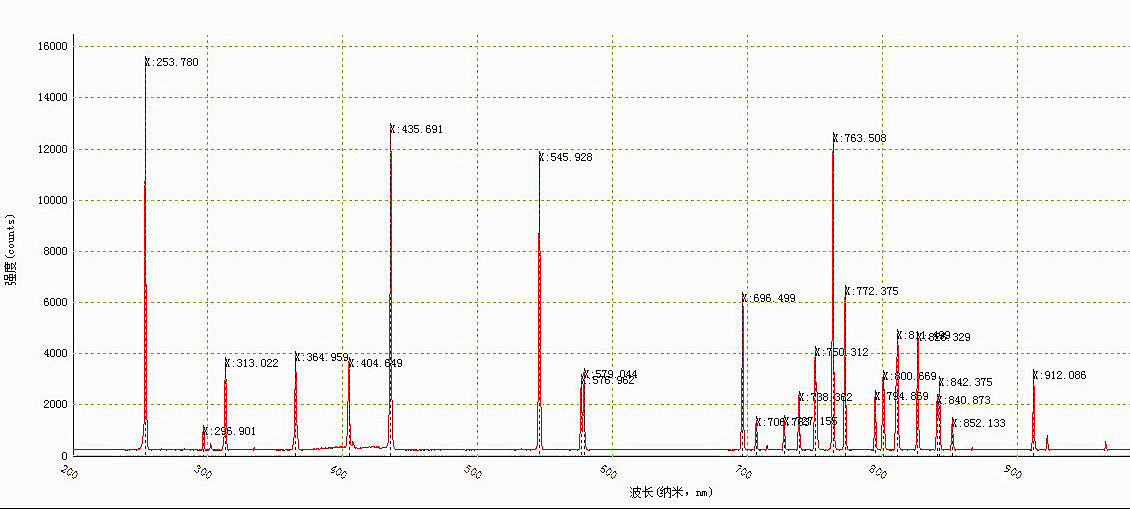

Spectral Curve:


Technical Specification:

ParameterMAC-15
Spectral Range253–1700nm
Operating VoltageAC220V
Power Consumption15mA@220V
Lamp Life>4000h
Warm-up Time<1min
Dimensions120.5mm*88mm*38mm
Fiber InterfaceSMA905/FC(optional)

For detailed product information, please visit our Official Store at www.plctss.com and navigate to the Wavelength Calibration Light Source section.
