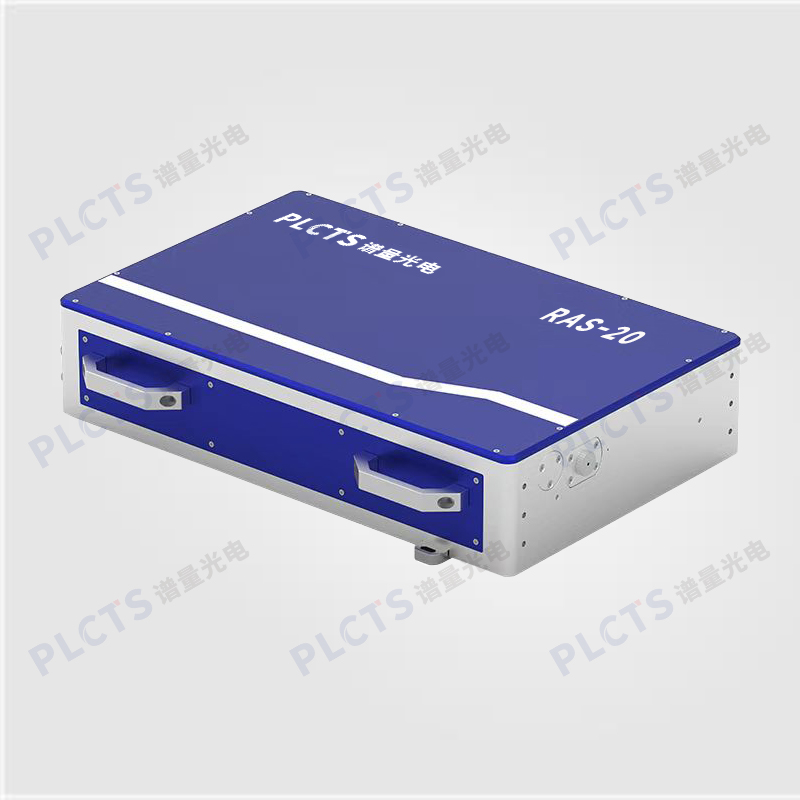

1030 nm High-Energy Femtosecond Laser

PL Optics‘ RAS Series offers high-energy femtosecond lasers with <600fs pulse width for precision micromachining, ultrafast spectroscopy, and nonlinear optics.

在线咨询

产品介绍

RAS Series High-Energy Femtosecond Laser is our next-generation, high-power, high-energy system built around a proprietary all-fiber femtosecond seed source for exceptional stability, featuring Advanced Solid-State Amplification delivering > 800 μJ per pulse at < 600 fs pulse duration, engineered for continuous 24/7 operation, with a compact, robust design for easy integration and durable performance under demanding conditions, and a wide application spectrum from fundamental science to precision industrial micromachining.

Technical Advantages：

Solid-state reliability for high-energy output
Adjustable pulse width
Burst Mode with single-pulse editing and PSO support
Optional dual/tri-frequency modules and three-stage output
Integrated electro-optical design

Applications：

Ultrafast spectroscopy
Nonlinear optics
Microfabrication
Two-photon imaging
Optical frequency combs

Model	RAS-20	RAS-40	RAS-100	RAS-U
Center Wavelength	1030±5nm
Average Power	20W	40W	100W	>15W@200KHz
Pulse Width	<600fs–10ps tunable		<600fs@1MHz
Repetition Rate	Single-pulse – 1 MHz (tunable)
Single-Pulse Energy	400μJ@50KHz	800μJ@50KHz	250μJ@400KHz	>75μJ@200KHz
Output Mode	Free-space output
Extinction Ratio	>20dB
Beam-Pointing Stability	<25μrad
Power Stability (rms)	<0.5%rms	<1%rms		<0.5%rms
Beam Quality (M²)	<1.3
Optional Accessories	SHG (515 nm)/ THG (355 nm) / 3ω（All in one）			/
Dimensions (L × W × H)	806×500×156mm	745×520×135mm	745×520×135mm	655×392×129mm

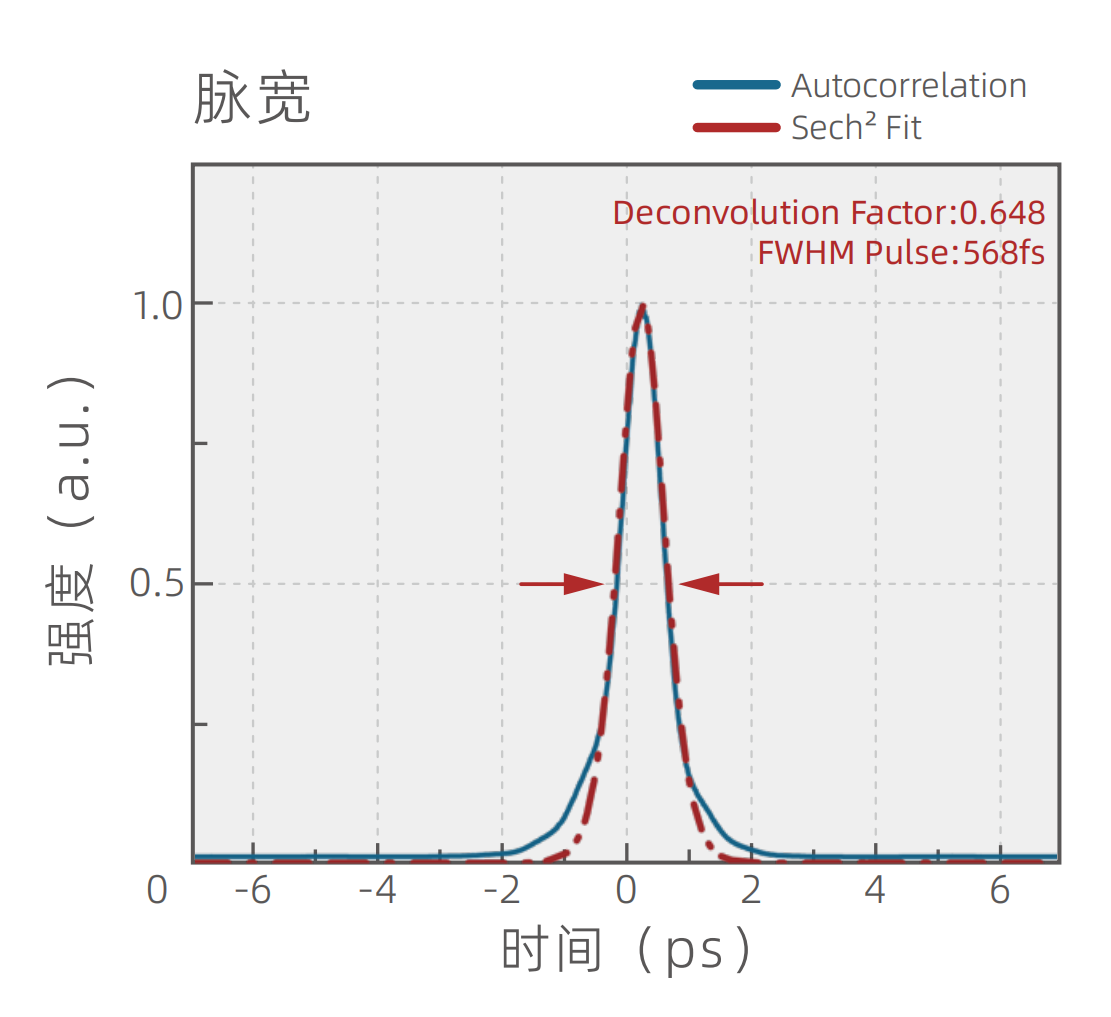

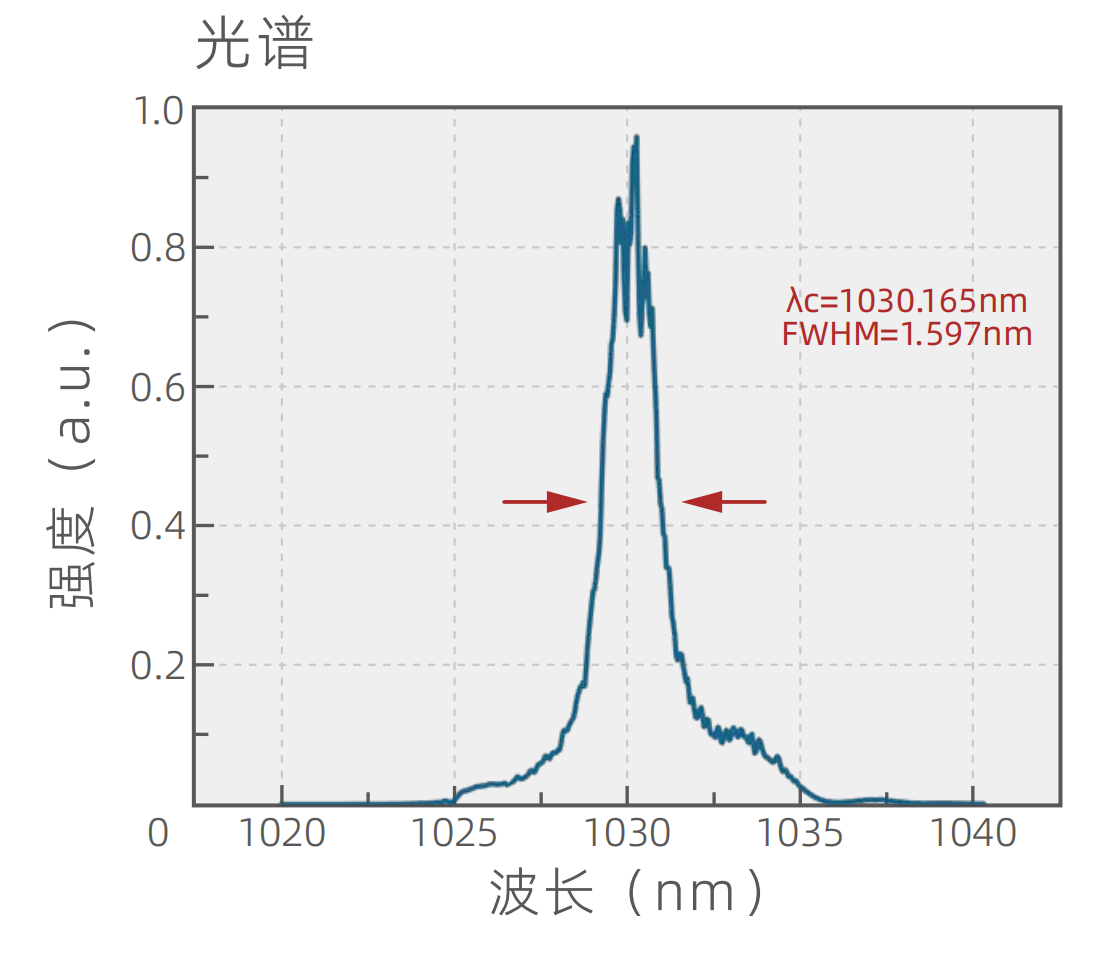

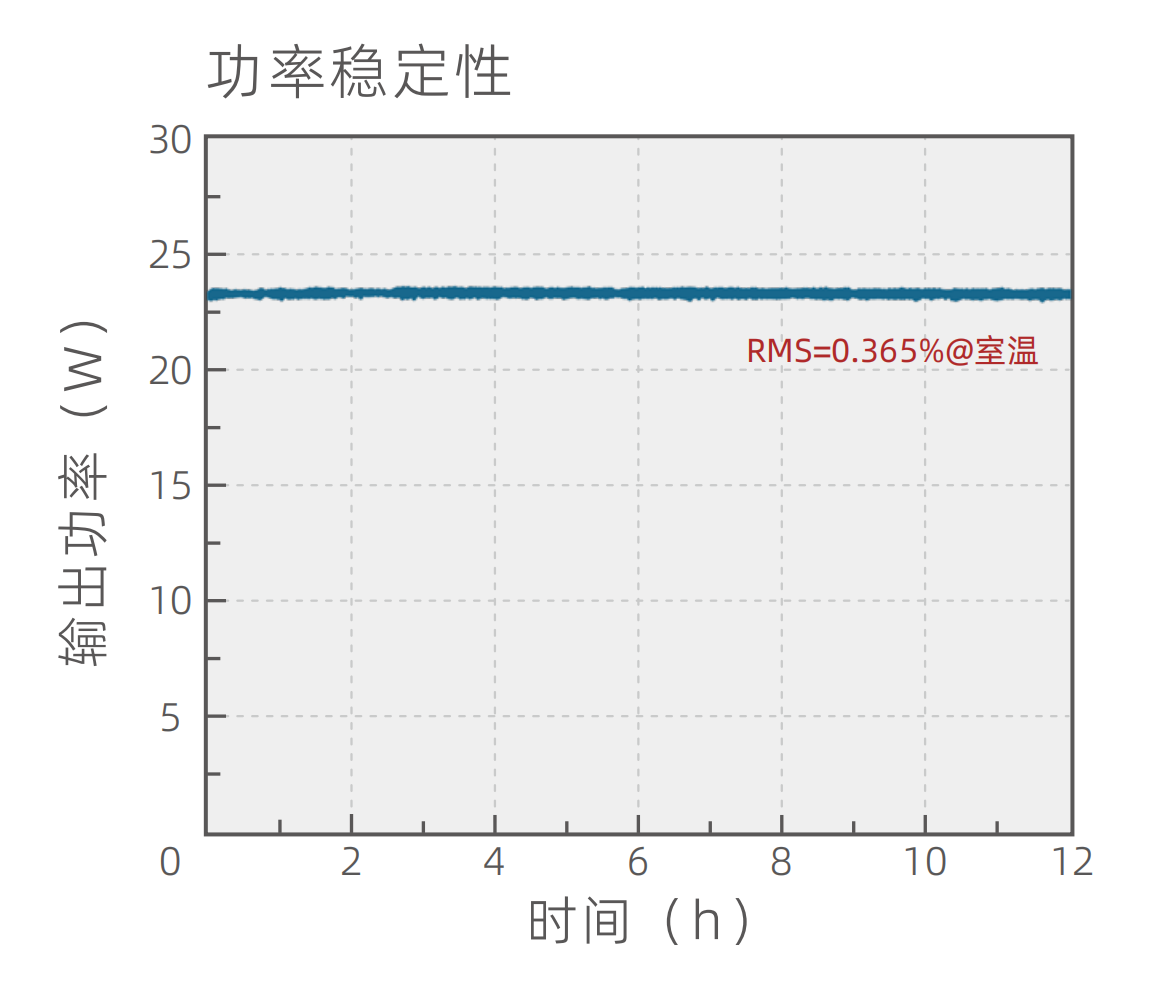

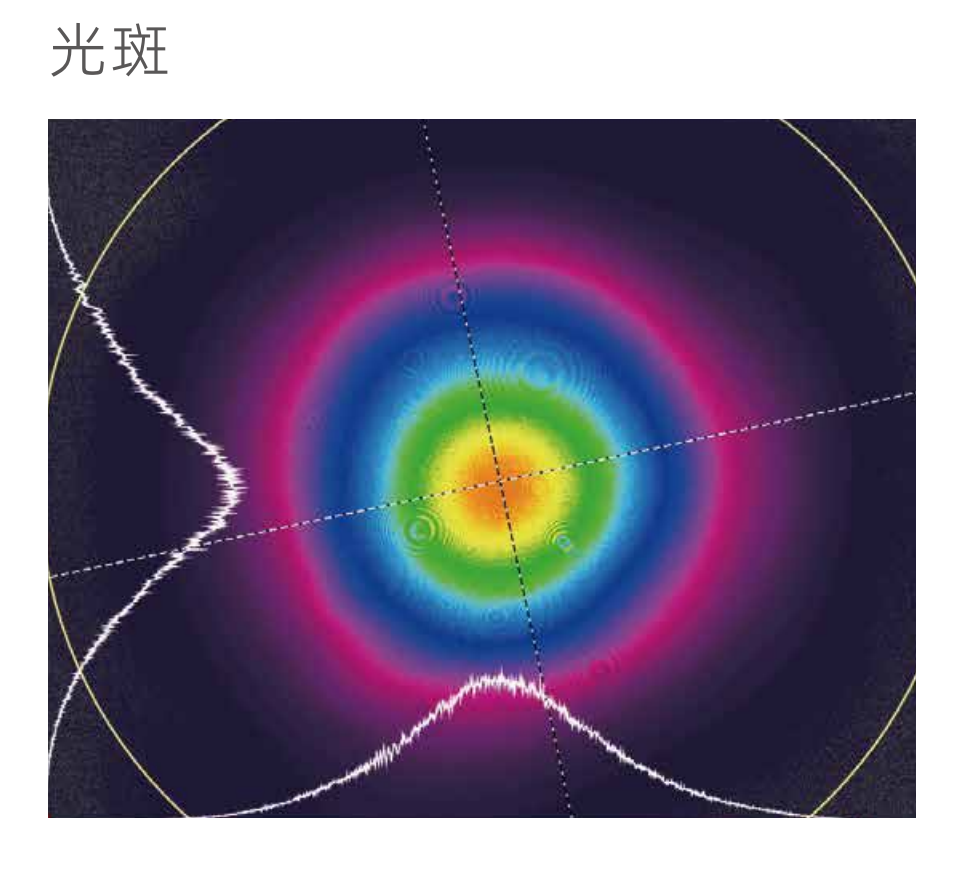

Test Data：





RAS Series femtosecond lasers are available with single-wavelength outputs (1064 nm, 532 nm or 355 nm) or three-wavelength output, and can be customized to your exact requirements — contact us for details.

When paired with our OPA parametric amplifier modules, the RAS series delivers continuously tunable output from the UV to the IR.
