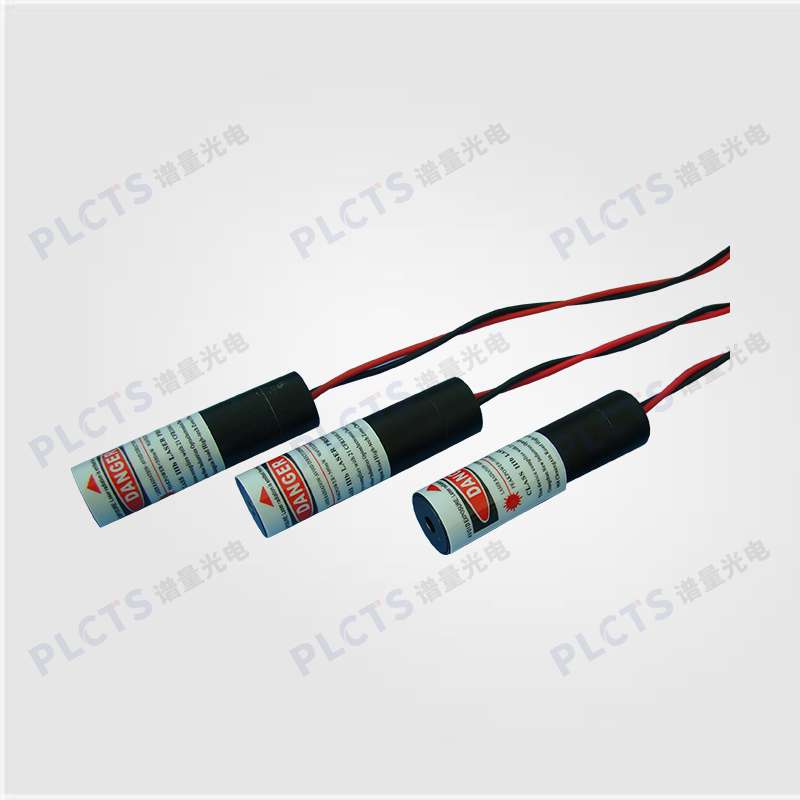

The PLCTS PM12 Series Laser Modules are compact, low-power semiconductor lasers that pair a laser-diode head with a matching driver. They cover multiple wavelengths from 450 nm to 1064 nm and can be customized for wavelength, footprint, and output power on request.
Key Features:
● Miniature design, high output power, long lifetime
● Output power ≥ 5 mW
● Multiple center wavelengths available
● Spot shapes: circular or elliptical
● Excellent cost-performance, plug-and-play operation
● Ideal for collimation, laser therapy, scientific research, optical tools, and more
Model Selection:
| Model | Operating Wavelength | Output Power | Beam Diameter (1/e²) | Transverse Mode | Operating Mode | Dimensions | Divergence |
|---|
| PM12-405 | 405 ± 5 nm | ≥ 5 mW | ~3.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 0.5 mrad |
| PM12-445 | 445 ± 10 nm | ≥ 5 mW | ~3.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 1 mrad |
| PM12-520 | 520 ± 10 nm | ≥ 5 mW | ~4 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 1 mrad |
| PM12-532 | 532 ± 1 nm | ≥ 5 mW | ~1.5 mm (circular) | Near TEM00 | CW | Φ12 × 35 mm² | < 1.5 mrad |
| PM12-635 | 635 ± 10 nm | ≥ 5 mW | ~3.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 1.5 mrad |
| PM12-785 | 785 ± 10 nm | ≥ 5 mW | ~3.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 1 mrad |
| PM12-808 | 808 ± 10 nm | ≥ 5 mW | ~3.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 50 mm² | < 10 mrad |
| PM12-1064 | 1064 ± 1 nm | ≥ 5 mW | ~1.5 mm (elliptical) | Near TEM00 | CW | Φ12 × 40 mm² | < 1.5 mrad |
