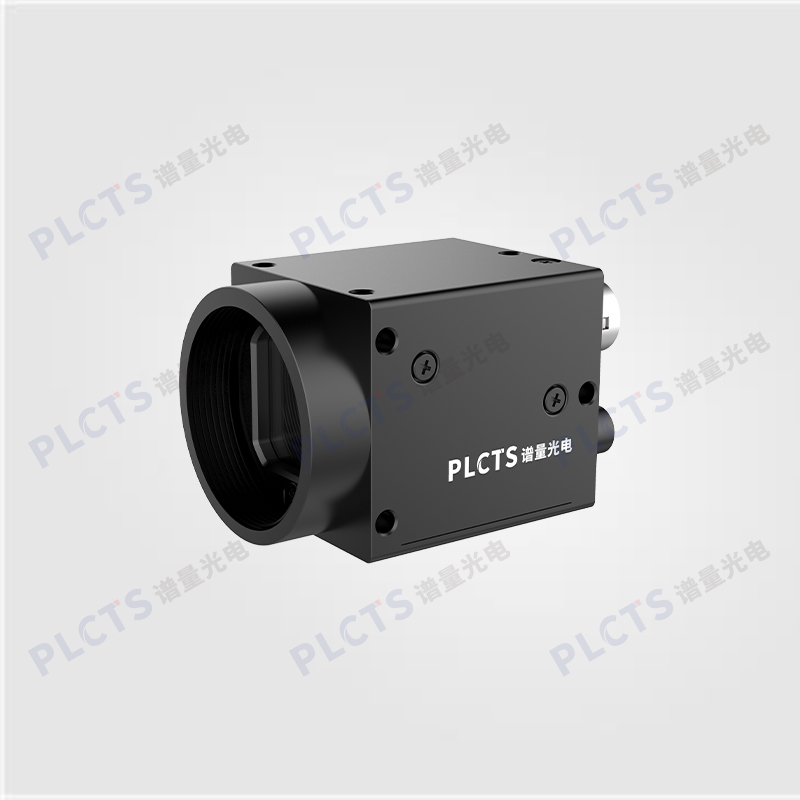

Product Appearance
Technical Advantages
● Programmable I/O built into the camera
● Dual USB3.0 outputs, twice the original transfer speed
● Multiple cameras on one PC run stably—no disconnects or dropped frames
● Supports PC-Linux and ARM-Linux, easy integration into embedded systems
● External trigger for flash synchronization
● 8-bit to 12-bit raw data output
● Fully compatible with GigE SDK—drop-in replacement
● Supports Vision protocols, seamlessly works with Halcon, VisionPro, LabVIEW, etc.
Product Selection
| Product Model | Imaging Color | Resolution | Pixel Size | Sensor Size | Exposure Time | Frame Rate | Shutter Type |
|---|
| KDR-130-241U3C | | 1280×1024 | 4 μm × 4 μm | 1/2.7″ | 0.004–32.4 ms | 241.5 fps | Global Shutter |
| KDR-130-241U3M | | 1280×1024 | 4 μm × 4 μm | 1/2.7″ | 0.004–32.4 ms | 241.5 fps | Global Shutter |
| KDR-230-40U3C | | 1920×1200 | 5.86 μm × 5.86 μm | 1/1.2″ | 0.0201–42112.8 ms | 40 fps | Global Shutter |
| KDR-230-40U3M | | 1920×1200 | 5.86 μm × 5.86 μm | 1/1.2″ | 0.0201–42112.8 ms | 40 fps | Global Shutter |
| KDR-300-55U3C | | 2048×1536 | 3.45 μm × 3.45 μm | 1/1.8″ | 0.0114–11966.6 ms | 55.75 fps | Global Shutter |
| KDR-300-55U3M | | 2048×1536 | 3.45 μm × 3.45 μm | 1/1.8″ | 0.0114–11966.6 ms | 55.75 fps | Global Shutter |
| KDR-500-40U3C | | 2448×2048 | 3.45 μm × 3.45 μm | 2/3″ | 0.0118–12377.1 ms | 40.5 fps | Global Shutter |
| KDR-500-40U3M | | 2448×2048 | 3.45 μm × 3.45 μm | 2/3″ | 0.0118–12377.1 ms | 40.5 fps | Global Shutter |
| KDR-1200-32U3C | | 4000×3000 | 1.85 μm × 1.85 μm | 1/1.7″ | 0.0102–2665.1 ms | 32 fps | Rolling Shutter |
| KDR-1200-32U3M | | 4000×3000 | 1.85 μm × 1.85 μm | 1/1.7″ | 0.0102–2665.1 ms | 32 fps | Rolling Shutter |
| KDR-1600-45U3C | | 4096×4096 | 3.5 μm × 3.5 μm | 4/3″ | 0.0054–90099.9 ms | 45 fps | Global Shutter |
| KDR-1600-45U3M | | 4096×4096 | 3.5 μm × 3.5 μm | 4/3″ | 0.0054–90099.9 ms | 45 fps | Global Shutter |
| KDR-2000-19U3C | | 5488×3672 | 2.4 μm × 2.4 μm | 1″ | 0.0138–3608.7 ms | 19.5 fps | Rolling Shutter |
| KDR-2000-19U3M | | 5488×3672 | 2.4 μm × 2.4 μm | 1″ | 0.0138–3608.7 ms | 19.5 fps | Rolling Shutter |
For full specifications or to place an order, visit our store: USB3.0 CMOS Camera
