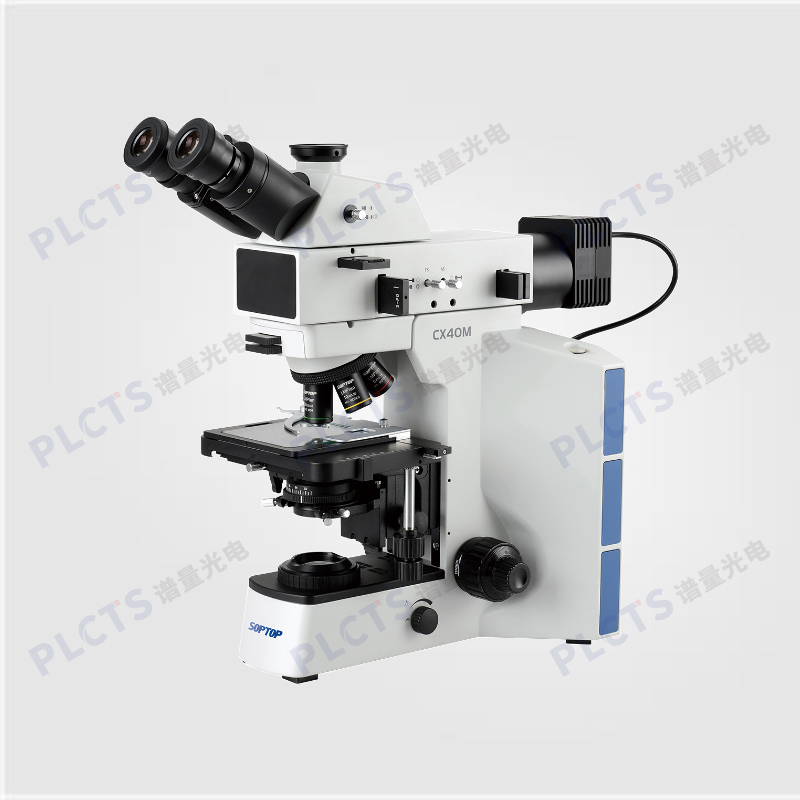

CX40M Metallurgical Microscope features an infinity-corrected optical system and a reflected Köhler illumination design with anti-reflection structures to eliminate stray reflections, delivering clearer imaging and higher contrast.
The CX40M offers a 30° inclined observation tube for optimal comfort, with adjustable interpupillary distance (54–75 mm) and diopter range (±5 dpt). With its excellent imaging performance and ergonomic design, it delivers a high-value solution for metallurgical analysis and industrial inspection.
Technical Specifications:
| Parameter | Specification |
|---|
| Optical System | Infinity-corrected, chromatic aberration–corrected |
| Observation Tube | 30° inclined trinocular, interpupillary 54–75 mm, diopter ±5 dpt; beam splitting R:T = 100:0 or 50:50 |
| Eyepieces | - PL10×22 mm, high-eye-point, wide-field, with reticle
- PL10×22 mm, diopter-adjustable
- PL15×16 mm, high-eye-point, wide-field
|
| Objectives | - 5×, 10×, 20×, 50×, 100× infinity-corrected, long-WD achromat
- 50× semi-apo with correction ring
|
| Nosepiece | Internal-click, 5-position |
| Focus Mechanism | Coaxial coarse/fine (28 mm travel, 2 μm fine), anti-backlash and upper-limit stop, stage height adj. 28 mm |
| Stage | Double-layer mechanical, coaxial X/Y knobs, 175×145 mm plate, 76×42 mm travel; metal & glass inserts |
| Reflected Illumination | 100–240 VAC, 50/60 Hz; 35 W LED, adjustable aperture & condenser, neutral/blue/green ND filters |
| Transmitted Illumination | 100–240 VAC, 50/60 Hz; 35 W LED, warm white |
| Condenser | NA 0.9 condenser for transmitted Köhler illumination |
| Imaging Accessories | - Yellow & neutral transmission filters
- C-mount adapters: 0.35×, 0.5×, 0.65×, 1×; built-in reticle
- Digital camera interface: 1×, C- or F-mount
- Reflection filters: 480 nm blue, 520–570 nm green, 630–750 nm red, LBD
- High-precision reticle (0.01 mm), polarization & epi-illumination modules
|
