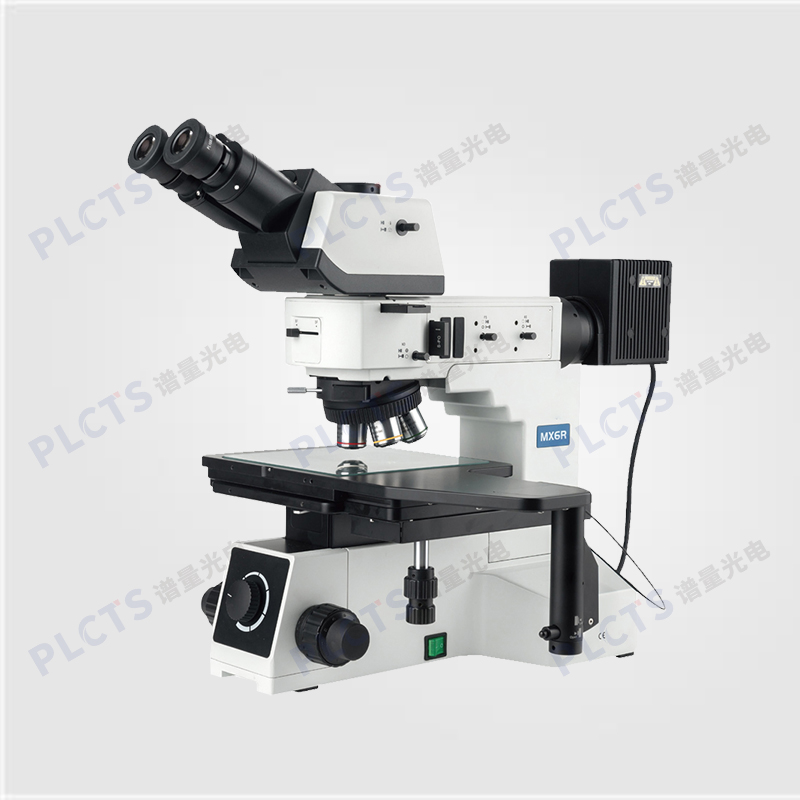

MX6R Upright Metallurgical Microscope features an infinity-corrected optical system and reflected Köhler illumination with anti-reflection structures to eliminate stray light, delivering clearer images and higher field contrast.
All controls on the MX6R are ergonomically designed to minimize operator fatigue. Its modular components let you customize functions—bright field, dark field, oblique illumination, polarization, DIC—according to your application needs.
Technical Specifications:
| Parameter | Specification |
|---|
| Optical System | Infinity-corrected, chromatic-aberration corrected |

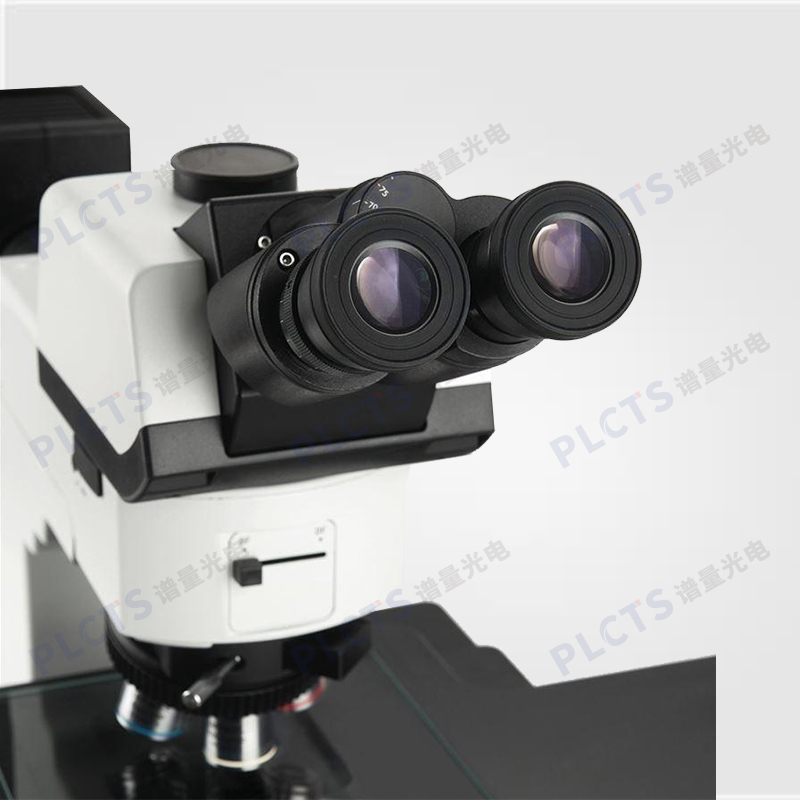

| Observation Tube | 30° inclined, erect image trinocular; interpupillary 50–76 mm; beam splitter 100:0 or 0:100 (supports 25/26.5 mm field)
30° inclined, inverted image trinocular; interpupillary 50–76 mm; beam splitter 0:100, 8:100, 100:0 (supports 25/26.5 mm field)
5–35° adjustable incline, erect image trinocular; interpupillary 50–76 mm; diopter ±5 dpt; beam splitter 100:0 or 0:100 (supports 22/23/16 mm field) |
| Eyepieces | PL10×/22 mm, high-eye-point, wide-field, reticle-capable, diopter-adjustable
PL10×/23 mm, wide-field, diopter-adjustable, crosshair reticle
PL10×/25 mm, wide-field, diopter-adjustable, crosshair reticle
PL10×/26.5 mm, wide-field, diopter-adjustable, crosshair reticle
PL15×/16 mm, high-eye-point, wide-field |
| Objectives | Long-WD semi-apo bright/dark-field (5×, 10×, 20×, 50×, 100×)
Infinity-corrected semi-apo bright-field (5×, 10×, 20×, 50×, 100×)
Super-long-WD bright/dark-field semi-apo (20×) |
| Nosepiece | Internal-click 5-position bright/dark-field with DIC slot |
| Focus Mechanism | Reflected-arm frame; front-mounted coarse/fine coaxial (33 mm travel, 1 μm fine); anti-backlash & stop; integrated 100–240 VAC power; brightness preset & reset buttons |
| Stage | 6″ 2-D mechanical; coaxial X/Y knobs; 240×175 mm plate; 135×125 mm work area; 185×158 mm glass insert; 75×50 mm travel; metal & glass inserts |
| Illumination | 12 V/100 W halogen; bright-field reflection; adjustable brightness, field iris, centerable; neutral density & switchable filters |
| Imaging Adapter | 0.35×, 0.5×, 0.65×, 1× C-mount, focusable |
| Additional | Polarizer slot, analyzer slot, 360° rotatable polarizer;
Reflection filters: blue ≈480 nm; green 520–570 nm; red 630–750 nm LBD;
Precision reticle 0.01 mm; DIC modules |
