PI Spectrometer

Princeton Instruments (PI) offers multiple **spectrometer platforms** that ship

产品介绍

Princeton Instruments (PI) offers multiple spectrometer platforms that ship pre-calibrated and integrate seamlessly with PI detectors for true plug-and-play performance. Leading models include the IsoPlane imaging spectrometers, LS series high-throughput lens spectrometers, TriVista ultra-high-resolution triple spectrometers, and SpectraPro high-performance imaging spectrometers, covering virtually every research application.

Technical Advantages:

  • Modular high-sensitivity solutions connect to PI CCD, EMCCD, ICCD, InGaAs cameras and single-point detectors
  • Unified software control for spectrometer, detector & motorized accessories
  • ● Multiple I/O ports and interchangeable components

High-Performance Imaging Spectrometers:

HRS-300HRS-500
HRS-300HRS-500
ParameterHRS-300HRS-500HRS-750
Focal Length300 mm193 mm328 mm
Numerical ApertureF/3.9F/3.6F/4.1
Wavelength Range0–1500 nm
Wavelength Accuracy±0.2 nm (0.02 nm w/ Intellical)±0.01 nm
CCD Spectral Res.0.10 nm0.07 nm0.05 nm
PMT Spectral Res.0.07 nm0.05 nm0.03 nm
Inverse Linear Dispersion2.38 nm/mm1.52 nm/mm1.03 nm/mm
Focal Plane Size14×30 mm
Grating Size68×68 mm / 68×84 mm (optional)
Step Size0.002 nm/step

IsoPlane Imaging Spectrometers:

IsoPlane-160IsoPlane-320
IsoPlane-160IsoPlane-320
ParameterIsoPlane-160IsoPlane-320IsoPlane-320A
Focal Length203 mm320 mm320 mm
Numerical ApertureF/3.88F/4.6F/4.6
Wavelength Range0–1400 nm
Wavelength Accuracy±0.2 nm
Focal Plane Size27×14 mm (standard)
CCD Resolution
(20 μm pixels, 1200 g/mm @ 435 nm)
0.17 nm0.08 nm0.06 nm
PMT Resolution
(10 mm slit, 1200 g/mm @ 435 nm)
0.13 nm0.05 nm0.04 nm
Stray Light<0.00002
Aberration100 μm (all wavelengths)0 μm (all wavelengths)
Step Size
(1200 g/mm @ 435 nm)
0.005 nm0.002 nm0.002 nm
Spectral Window57 nm

Integrated Imaging Spectrometer:

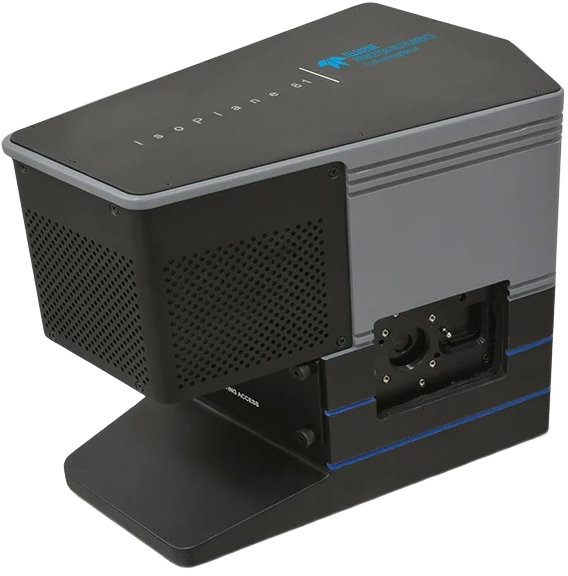

IsoPlane 81

IsoPlane 81

ParameterIsoPlane 81
Sensor Pixels1024 × 256
Focal Length80 mm
Numerical ApertureF/4
Spectral Resolution0.10 nm
Spectral Range400–1100 nm
Gratings150–4320 g/mm
Slit10–500 μm width, 3.3 mm height
InterfaceUSB 3.0
