Princeton Instruments (PI), as a world-class manufacturer of **high-performa
Princeton Instruments (PI), as a world-class manufacturer of high-performance, high-sensitivity cameras, pursues excellence in every specification. PI’s scientific-grade CCD cameras, Electron Multiplying CCDs (EMCCD), and InGaAs NIR detectors not only deliver outstanding sensitivity and fast response, but also earn a stellar reputation for quality and stability.
|
|
|

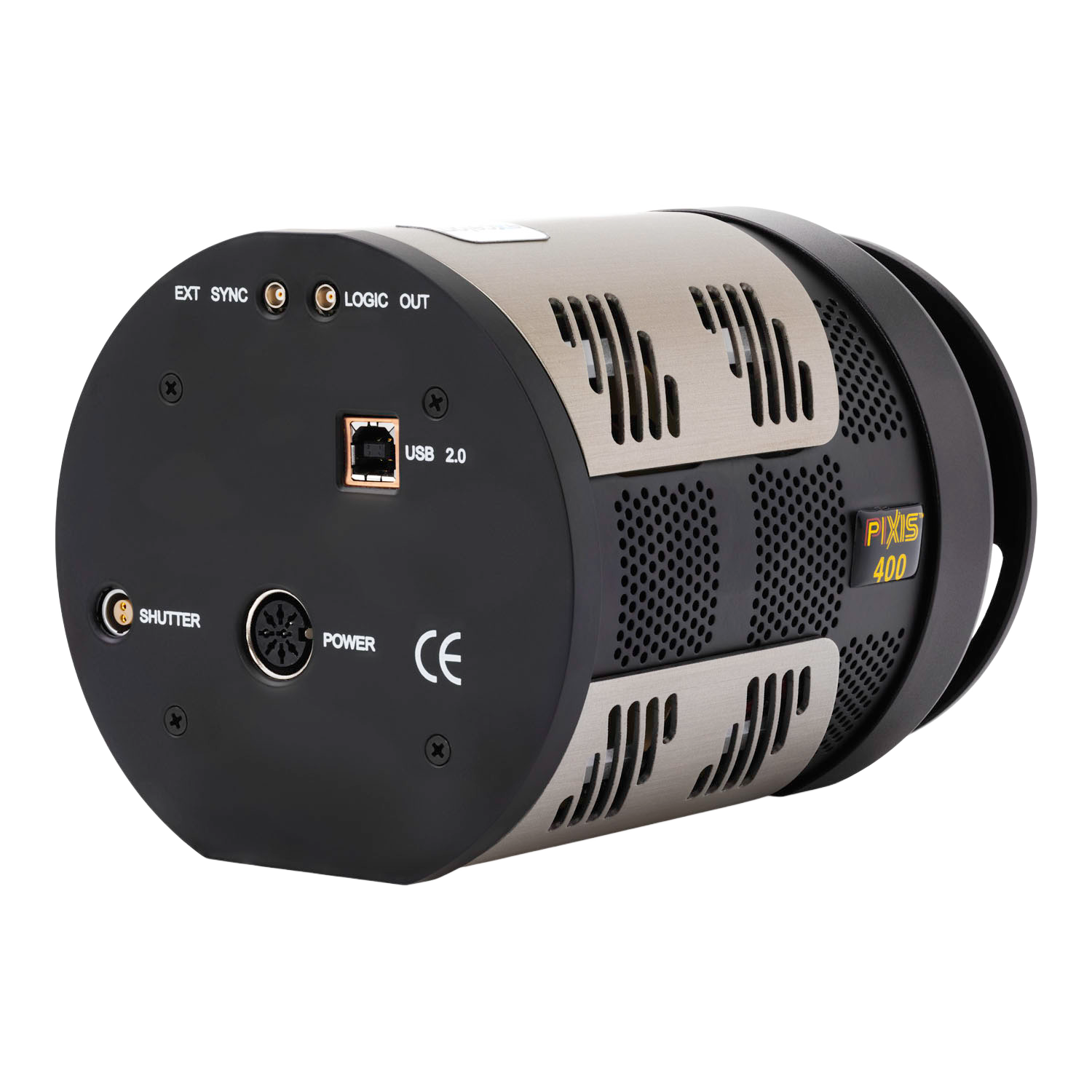

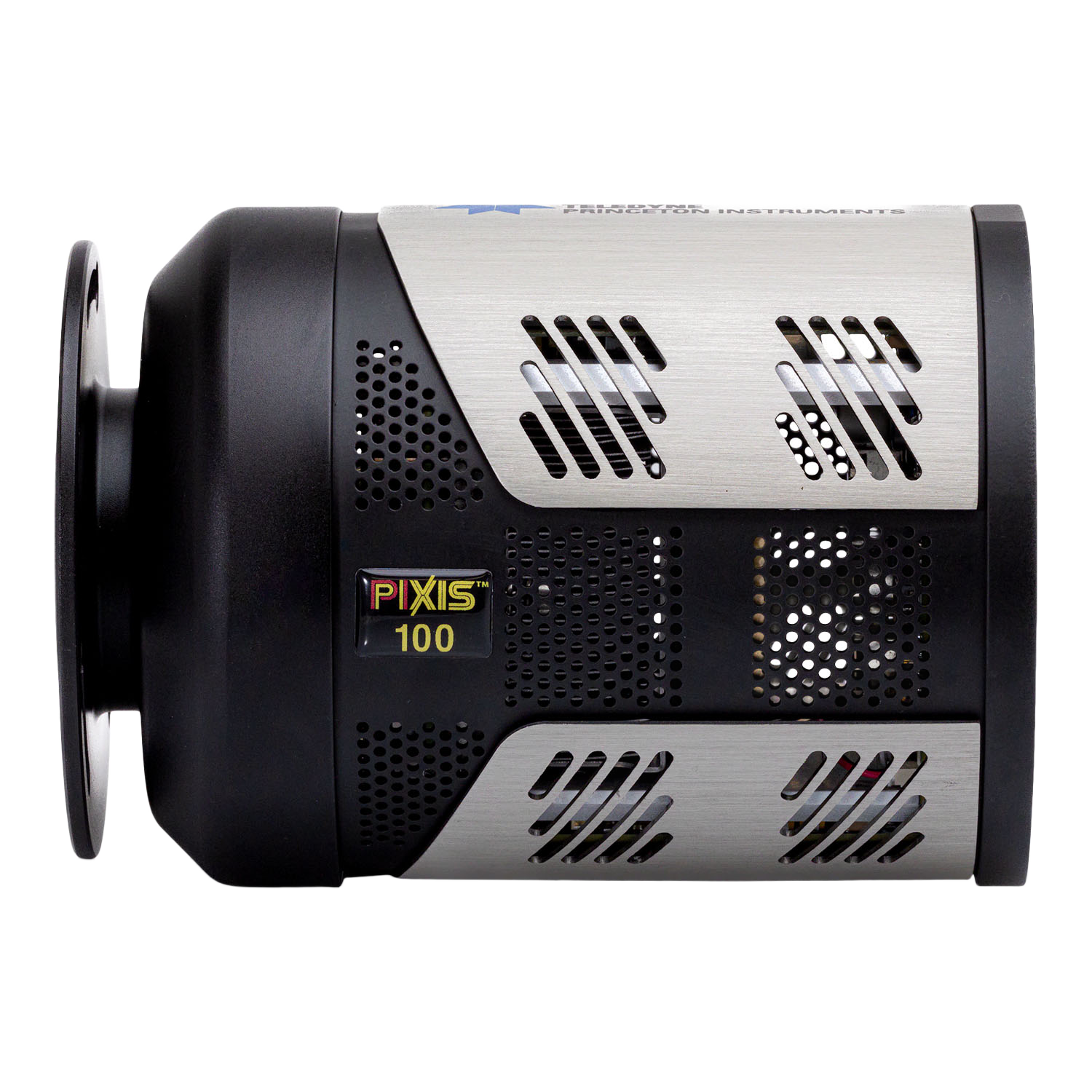

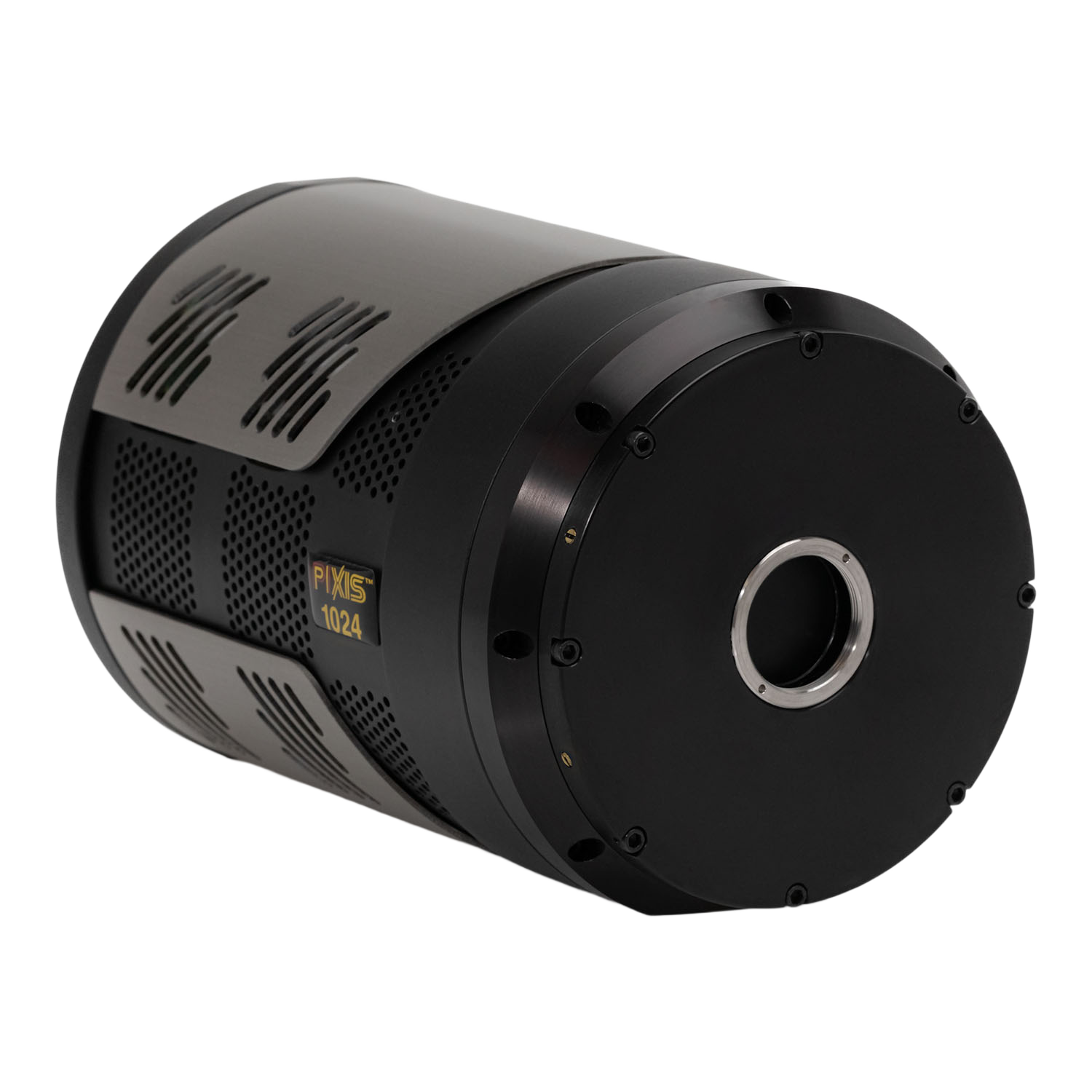

| PIXIS:100 | PIXIS:400 | PIXIS:1024 |
| Model | PIXIS:1024 | PIXIS:1300 | PIXIS:2048 | PIXIS:100 | PIXIS:400 | PIXIS-2K | PIXIS-256 |
|---|---|---|---|---|---|---|---|
| Active Pixels | 1024×1024 | 1340×1340 | 2048×2028 | 1340×100 | 1340×400 | 2048×512 | 1024×256 |
| Pixel Size | 13×13 μm | 20×20 μm | 13.5×13.5 μm | 20×20 μm | 20×20 μm | 13.5×13.5 μm | 26×26 μm |
| Sensor Type | BRX, BR, BX, B, BUV, F | BX, B, BR, F | BRX, BR, BX, B, BUV, F | BRX, BR, BX, B, F | BRX, BR, BX, B, F | BX, B, BUV | BR, E |
| Readout Amplifier | Single | Dual | Dual Mode | Dual | Dual | Dual Mode | Single |
|
|
|

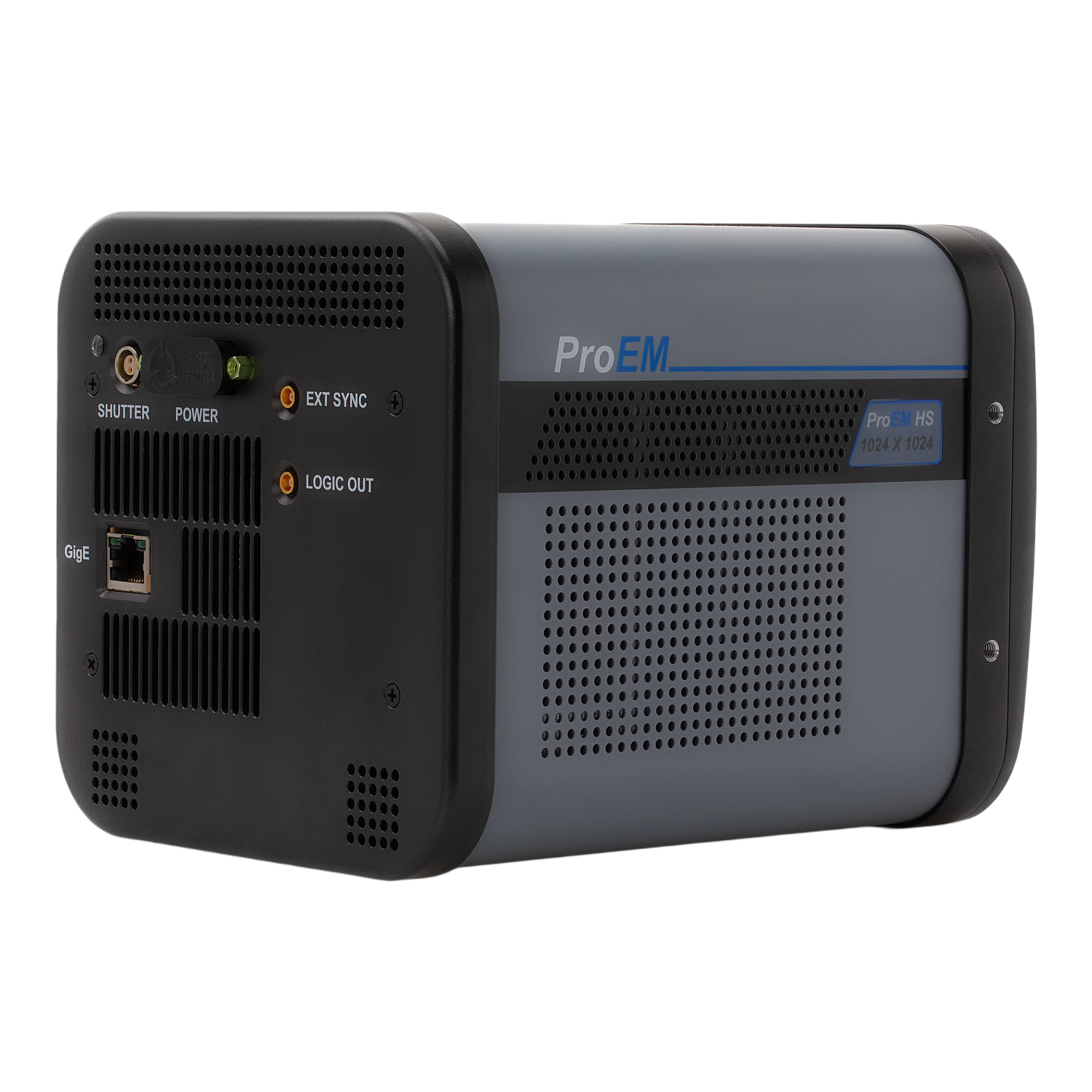

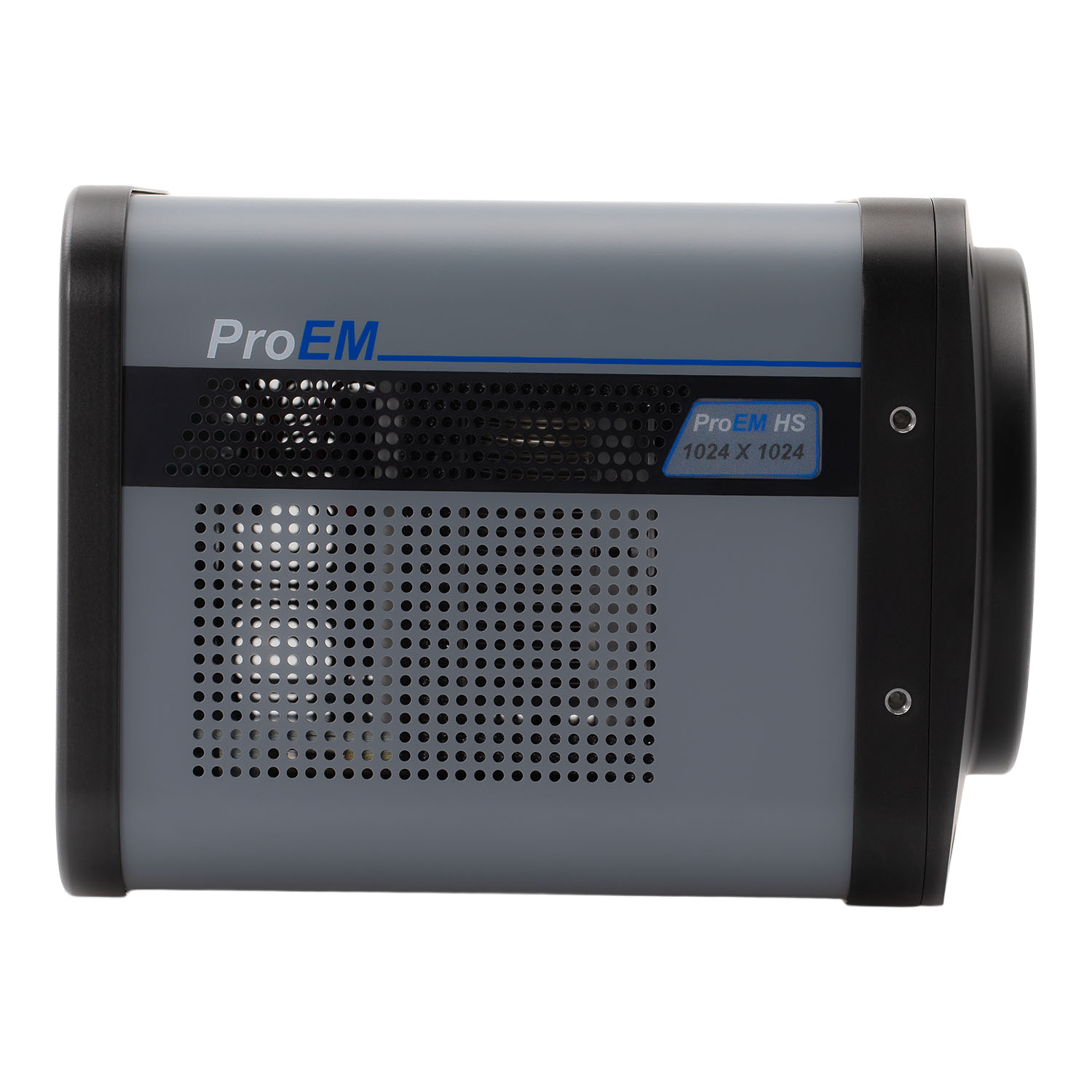

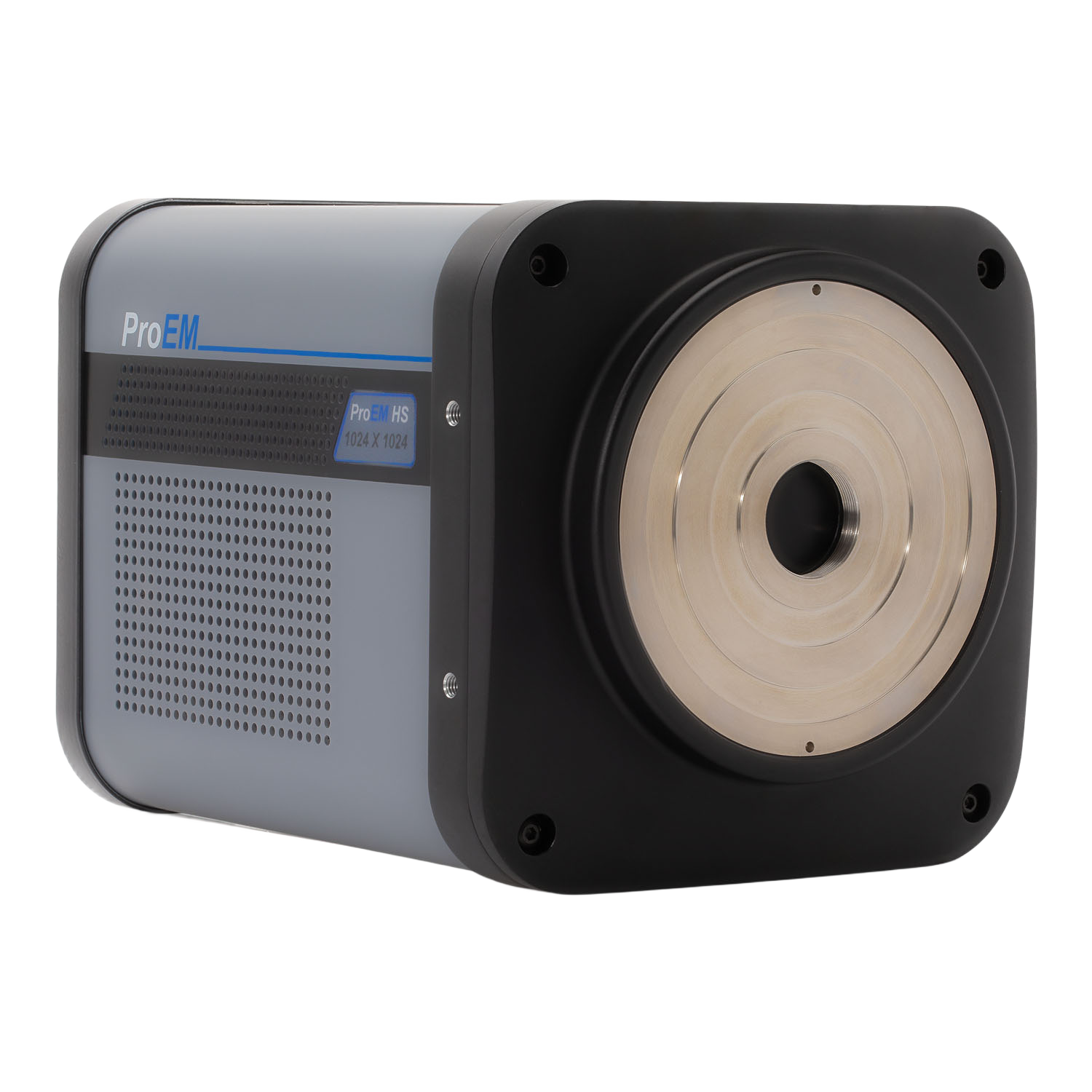

| ProEM-HS 1024 | ||
| Model | ProEM HS:512BX | ProEM HS:1KBX3-10μm | ProEM HS:1024BX3 | ProEM:16002 | ProEM:16004 |
|---|---|---|---|---|---|
| Active Pixels | 512×512 | 1024×1024 | 1024×1024 | 1600×200 | 1600×400 |
| Pixel Size | 16×16 μm | 10×10 μm | 13×13 μm | 16×16 μm | 16×16 μm |
| Dark Current (e⁻/px/s) | 0.001 | 0.0002 @ –70 °C 0.04 @ –55 °C | 0.0002 @ –70 °C 0.04 @ –55 °C | <0.01 @ –60 °C | <0.01 @ –60 °C |
|
|
|

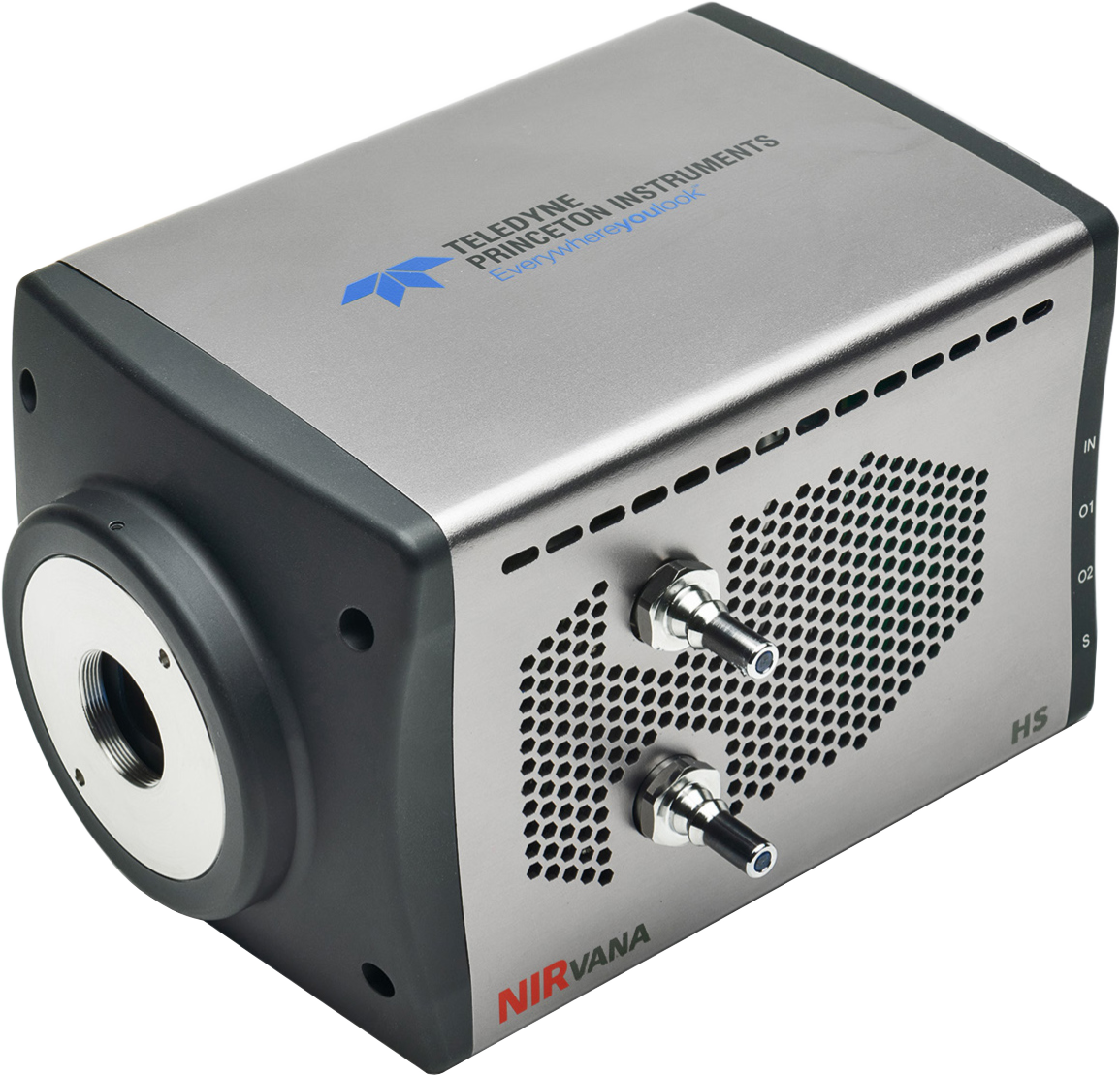

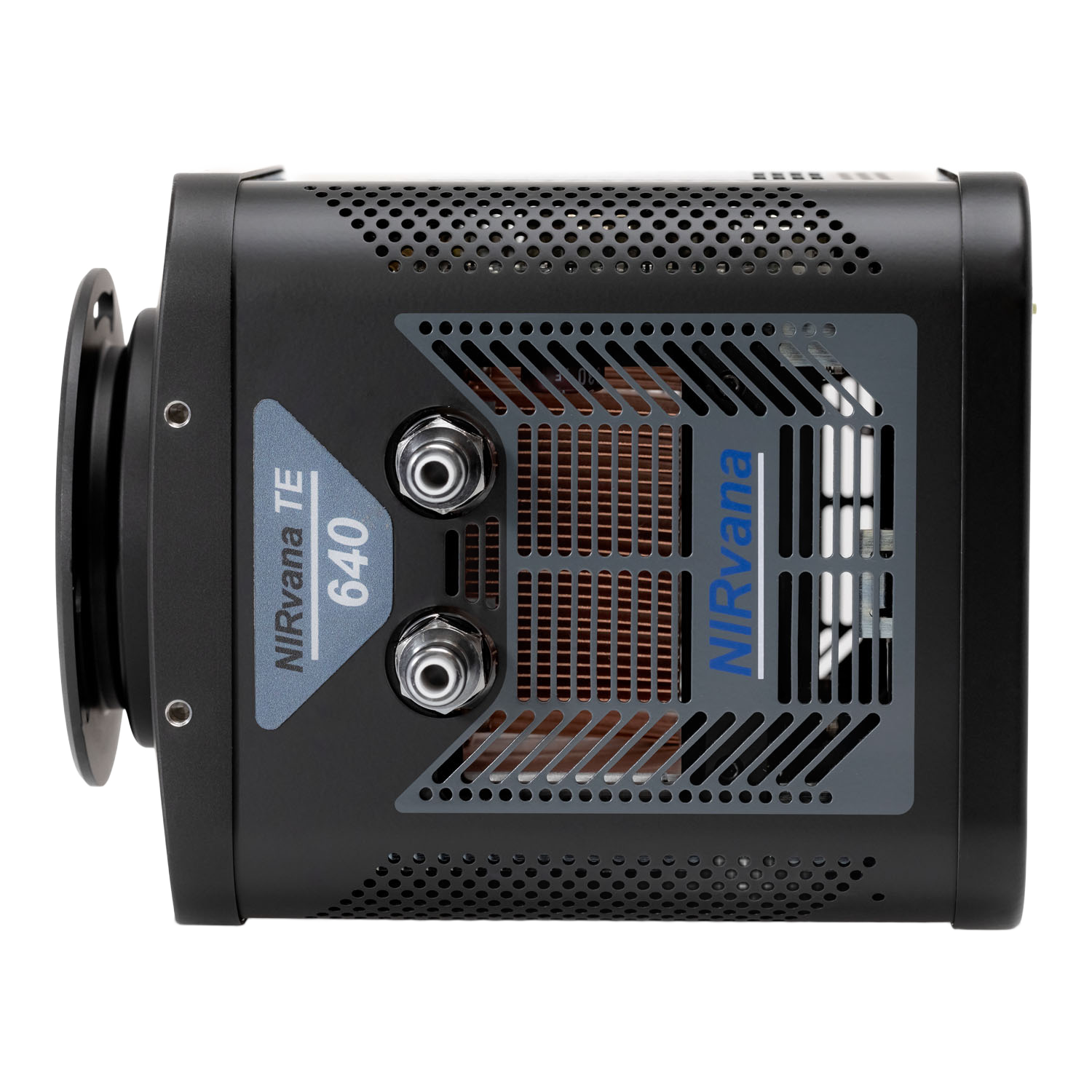

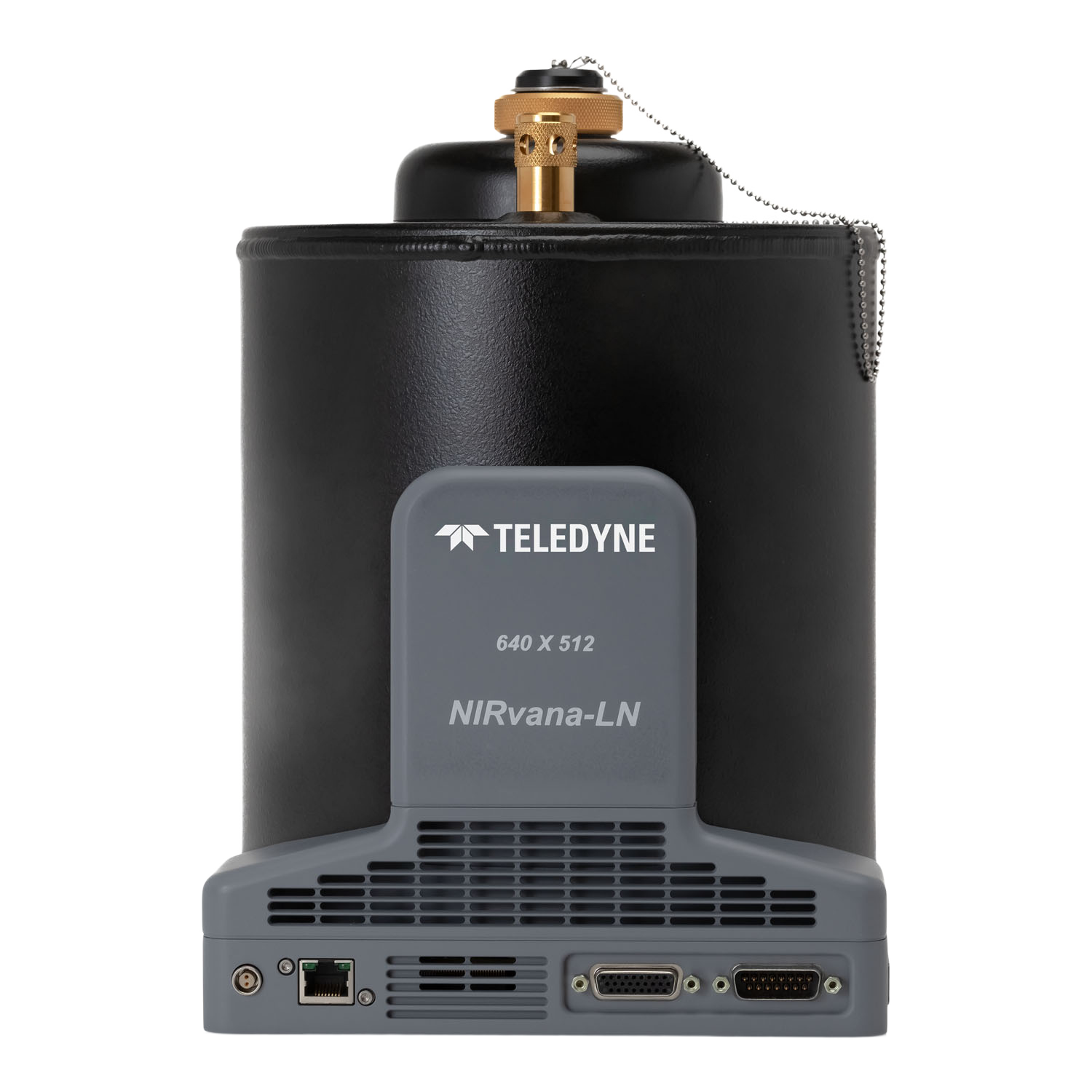

| NIRvana: HS | NIRvana: 640 | NIRvana: LN |
| Model | NIRvana: HS | NIRvana: 640 | NIRvana: LN |
|---|---|---|---|
| Wavelength Range | 900–1700 nm | 900–1700 nm | 850–1550 nm |
| Active Pixels | 640×512 | 640×512 | 640×512 |
| Pixel Size | 20×20 μm | ||
| Imaging Area | 12.8×10.24 mm | ||
| Dark Current (e⁻/px/s) | <500 | <40 | <10 |
| Recommended Exposure | 2 μs–1+ min | 2 μs–10+ min | 1 s–60+ min |
| Frame Rate | 250 fps | 110 fps | 2.5 fps |
|
| |

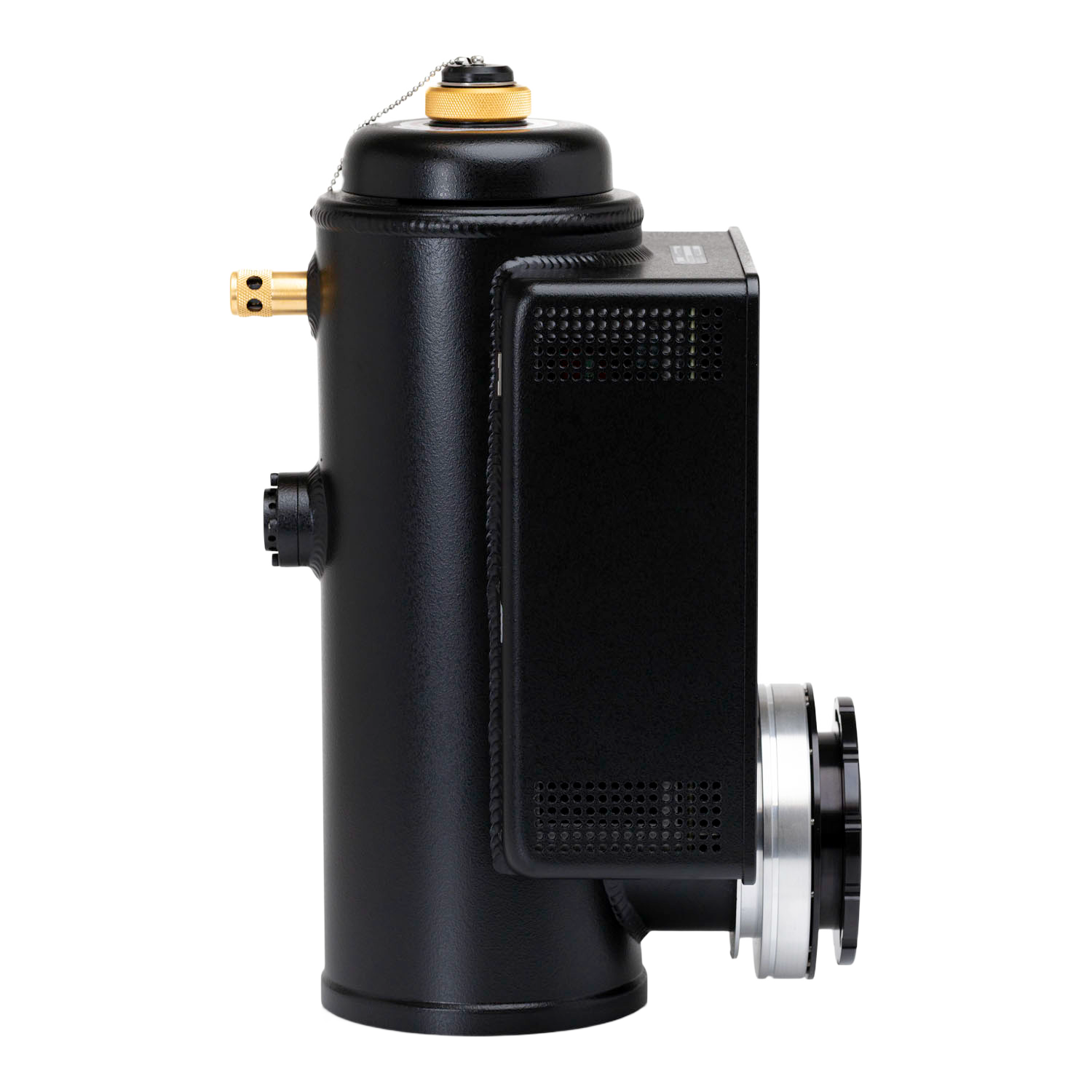

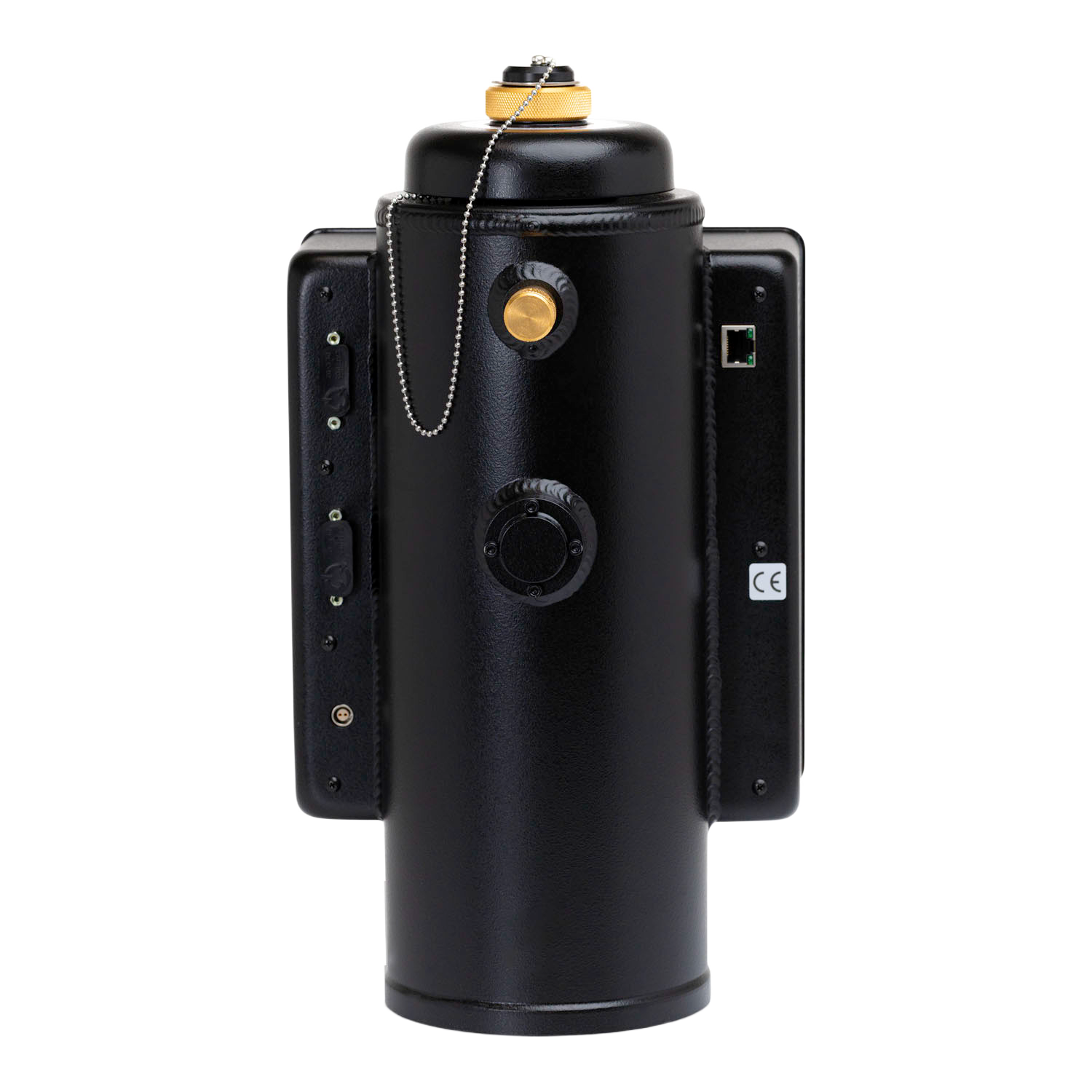

| PyLoN-IR: 1024 Series | ||
| Model | PyLoN-IR: 1024-1.7 | PyLoN-IR: 1024-2.2 |
|---|---|---|
| Wavelength Range | 800–1700 nm | 1000–2200 nm |
| Active Pixels | 1024×1 | |
| Cooled Temp. | –100 °C | |
| Min Exposure | 20 μs | |
| Typical Read Noise | Low Gain | <40 e⁻ RMS |
For application-specific recommendations (Raman, fluorescence, IR spectroscopy, photoluminescence, etc.), see our article: https://www.szploptics.com/news/353.html
