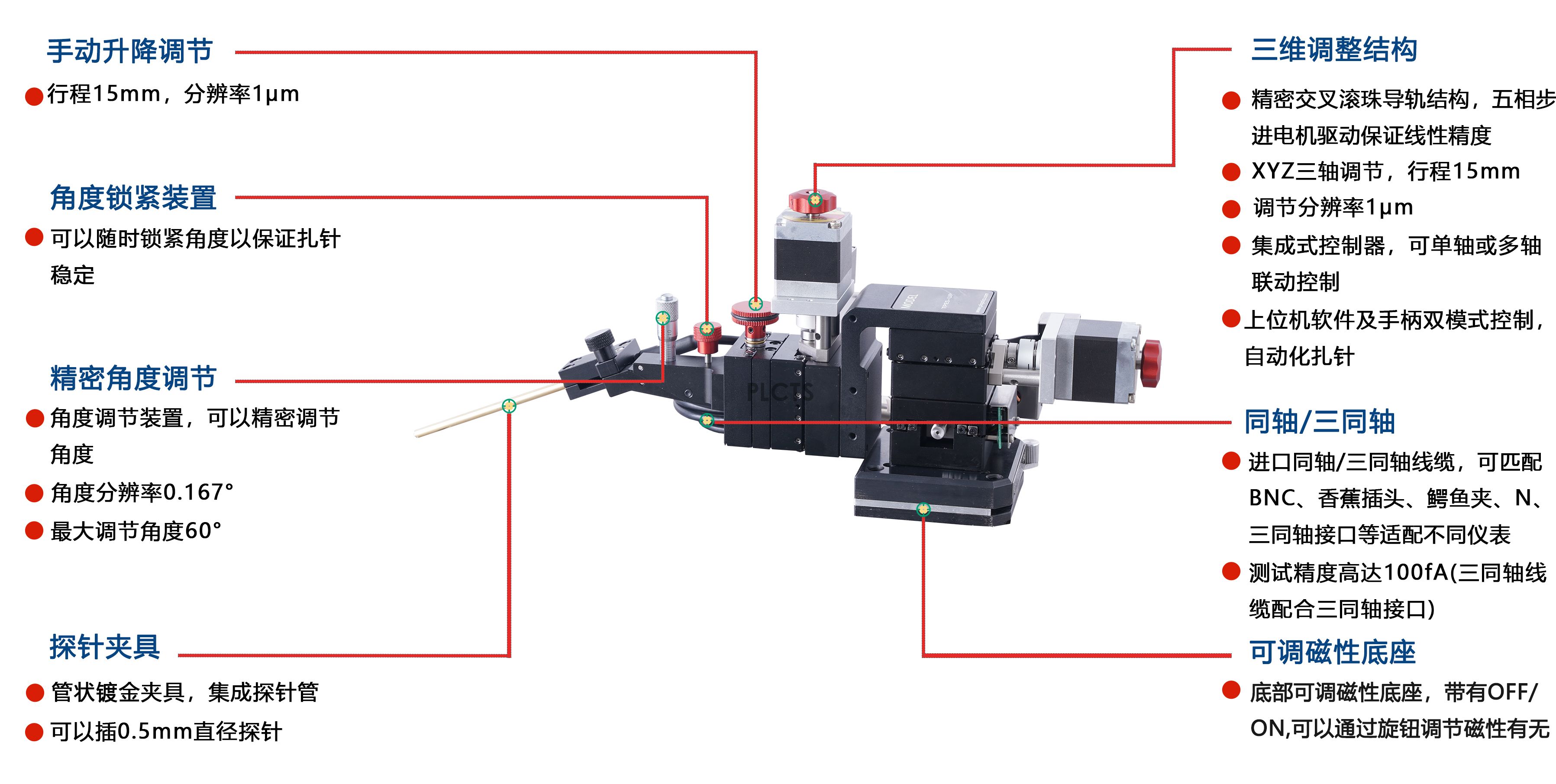

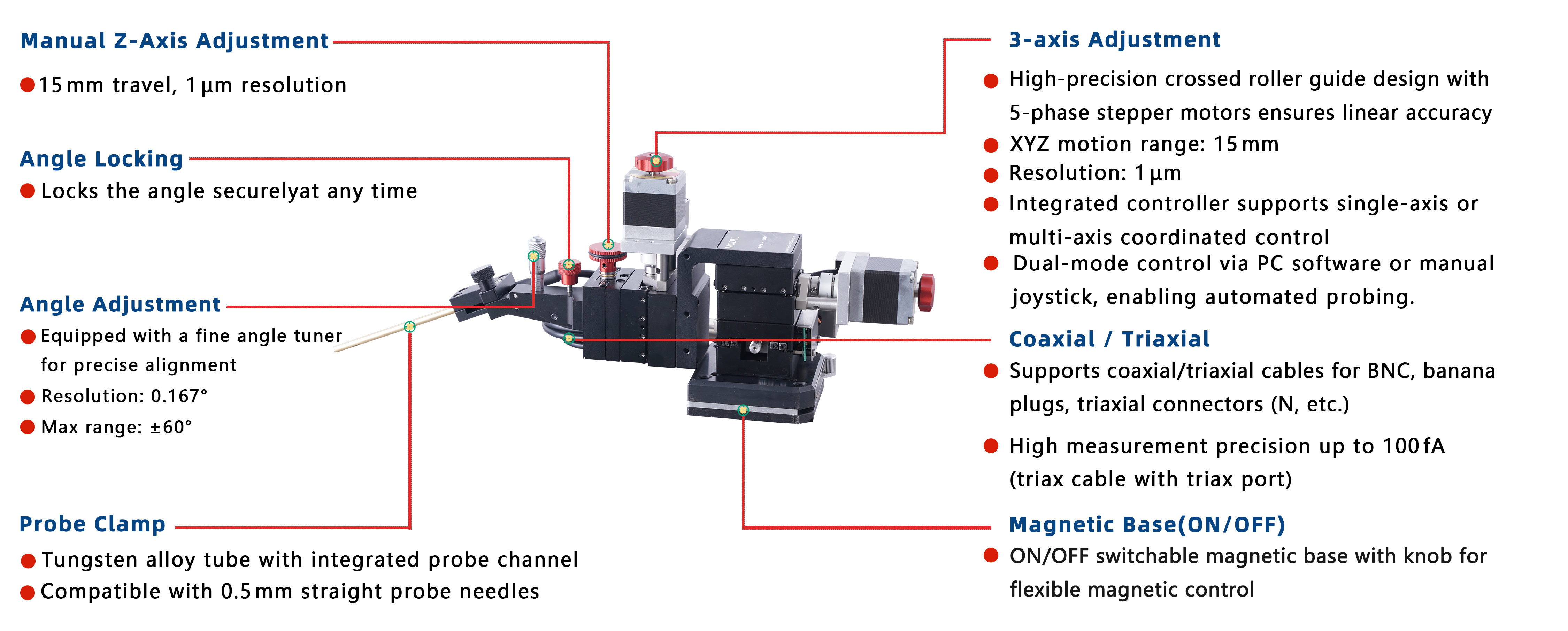

The TPES-UP high-precision motorized probe holder is built upon a precision moto
The TPES-UP high-precision motorized probe holder is built upon a precision motorized positioning system and is compatible with 5-phase stepper motors. When paired with a high-resolution 5-phase driver, it delivers smooth, jitter-free motion at low speeds, enabling micron-level positioning accuracy. PLCTS offers flexible customization, allowing the system to be matched with different types of probe holders and control modules according to customer requirements, ensuring seamless integration with existing equipment.
● Works seamlessly with PLCTS’s multi-axis motion control system and handwheel module, enabling both coordinated multi-axis movement and independent single-axis control
● A single controller can connect up to three probe holders, allowing 9 degrees of freedom for fully automated positioning
● The software interface is intuitive and user-friendly, supporting both individual axis control and multi-axis synchronized operation; includes one-click homing for single or multiple axes
● Each axis can be controlled individually or in combination, with independent speed settings for each axis
● Supports a wide range of automation functions including multi-axis linkage, interpolated motion, array movement, and CAD file import for trajectory planning
● Designed to meet the requirements of automated production lines and automated laboratory testing systems
● Requires integration with our high-precision motion controller
● Supports real-time reading of motion status, including absolute coordinates, relative coordinates, and working coordinates
● Supports secondary development; users can independently build and customize their own motion control systems
Supports multi-axis or single-axis motion at different speeds
Supports jog mode and continuous movement
Supports point-based homing (return-to-zero)
Supports zero-offset (bias) movement
Supports relative motion, absolute motion, jog mode, and user-defined coordinate systems
Enables multi-axis synchronized movement
Supports arbitrary single/multi-axis motion at different speeds and distances in linked or jog mode
Programmable movement for various interpolation operations
Supports setting of loop/repeat cycles
Allows motion path editing by axis through graphical interface
Executes predefined motion paths based on parameters like speed and distance
Supports CAD file import for trajectory generation
Our high-precision motorized probe holders currently offer two operation modes, adaptable to different environments and user preferences.
The probe holder is operated by controlling the 5-phase stepper motor via a motion handwheel module.
01 Motion Handwheel
02 Stepper Motor
03 Probe Holder
The probe holder is operated by controlling a 5-phase stepper motor via software.
01 Software
02 Stepper Motor
03 Probe Holder
Suitable for RF MeasurementsI/O Point TestingDC TestingWafer TestingResistance & Voltage TestingSolar Cell Testing Photocurrent TestingSemiconductor Device Analysis & Testing
