The PLCTS HV60 Horizontal and SV60 Vertical Visual Observation Systems are modular, multi-dimensional imaging units specifically designed for optical coupling platforms. Each system consists of a high-resolution zoom lens, CCD camera, monitor, and a multi-axis adjustment mount, enabling precise observation during initial alignment from top-down (vertical), frontal (horizontal), and adjustable side angles.
With a fully modular design, these systems offer flexible integration and easy operation, significantly enhancing the efficiency and accuracy of precision coupling processes.
Technical Advantages:
● Highly flexible adjustment
● Standalone operation supported
● Long working distance
● Adjustable observation angles
● Modular system architecture
● Configurable for vertical, horizontal, or angled views
● High-resolution imaging, rich camera functions
● Fully equipped, ready to use out of the box
Observation Angles：

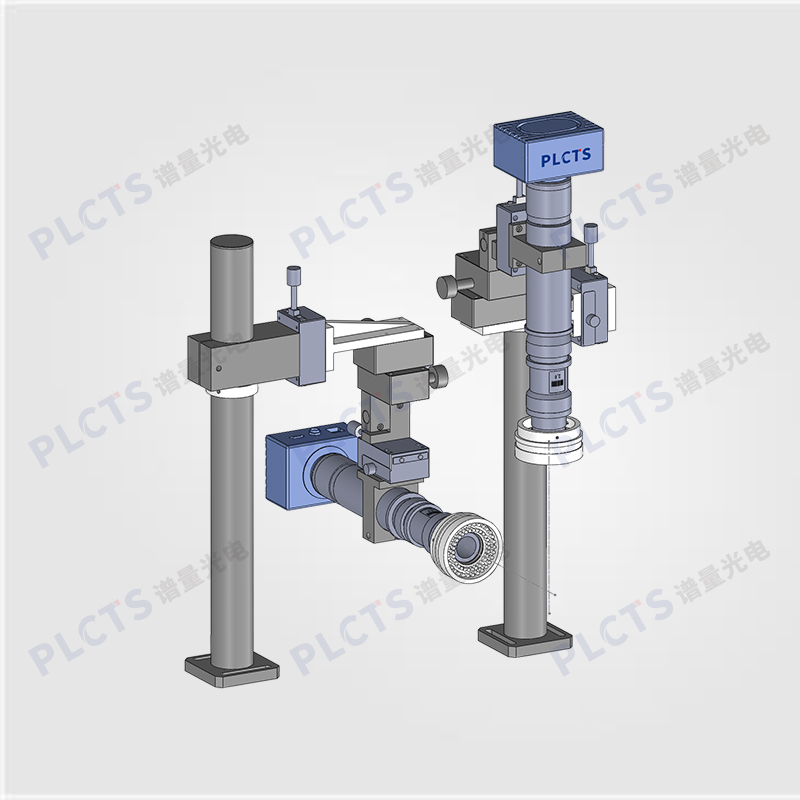

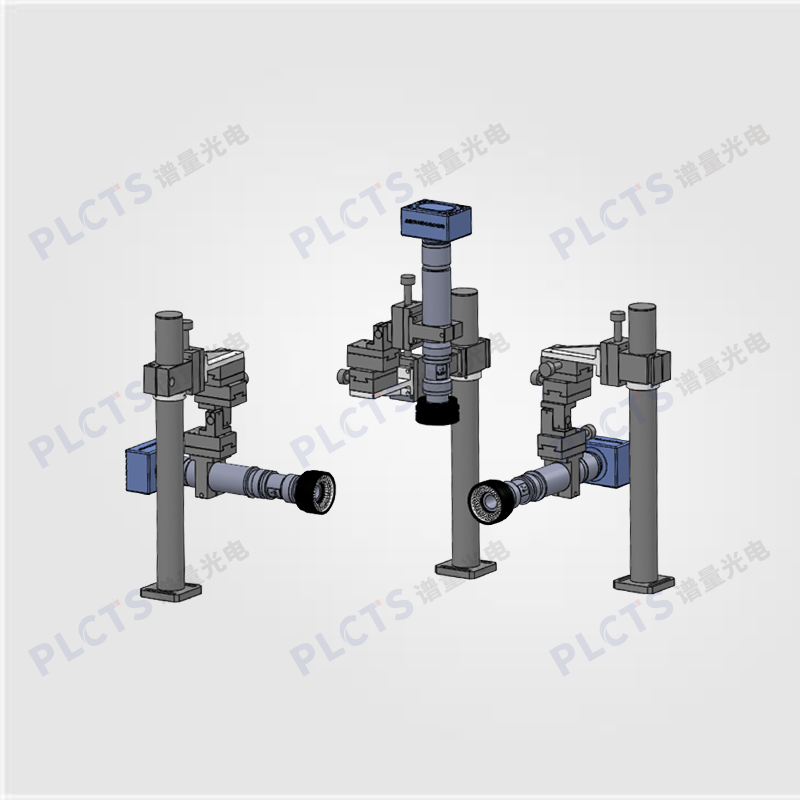

Based on the specific requirements of the coupling components.HV60 horizontal，SV60 vertical，以及 adjustable-angle side-view observation systems，can be flexibly combined

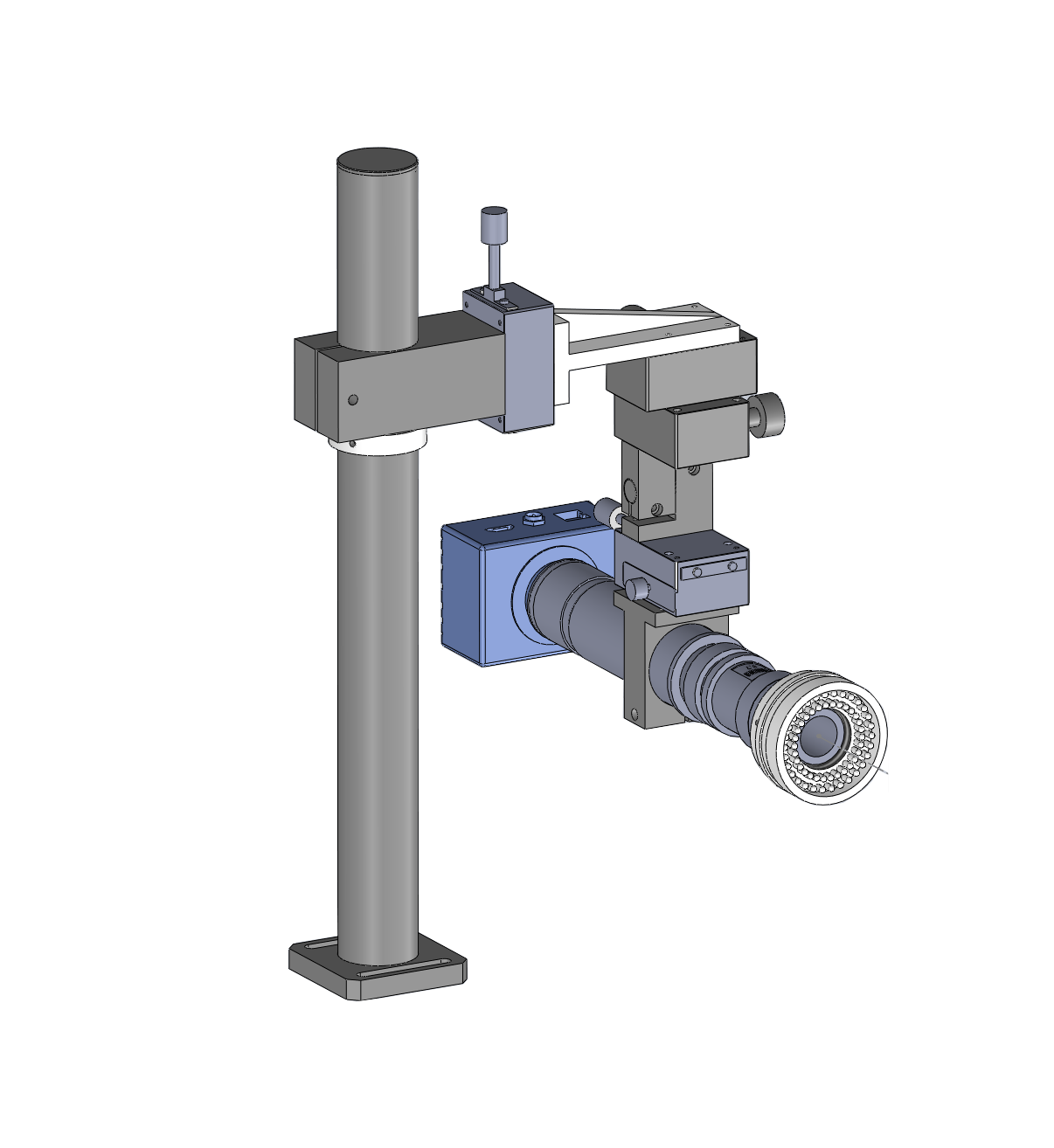

↑Horizontal Visual Observation System

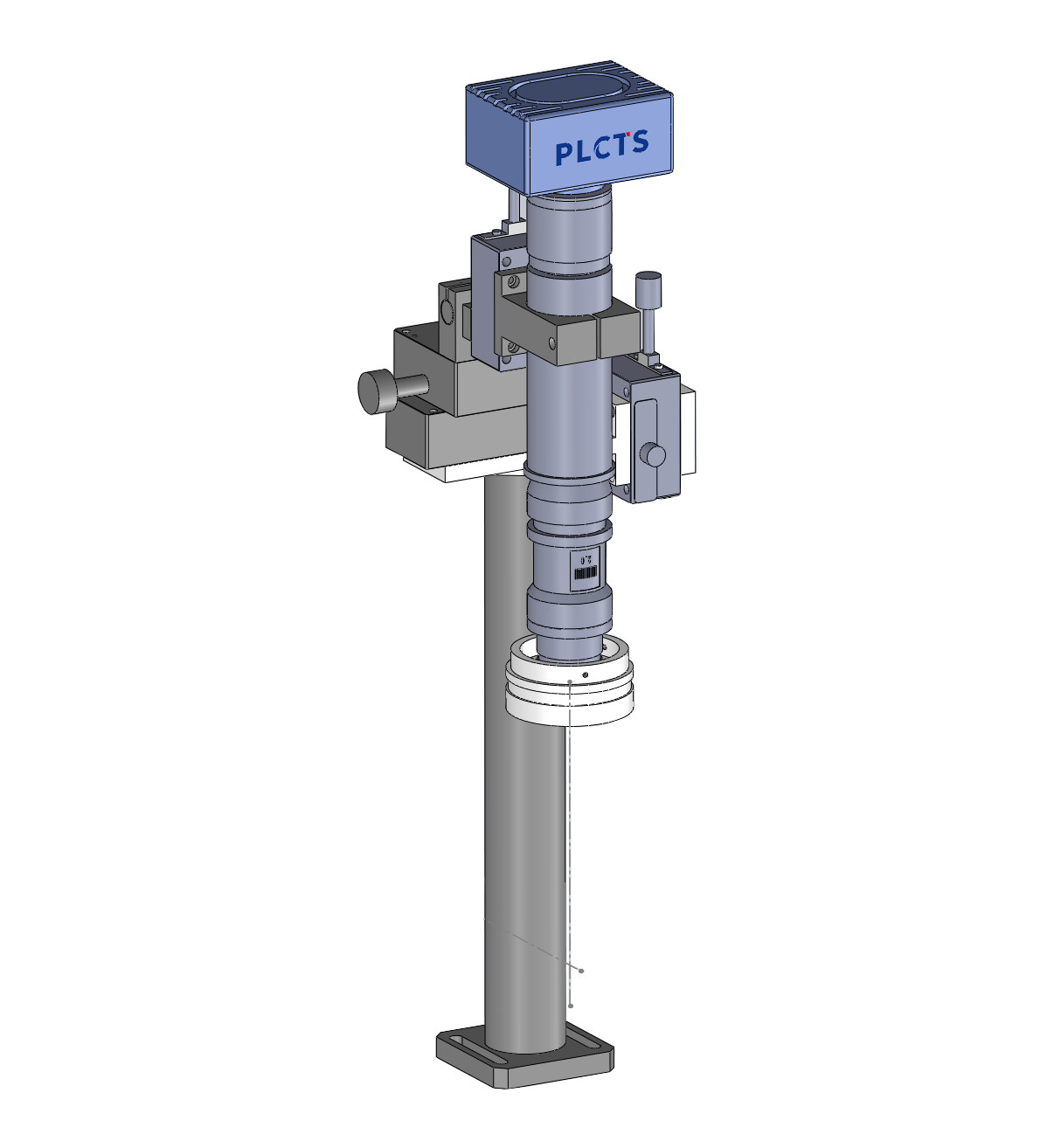

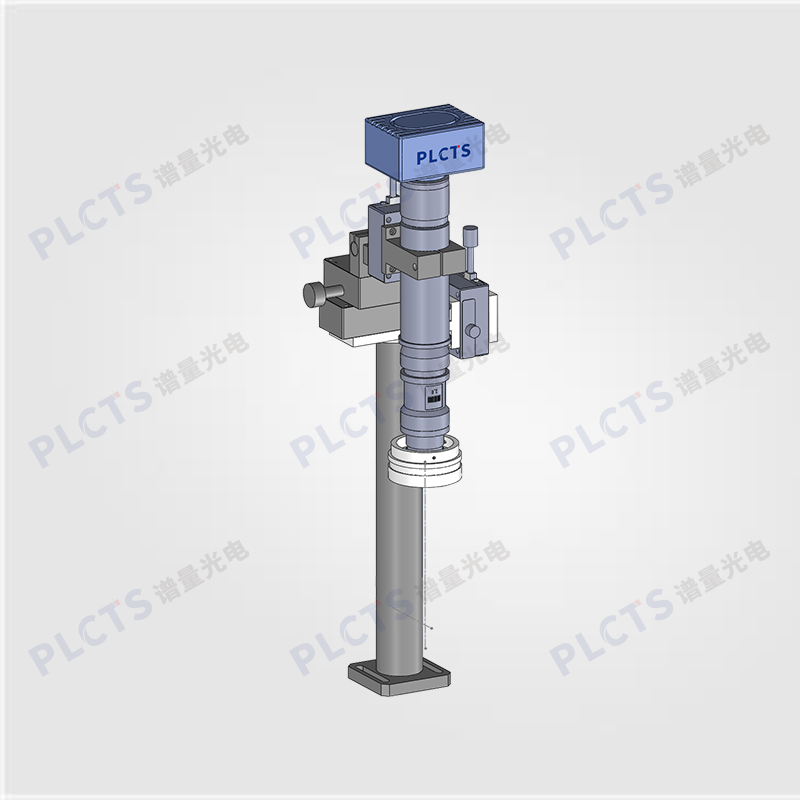

↑Vertical Visual Observation System

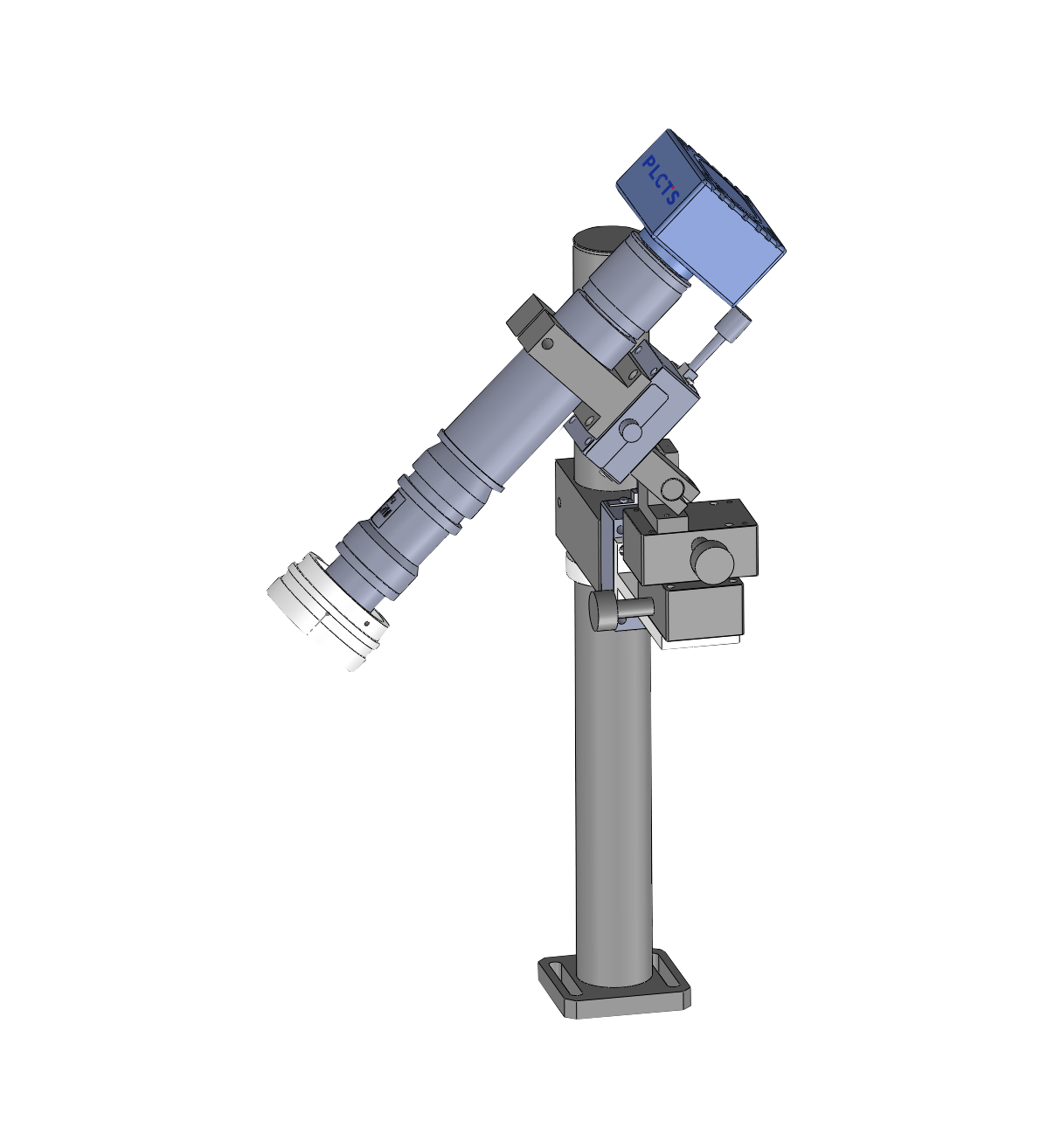

↑Side-Angle Visual Observation System
Technical Specifications:
| Parameter | Specification |
|---|
| Observation Direction | Vertical, Horizontal, Adjustable Side View |
| Optical Zoom Range | 0.7~4.5X |
| Max Digital Magnification | 240X |
| Camera Resolution | 1920*1080 |
| Working Distance | 86mm（customizable） |
| Adjustment Axes & Travel | 4-axis dovetail stage adjustment, travel range: 40 mm |
