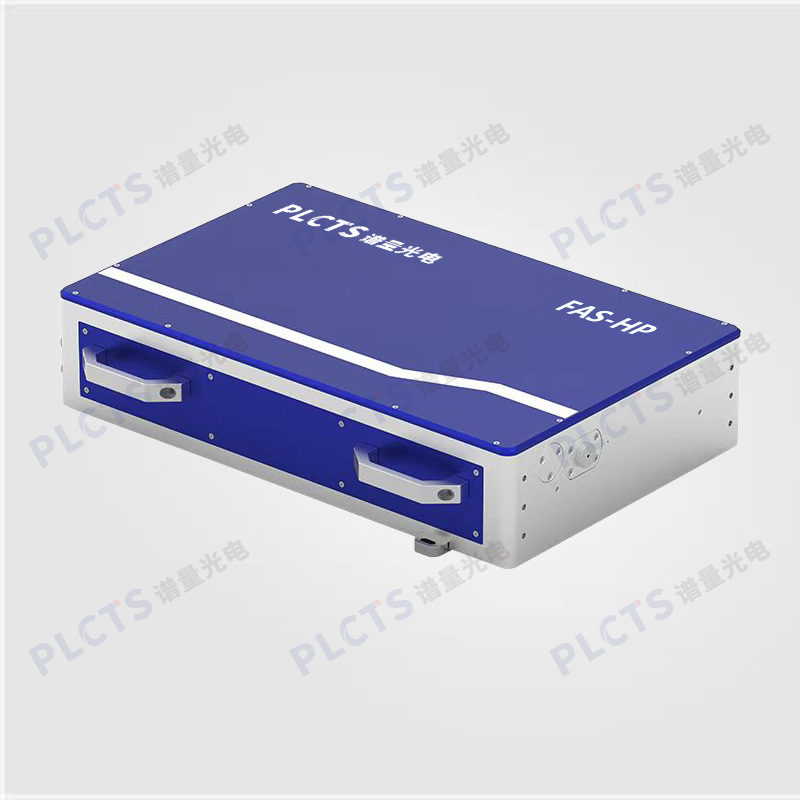

1030 nm High-Repetition-Rate Femtosecond Laser

FAS Series High-Repetition-Rate Fiber Femtosecond Lasers are our fully all-fiber

产品介绍

FAS Series High-Repetition-Rate Fiber Femtosecond Lasers are our fully all-fiber, industrial-grade sources, built on a proprietary femtosecond seed and advanced amplification technology. Thanks to their all-fiber architecture, the FAS series delivers outstanding beam quality, a compact footprint, and rock-solid reliability.

With a broad power range (5 W–100 W), pulse widths tunable from 100 fs to 350 fs, and repetition rates up to 80 MHz, the FAS lasers meet the most demanding industrial and scientific applications. They achieve power stability as low as < 0.1 % rms (for outputs < 10 W) and can be equipped with SHG/THG modules for extended wavelength coverage—ideal for spectroscopy, precision micromachining, fluorescence imaging, and more.

Technical Advantages:

  • Reliable fiber amplification for high-repetition output
  • Industrial-grade power stability
  • Optional SHG/THG modules & three-stage output
  • Integrated electro-optical-mechanical design

Applications:

  • Ultrafast spectroscopy
  • Terahertz photonics
  • Nonlinear optics
  • Two-photon imaging
ParameterFAS-5FAS-20FAS-100FAS-FP
Center Wavelength1030±5nm
Average Power5W20W100W3W
Pulse Width<250fs<300fs<350fs<100fs
Repetition Rate36MHz36MHz/80MHz36MHz36MHz/80MHz
Single-Pulse Energy30–150nJ500nJ2.5μJ40nJ
Beam Diameter1–3mm
Extinction Ratio>20dB
Output ModeFree-space
Power Stability (rms)<0.1%rms<0.5%rms<0.5%rms<0.1%rms
Spectral Bandwidth>10nm>5nm>15nm
Beam Quality (M²)<1.2<1.3<1.2
Optional AccessoriesSHG (515 nm) / THG (355 nm) / All-in-one 3ω
Dimensions (L × W × H)600×325×123mm780×454×161.5mm

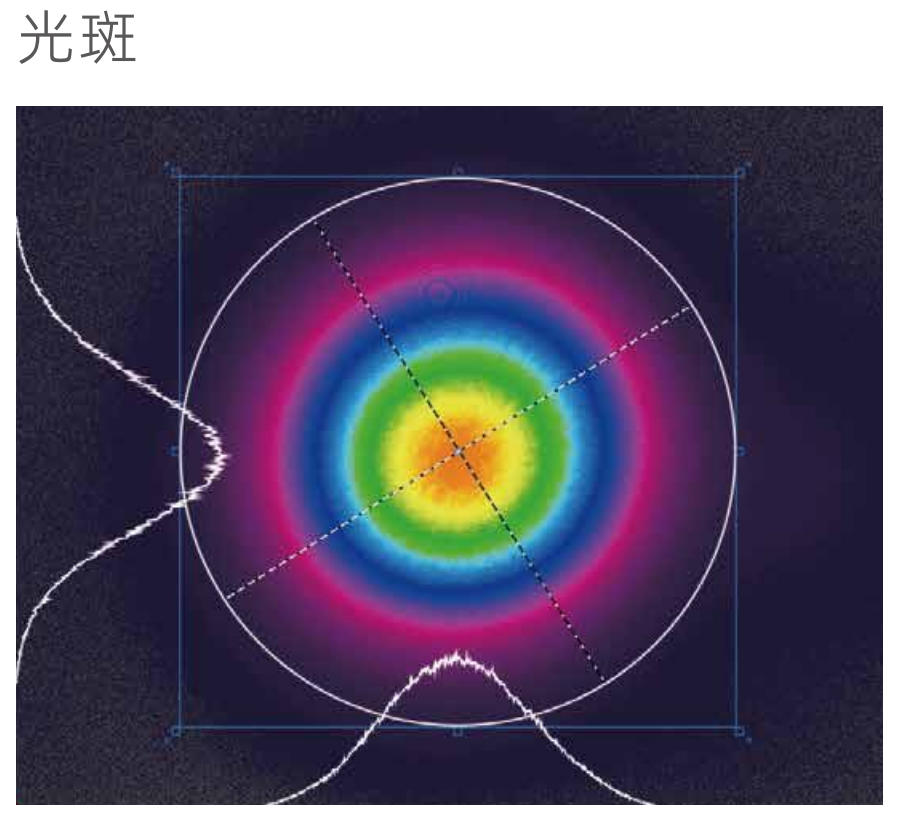

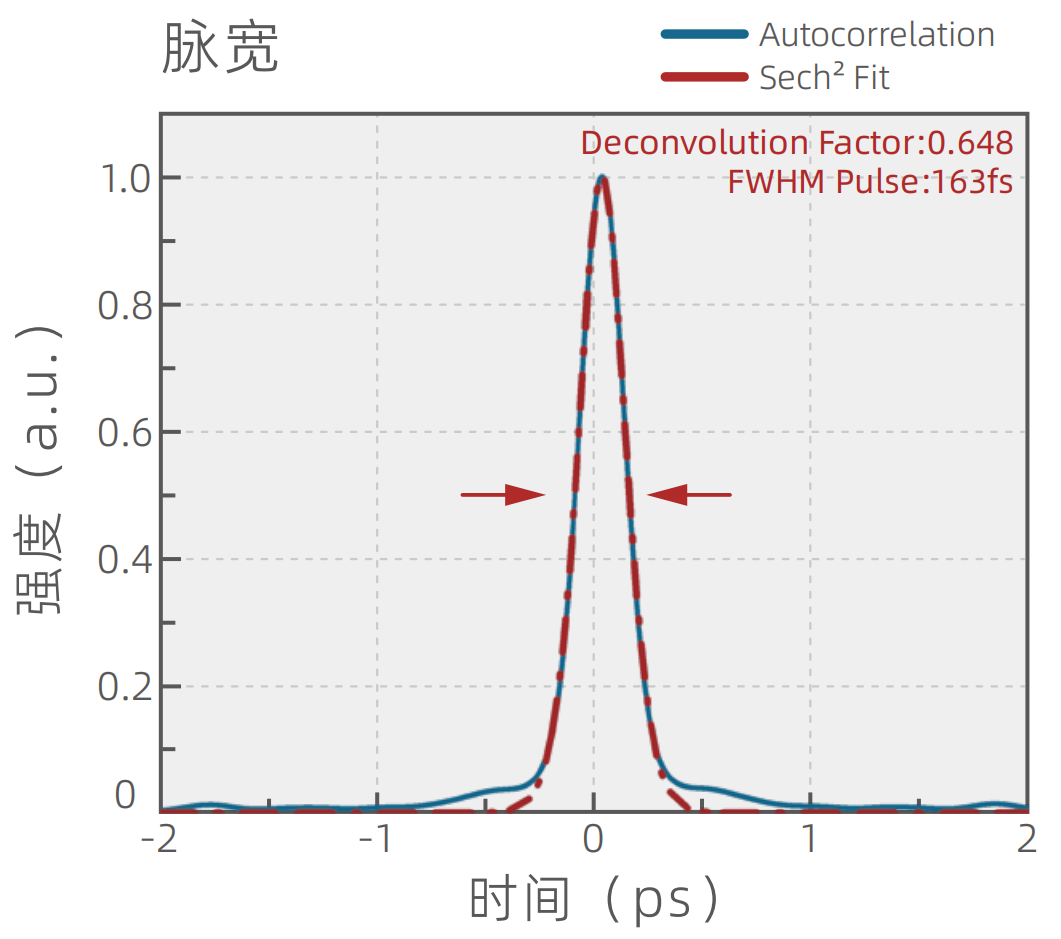

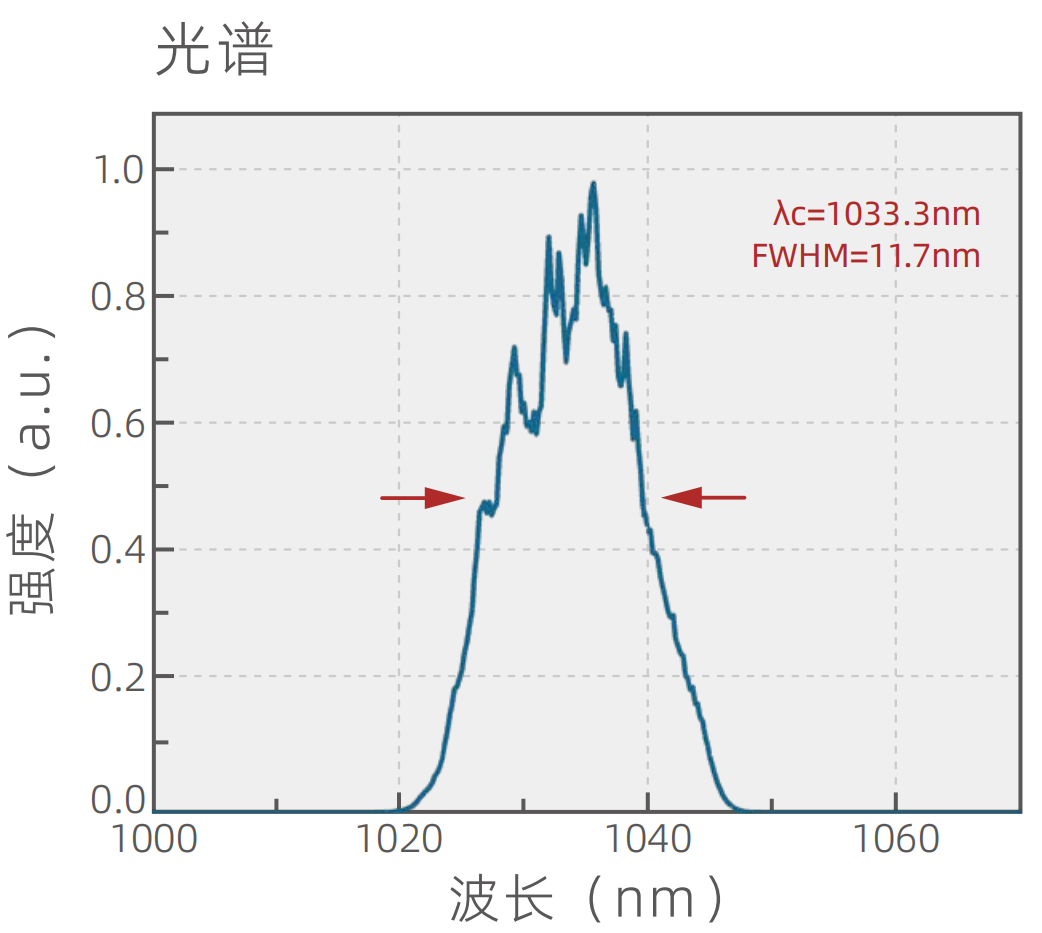

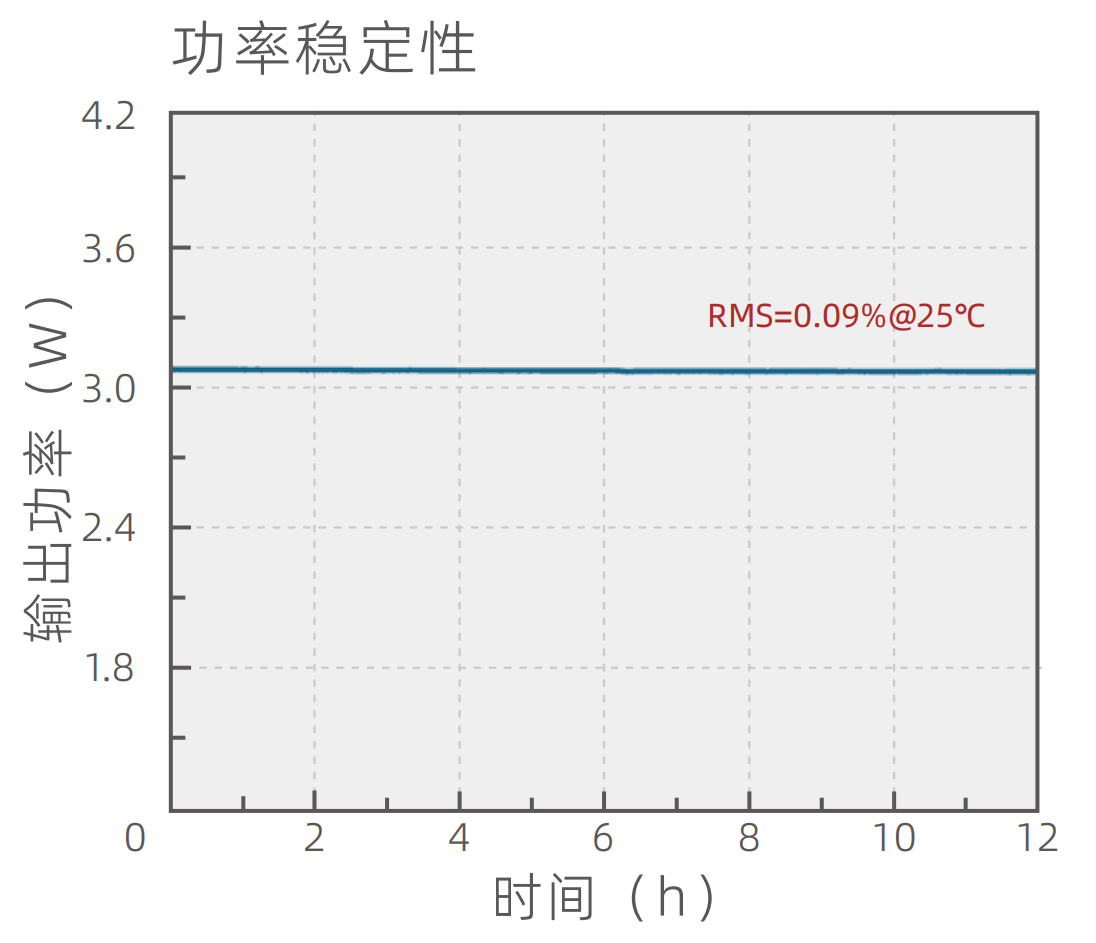

Test Data:









The FAS series femtosecond lasers offer single-wavelength outputs (1064 nm, 532 nm or 355 nm) or a three-wavelength output, and can be fully customized to your exact specifications—contact us for details.
