Deep-UV Picosecond Laser

Vsit Series Deep-UV Picosecond Lasers are our fully in-house developed, quasi-co

产品介绍

Vsit Series Deep-UV Picosecond Lasers are our fully in-house developed, quasi-continuous deep-UV ps sources. They deliver ultra-stable output at 355 nm and 266 nm (and other wavelengths) with powers up to 4 W, perfectly suited for the most demanding industrial environments.

Manufactured in a Class-100 cleanroom, the Vsit series features a fully sealed laser head and automatic alignment-point switching, enabling 24/7 continuous operation. The platform also supports higher-power upgrades and custom repetition-rate options, making it ideal for a broad spectrum of research and industrial applications.

Technical Advantages:

  • High-power, deep-UV output
  • Picosecond pulse-width
  • Fully sealed laser head for exceptional reliability
  • Modular design for easy integration

Applications:

  • Bioimaging
  • Ultrafast spectroscopy
  • Time-resolved fluorescence
  • Micro-/nano-machining
ParameterVsit-355-4WVsit-266-1W
Center Wavelength355±0.5nm266±0.5nm
Average Power>4W>1W
Pulse Width<10ps
Repetition Rate120±2MHz
Output ModeFree-space
Beam-Pointing Stability<25μrad
Power Stability (rms)<1.5%rms
Beam Quality (M²)<1.3
Dimensions (L × W × H)748×526×135.5mm

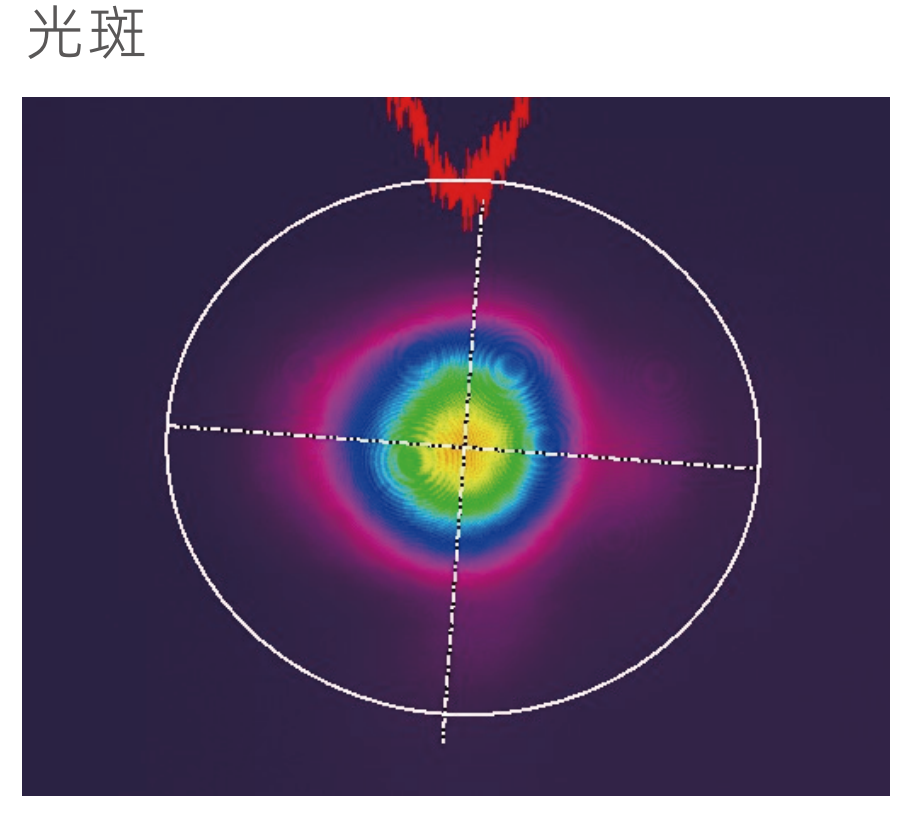

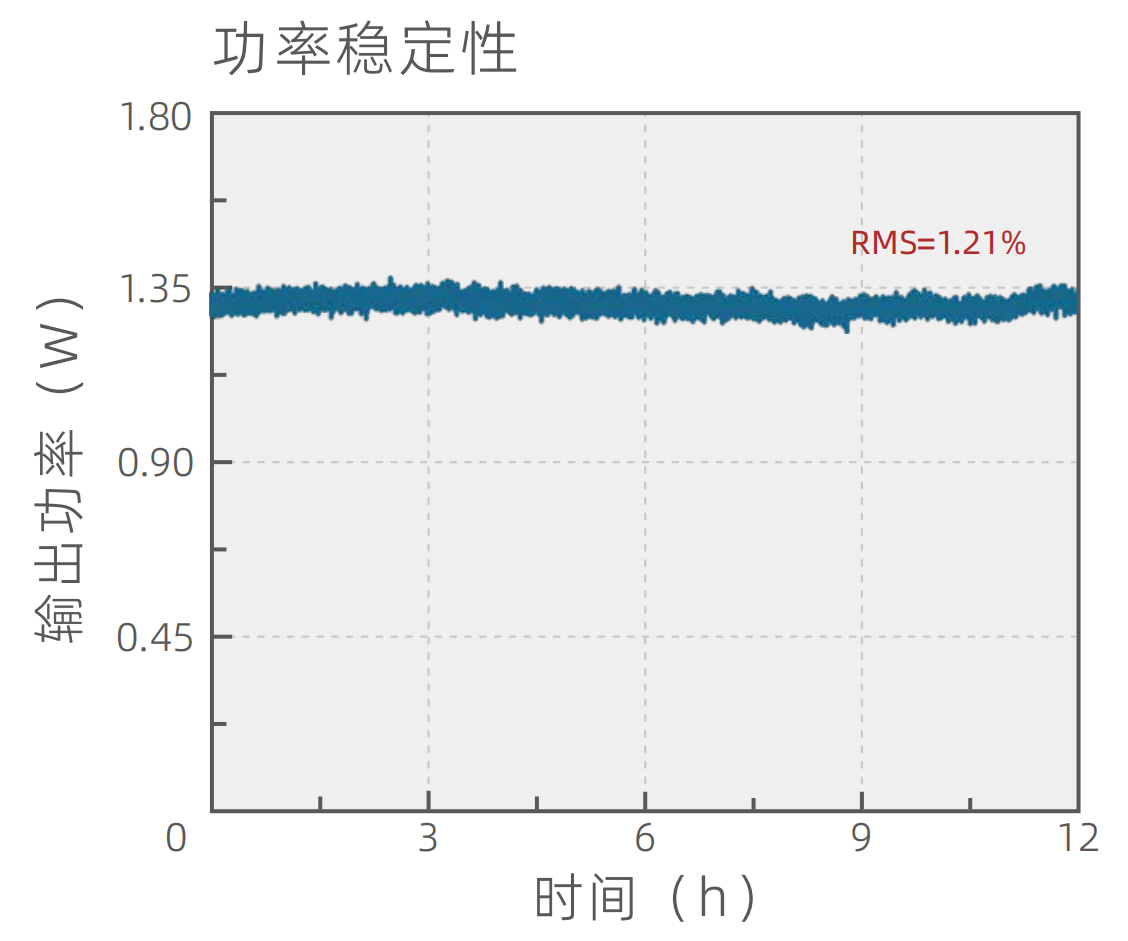

Test Data:
