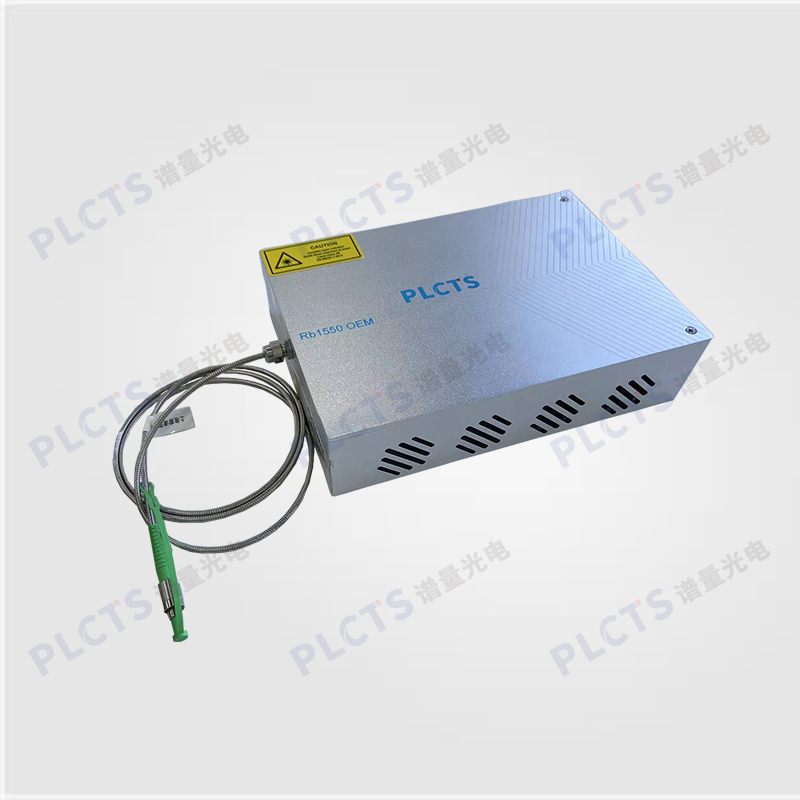

The Rb1550 OEM features a highly integrated optical and electronic architecture in a compact, portable design. It offers flexible parameter configurations, with a typical output wavelength of 1560 ± 10 nm, 80 MHz repetition rate, and sub-80 fs pulse duration. Its 24-hour power stability of <0.1% ranks among the highest in the industry.
Technical Advantages：
- Customizable wavelength
- High peak power
- Low noise
- Near-diffraction-limited beam quality
Applications：
- Terahertz generation
- Hyperspectral imaging
- Two-photon microscopy
- Two-photon polymerization
Technical Specifications：
| Parameter | Unit | Specification |
|---|
| Central Wavelength | nm | 1560±10 |
| Pulse Duration | fs | <80 |
| Repetition Rate | MHz | 80 (customizable 50–100 MHz) |
| Average Power | mW | > 100 (up to 200 mW available) |
| Power Stability | % RMS | <0.5 (24h@25°C) |
| Single-Pulse Energy | nJ | >1.25 |
| Polarization Extinction Ratio | dB | >20 |
| Fiber Tail Length | m | 1 (customizable) |
| Output Interface | PM1550 fiber, FC/APC connector |
|
| Operating Temperature | °C | 15~35 |
| Dimensions (L × W × H) | mm (L*W*H) | 200*140*48 |
| Cooling Method |
| Air-cooled |
Test Data：
Output Spectrum
Pulse Autocorrelation
Output Power Stability
