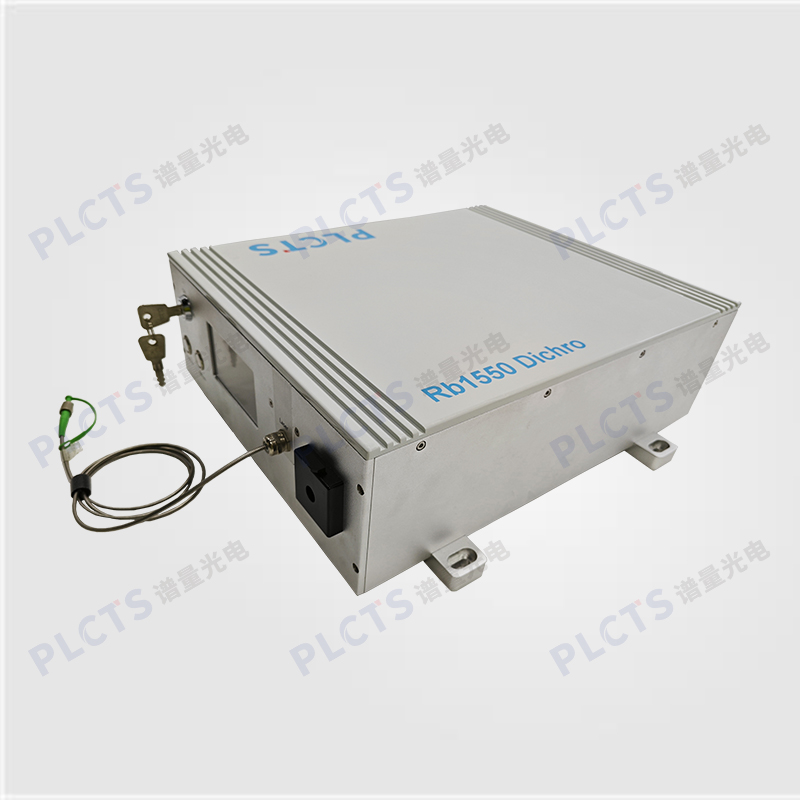

Dual-Wavelength 1550 / 780 nm Laser

Rb1550 Dichro is based on the standard Rb 1550 version with a built-in frequency

在线咨询
产品介绍

Rb1550 Dichro is based on the standard Rb 1550 version with a built-in frequency doubling module, adopting an optomechanical-electrical integrated design to achieve 1550/780nm dual-wavelength ultra-short pulse laser output.

Technical Advantages:

  • Dual-wavelength Output

  • High Peak Power

  • Linear Polarization

  • Diffraction-limited Beam Quality

Applications:

  • Terahertz Imaging

  • Harmonic Imaging

  • Two-photon Imaging

  • Two-photon Polymerization

Technical Specifications:

ParameterUnitFundamentalFrequency-doubled
Operating Wavelengthnm1560±10780±10
Pulse Widthfs<100<100
Repetition RateMHz8080
Average PowermW>100>60
Power Stability% RMS< 0.5 (24h@25°C)< 0.5 (24h@25°C)
Peak PowerKW>20>10
Polarization Extinction RatiodB>20>20
Single Pulse EnergynJ>1.25>0.75
Output Method-PM1550 Fiber, FC/APC ConnectorFree-space Output
Operating Temperature°C15~3515~35
Dimensionsmm (L*W*H)395*346*126395*346*126
Cooling Method-Air CoolingAir Cooling

Test Data:

Output Spectrum

1550nm Output Spectrum.png

Pulse Autocorrelation Trace

1550nm Pulse Autocorrelation Trace.png

Output Power Stability

1550nm Output Power Stability.png

780nm Output Spectrum.png

780nm Pulse Autocorrelation Trace.png

780nm Output Power Stability.png
