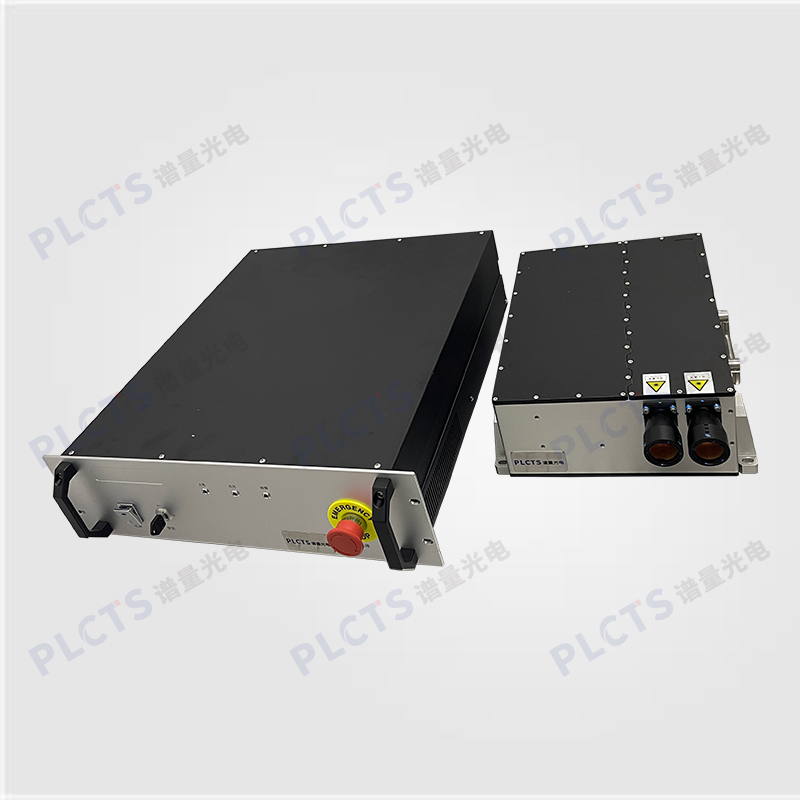

Active Q-switched tunable sub-ns laser

The ASFL Series tunable sub-nanosecond lasers deliver dual-wavelength pu

在线咨询

产品介绍

The ASFL Series tunable sub-nanosecond lasers deliver dual-wavelength pulses with high repetition rate, narrow pulse width and high peak poweThese lasers provide 1064 nm and 532 nm outputs. Leveraging fiber-coupled diode end-pumping and diode-array side pumping, they achieve highly efficient solid-state amplification with outstanding thermal depolarization suppression, beam-quality control and damage resistance.Designed for 0–40 °C operation, they perform reliably on vehicle-, airborne- and ship-borne platforms. A modular architecture and universal components ensure easy maintenance of underlying parts. Typical applications include biomedical imaging, LiDAR point-cloud generation, laser ranging and atmospheric sensing.

Technical Advantages:

Active Q-switching — ultra-low timing jitter

Narrow pulses, high peak power

High stability for harsh environments

Selectable 1064 nm / 532 nm output

Excellent beam quality & pointing stability

Long-life LD pumping, vibration-resistant design

Applications:

Biomedical ultrasound imaging

Precision micromachining

Optoelectronic detection

Multi-channel atmospheric sensing

LiDAR point-cloud imaging

Laser remote sensing & ranging

Technical Specifications:

Parameter	Unit	Parameters
Central Wavelength	nm	1064 / 532
Operating Mode	—	Pulse
Pulse Width	ns	<1.5
Single-Pulse Energy	mJ	>1
Repetition Rate	kHz	10 (kHz) or 10 Hz – 10 kHz tunable
Energy Stability	RMS	<3 % (12 h @ 25 °C)
Beam Quality (M²)	—	<1.2
Beam Diameter	mm	≈3
Beam Divergence	mrad	<0.3
Polarization Extinction Ratio	—	>100:1
Linewidth	nm	<0.12
Pointing Stability	μrad	<±30
Beam Height Deviation	mm	<±0.5
Sync Electrical Signal	—	Width 10.01 µs, High 4.6 V @ 50 Ω
Sync Optical Signal	—	Width 5.29 µs, High 4.55 V @ 50 Ω
Output Method	—	Free-space Output
Cooling Method	—	Water Cooling
Operating Temperature	°C	0 – 40
Storage Temperature	°C	–10 – 50

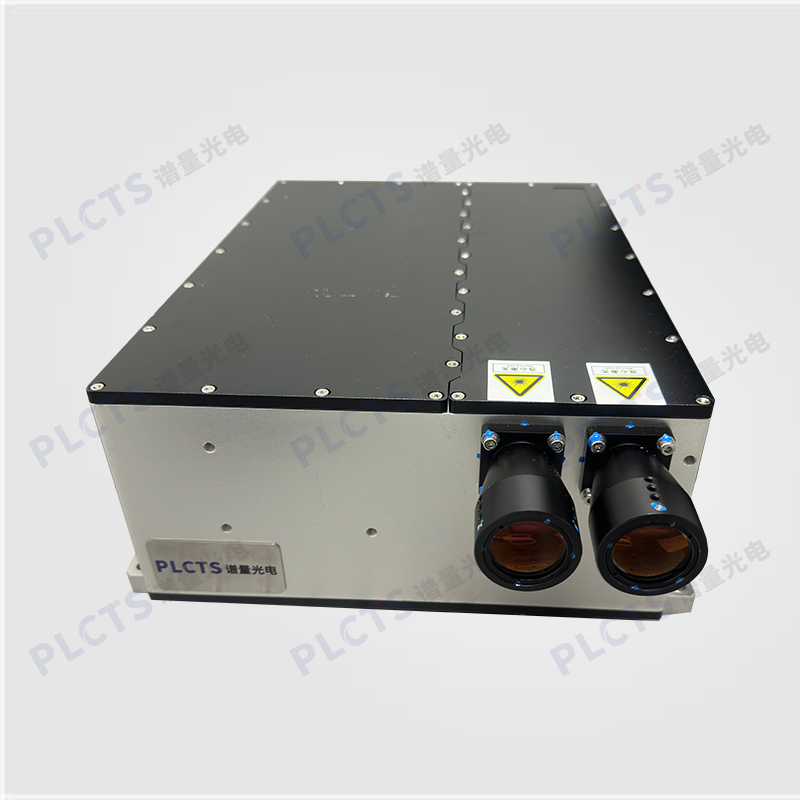

Laser Head Dimensions	mm	330 × 258 × 119
Laser Lifetime	year	>1

Note: The ASFL series can be configured for single-wavelength 1064 nm, 532 nm or dual-wavelength output. The standard single-wavelength model provides >1 mJ energy; other energy levels are available on request.
