High-energy, rep-rate solid-state ns laser

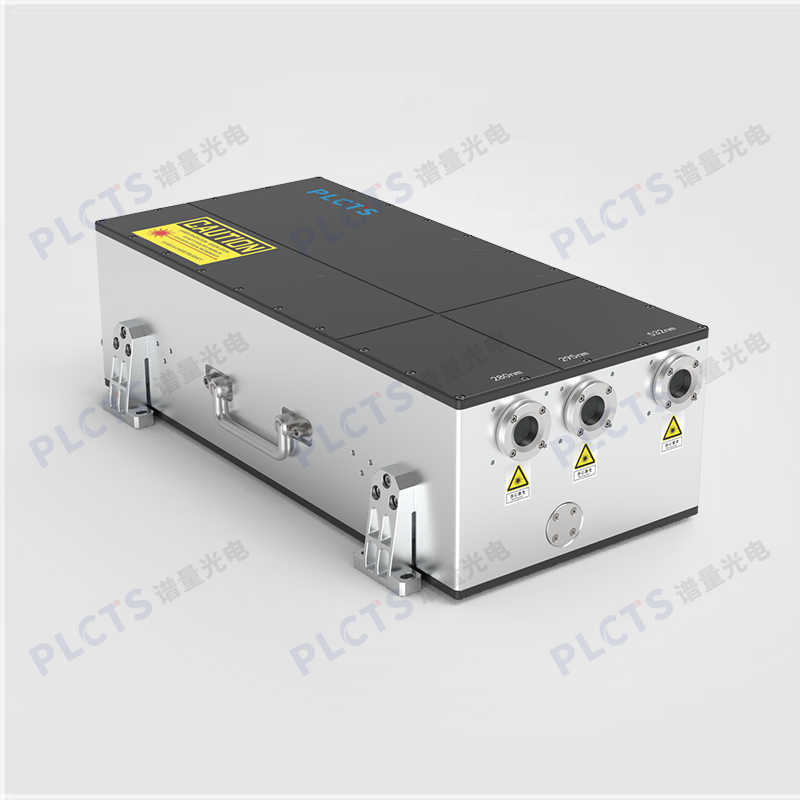

The SPLK-H Series high-energy, high-repetition, all-solid-state nanosecond laser

在线咨询

产品介绍

The SPLK-H Series high-energy, high-repetition, all-solid-state nanosecond lasers deliver high output energy, high repetition rate and narrow pulse width. According to customer requirements the system can output a single wavelength—1064 nm / 532 nm / 355 nm—or all three simultaneously, with fundamental energy exceeding 300 mJ. Using a MOPA architecture (oscillator + amplifier) and a split-unit design for laser head, controller and chiller, the SPLK-H offers rock-solid stability for 24 / 7 operation in harsh conditions. Typical applications include biomedical imaging, atmospheric LiDAR, laser pumping, laser ultrasonics and LIBS / LIF.

Technical Advantages:

Flexible, extendable wavelengths
Narrow pulses, high single-pulse energy
High stability for harsh environments
Long-life diode pumping, vibration-proof design
Excellent beam quality & pointing stability

Applications:

Biomedical ultrasonic imaging
Precision micromachining
Optoelectronic detection
Laser pumping
Atmospheric LiDAR

Technical Specifications:

Model	SPLK-20-H	SPLK-50-H	SPLK-300-H
Energy @ 1064 nm	≥ 20 mJ	≥ 100 mJ	≥ 300 mJ
Energy @ 532 nm	≥ 10 mJ	≥ 50 mJ	≥ 150 mJ
Energy @ 355 nm	—	—	≥ 100 mJ
Power Stability (RMS)	≤ 2.5 %		≤ 3 %
Pulse Width	< 10 ns
Repetition Rate	100 Hz
Beam Quality M²	< 1.3		< 2
Beam Diameter	≈ 10 mm		≈ 30 mm
Divergence	< 0.2 mrad		< 0.3 mrad
Communication	RS-232
Trigger Mode	Internal / External
Sync Signal	Electrical sync
Power Supply	220 V AC
Cooling	Water cooling
Total Power Consumption	≤ 1000 W	≤ 1500 W	≤ 2500 W
Pump Lifetime	≥ 4 billion shots
Relative Humidity	0 – 80 %
Operating Temp.	0 – 40 °C
Storage Temp.	–10 – 50 °C
Vibration Rating	Road-transport vibration

Note: Single-wavelength 1064 nm, 532 nm, 355 nm or triple-wavelength output is available. The standard single-wavelength model provides >50 mJ @ 1064 nm and >20 mJ @ 532 nm. Please contact us for other energy levels.

Below is a sample test report for the single-wavelength 532 nm version (≥ 20 mJ) for reference.

Test Report:
