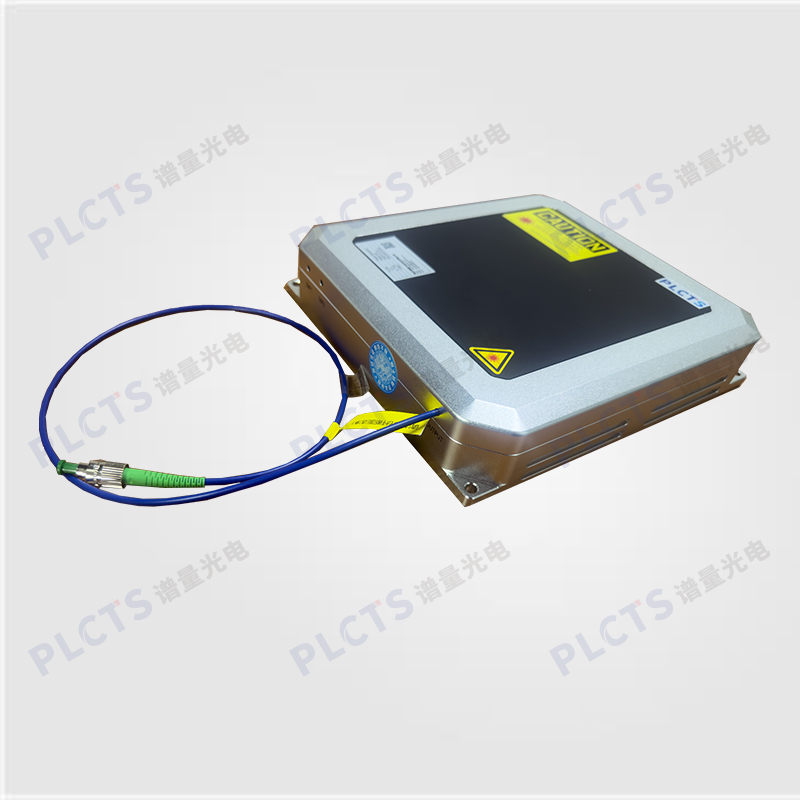

The NRMP Series continuous, narrow-linewidth single-frequency lasers combine a semiconductor seed source with a high-precision driver in an ultra-compact, integrated opto-electronic package.
Ideal for confocal microscopy, bio-analysis, LiDAR, laser vibrometry and more.
Technical Advantages:
- ● Standard modular design
- ● High spectral purity
- ● MHz-class linewidth
- ● Compact footprint for easy integration
- ● High-power, highly stable output
- ● Integrated semiconductor seed with high-precision controller
Applications:
- ● Confocal microscopy
- ● LiDAR
- ● Laser interferometry
- ● DNA sequencing & flow cytometry
- ● Digital imaging & chemical analysis
- ● Particle velocimetry
Technical Specifications:
| Parameter | Unit | Value |
|---|
| Center Wavelength | nm | 1550 |
| Operating Mode | — | Continuous (CW) |
| Output Power | W | > 2 |
| Linewidth | MHz | < 2 |
| Power Stability | % RMS | < 0.5 % RMS (24 h @ 25 °C) |
| Side-Mode Suppression Ratio | dB | > 50 |
| Beam Quality (M²) | — | < 1.1 |
| Output Format | — | Single-mode, polarization-maintaining fiber |
| Fiber Connector | — | FC/APC |
| Operating Temperature | °C | 10 – 35 |
| Cooling Method | — | Air cooling |
| Lifetime | h | > 10 000 |
