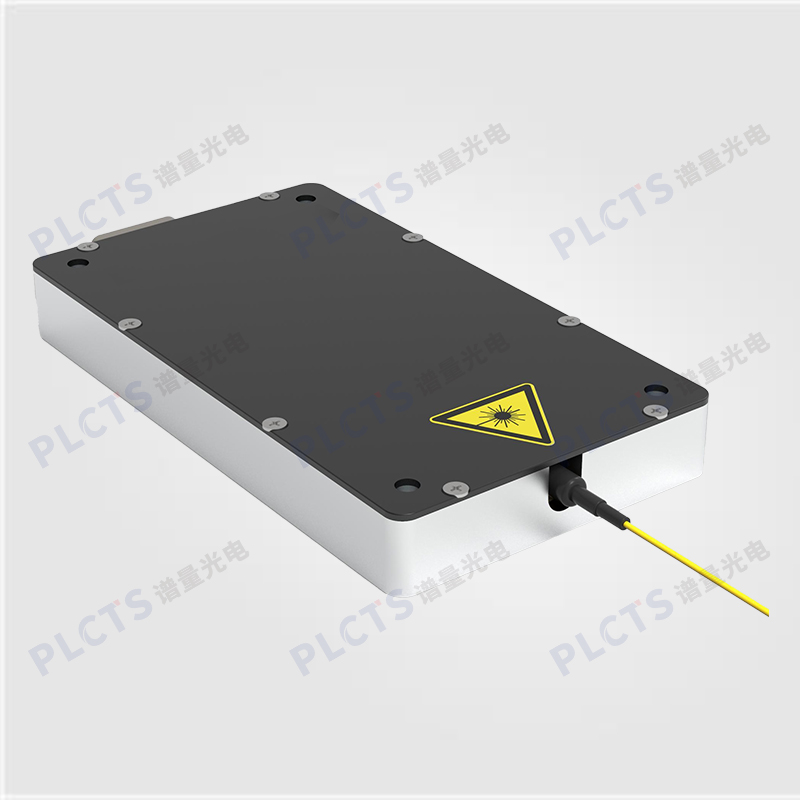

The NOML Series 1064 nm narrow-linewidth semiconductor lasers are built on a DFB seed source combined with a high-precision driver, all in a highly integrated, compact opto-electronic design. They are an ideal choice for confocal microscopy, Raman spectroscopy, bio-analysis and related applications.
Technical Advantages:
- Standard modular design
- High spectral purity
- MHz-class linewidth
- Compact and integration-friendly
- Integrated DFB seed with high-precision controller
Application Fields:
- Confocal microscopy
- Raman spectroscopy
- Holography
- DNA sequencing & flow cytometry
- Digital imaging & chemical analysis
Technical Specifications:
| Item | Unit | Specification |
|---|
| Center wavelength | nm | 1064 |
| Output power | mW | 40 |
| Linewidth | MHz | ≤ 2 |
| Power stability | % RMS | < 1 % (12 h @ 25 °C) |
| Operating voltage | V DC | 5 |
| Operating current | mA | 160 |
| Output format | — | Single-mode fiber, FC/APC connector |
| Operating temperature | °C | 10 – 35 |
| Dimensions (L × W × H) | mm | 102 × 58 × 13 |
| Total weight | kg | ≤ 1 |
| Cooling method | — | Air cooling |
| Lifetime | h | > 10 000 |
Mechanical Drawing:
