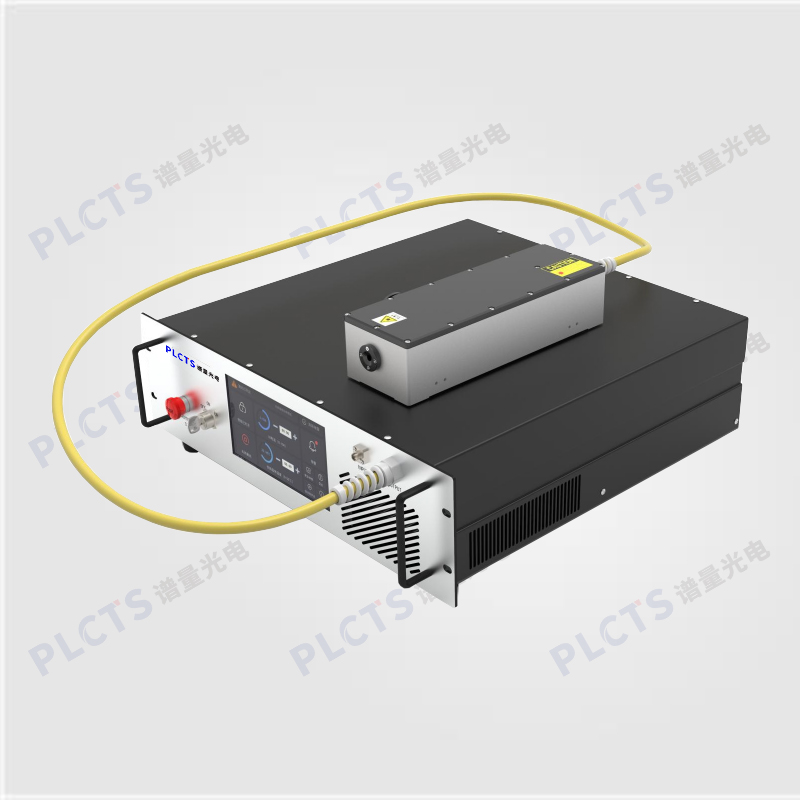

High-Power Single-Frequency Tunable Laser

The USL Series High-Power Single-Frequency Tunable Lasers deliver high output power and an ultra-narrow linewidth in a compact single-frequency fiber-laser platform. A DFB seed, all-fiber amplification chain, and frequency-doubling via periodically-poled crystals enable multi-wavelength, high-power single-frequency output. Key features include relative-intensity noise of −140 dBc/Hz at 100 kHz, no mode-hopping over wide temperature and vibration ranges, outstanding beam quality (M² < 1.2), and an integrated seed shut-down protection system. The rugged opto-mechatronic design is easy to relocate and operate, making the USL series ideal for spectroscopy, interferometry, LiDAR, optical communications, and more.

Key Advantages:

High power, ultra-narrow linewidth
Excellent power stability
Precise wavelength tuning
Low intensity noise
Superior beam quality
Seed shut-down protection

Applications:

Spectroscopic sensing
Interferometric metrology
Optical lattices & traps
Holographic imaging
LiDAR
Optical communications

Technical Specifications:

Model	USL-532	USL-780	USL-1064	USL-1550
Central Wavelength (nm)	532 ± 1	780 ± 1	1064 ± 1	1560 ± 1
Operating Mode	CW
Output Power (W)	1 / 2 / 5 / 10	2 / 4	5 / 10 / 20 / 50	10 / 15 / 20
Linewidth (kHz)	< 20	< 20	< 10	< 10
Wavelength Tuning Range (GHz)	> 6	> 10	> 10	> 10
Temperature Tuning Range (nm)				0.3
Relative Intensity Noise (RMS)	< 0.03 % (10 Hz – 10 MHz)		< 0.05 % (10 Hz – 10 MHz)
Beam Quality	TEM₀₀, M² < 1.2
Polarization Extinction Ratio (dB)	> 20
Power Stability (RMS)			< 0.5 % @ 3 h
Output Type	Collimated output
Cooling Method	Air / water cooling
Beam Diameter (mm)	1 ± 0.2	-
Power Supply	1 – 240 V AC, 50 – 60 Hz

Note: Wavelengths and power levels can be customized on request. Please contact us for details.
