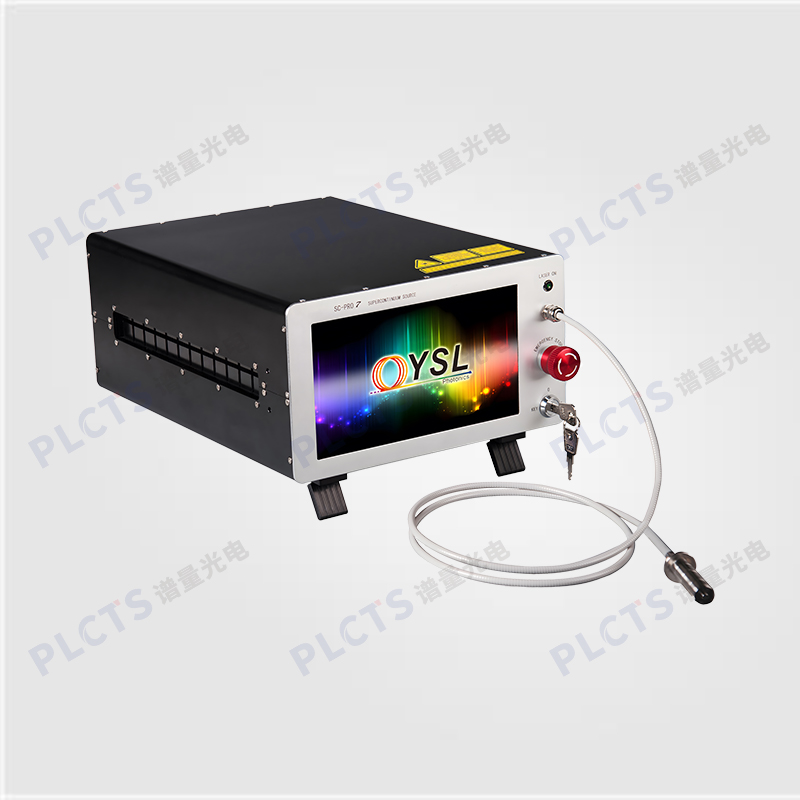

The SC-PRO-M is a newly launched narrow-pulse supercontinuum source. Leveraging mode-locking, it delivers ≈ 6 ps pulses across 410 – 2400 nm with up to 7 W total power and a tunable 10 kHz – 80 MHz repetition rate—an ideal engine for super-resolution imaging, nonlinear optics, OCT, nanophotonics, fluorescence-lifetime spectroscopy, and more.
Key Features:
- Total power > 7 W @ 80 MHz
- Broadband 410 – 2400 nm output
- Seed pulse width ≈ 6 ps
- Repetition rate 10 kHz – 80 MHz tunable
- Single-mode output
Typical Applications:
- Photocurrent microscopy
- Nanophotonics
- Fluorescence spectroscopy & imaging
- Super-resolution imaging (STED)
- Optical coherence tomography (OCT)
Technical Specifications:
| Model | SC-Pro-M-80 | SC-Pro-M-40 | SC-Pro-M-20 | SC-Pro-M-PP |
|---|
| Total Power | > 7 W | > 3.5 W | > 1.5 W | > 3.5 W |
| Repetition Rate | 80 MHz | 40 MHz | 20 MHz | 10 kHz – 40 MHz |
| Visible Power | > 2 W | > 1 W | > 0.5 W | 1 W @ 40 MHz |
| Spectrum Range | 410 – 2400 nm |
| Power Stability | < 1 % |
| Pulse Width | ≈ 6 ps |
| Beam Ø / Quality | ≈ 2 mm @ 633 nm, M² < 1.1 |
| Divergence | < 1 mrad |
| Polarization | Non-polarized |
| Fiber Length | 1.5 m |
| Control Interface | USB |
| Sync Output (SMA) | TTL signal 0 – 2.8 V |
| Power Supply | 100 – 240 V AC, 50/60 Hz |
| Dimensions / Weight | 360 × 260 × 125 mm, < 20 kg |
