Olympus Plan-Apochromat Super Flat-Field Silicone Oil/Water Immersion Objectives
Olympus Plan-Apochromat Super Flat-Field Silicone Oil/Water Immersion Objectives (Olympus UPLSAPO-S/W Series)
Olympus UPLSAPO Super-Apochromat Objectives compensate spherical and chromatic aberrations and deliver high transmission from visible to near-infrared. Available with different immersion media—silicone oil or water—these lenses allow precise refractive‐index matching to live cells and tissues for efficient imaging and accurate 3D morphology.
*1 “Super-apochromatic” denotes enhanced aberration correction across a wider spectrum (UV to near-IR).
| Model | Magnification | NA | WD (mm) | FN | Cover-glass Thickness (mm) | Immersion | Spring | Fluorescence |
|---|---|---|---|---|---|---|---|---|

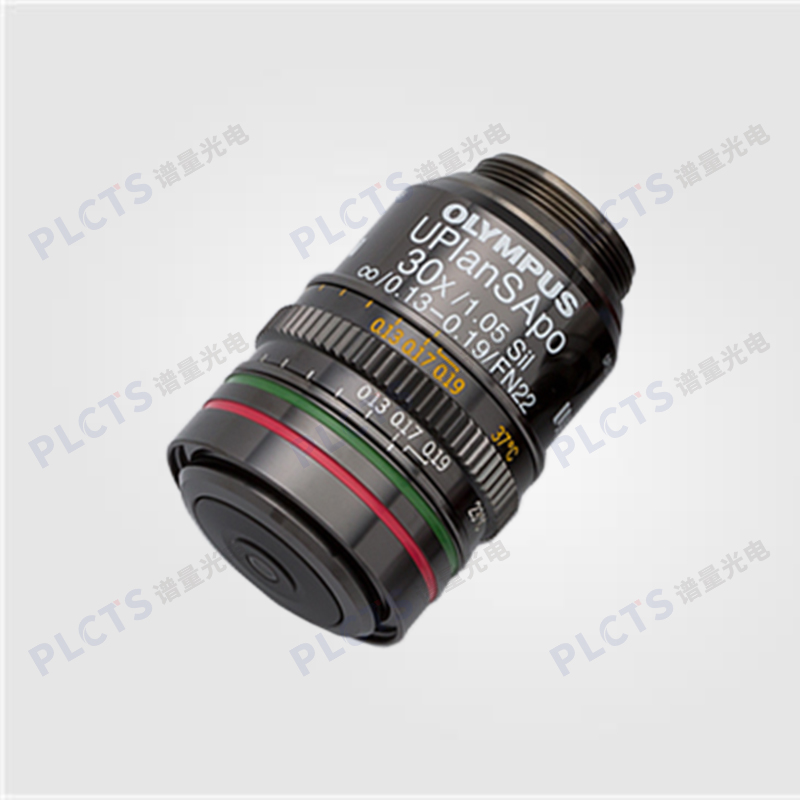

| UPLSAPO30XS | 30X | 1.05 | 0.8 | 22 | 0.13–0.19 | Silicone Oil | None | U/BG/IR |
| UPLSAPO30XSIR | 30X | 1.05 | 0.8 | 22 | 0.13–0.19 | Silicone Oil | None | U/BG/IR |
| UPLSAPO40XS | 40X | 1.25 | 0.3 | 22 | 0.13–0.19 | Silicone Oil | Yes | U/BG/IR |

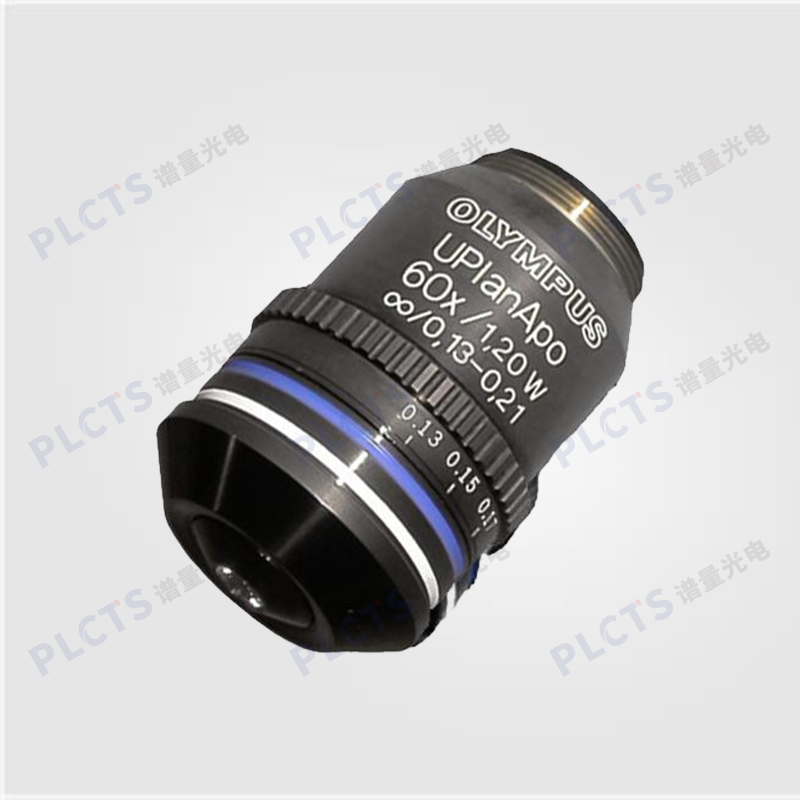

| UPLSAPO60XW | 60X | 1.20 | 0.28 | 26.5 | 0.13–0.21 | Water | Yes | U/BG/IR |
| UPLSAPO60XSR2 | 60X | 1.30 | 0.3 | 22 | 0.15–0.19 | Silicone Oil | Yes | U/BG/IR |
| UPLSAPO100XS | 100X | 1.35 | 0.2 | 22 | 0.13–0.19 | Silicone Oil | Yes | U/BG/IR |
