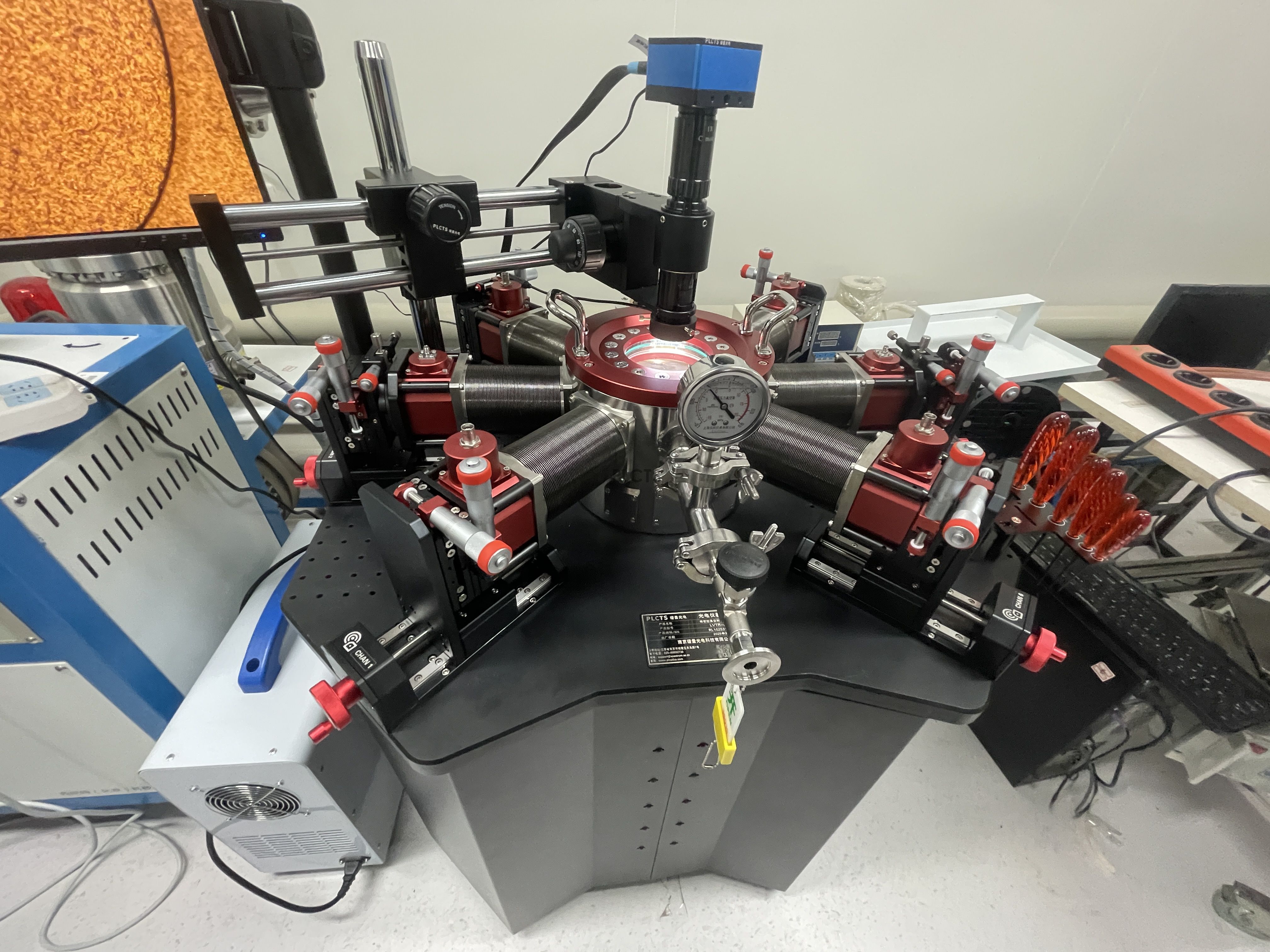

SEU LVTR Series Vacuum DC/RF Probe Station Successfully Delivered

Core Specifications

Parameter	Value
Stainless Steel Vacuum Chamber	4″ vacuum chuck, 8″ chamber, anti-reflection coated 4″ quartz window
Measured Vacuum Level	Better than 10^–5 Pa with molecular pump
Pressure Gauge	Real-time display of chamber pressure
Leakage Current Accuracy	<100 fA
High-Precision Three-Coax DC Probe Holders	4 units, displacement accuracy up to 1 μm
High-Precision RF Probe Holders	2 units, SMA interface, standard RF probe fixtures, displacement accuracy up to 1 μm
Test Environment Capability	Supports 40 GHz high-frequency vacuum testing
Additional Configuration	Monocular metallographic microscope, 4K digital camera, 24″ 4K monitor, multi-axis adjustment
Vibration Isolation System	Precision air-float vibration isolation table and ultra-quiet air compressor for stable testing
Delivery Location	Southeast University
Delivery Date	March 15, 2025
Delivered Product	Precision Vacuum DC/RF Probe Station
Related Products	We offer a full range of vacuum probe stations with temperature and tensile modules (manual/automatic), ideal for high-precision vacuum testing.
