Nanjing University of Science and Technology received a successful installation and delivery of our Thermal Vacuum Probe Station.

发布时间：2020-11-12

人气：

案例介绍

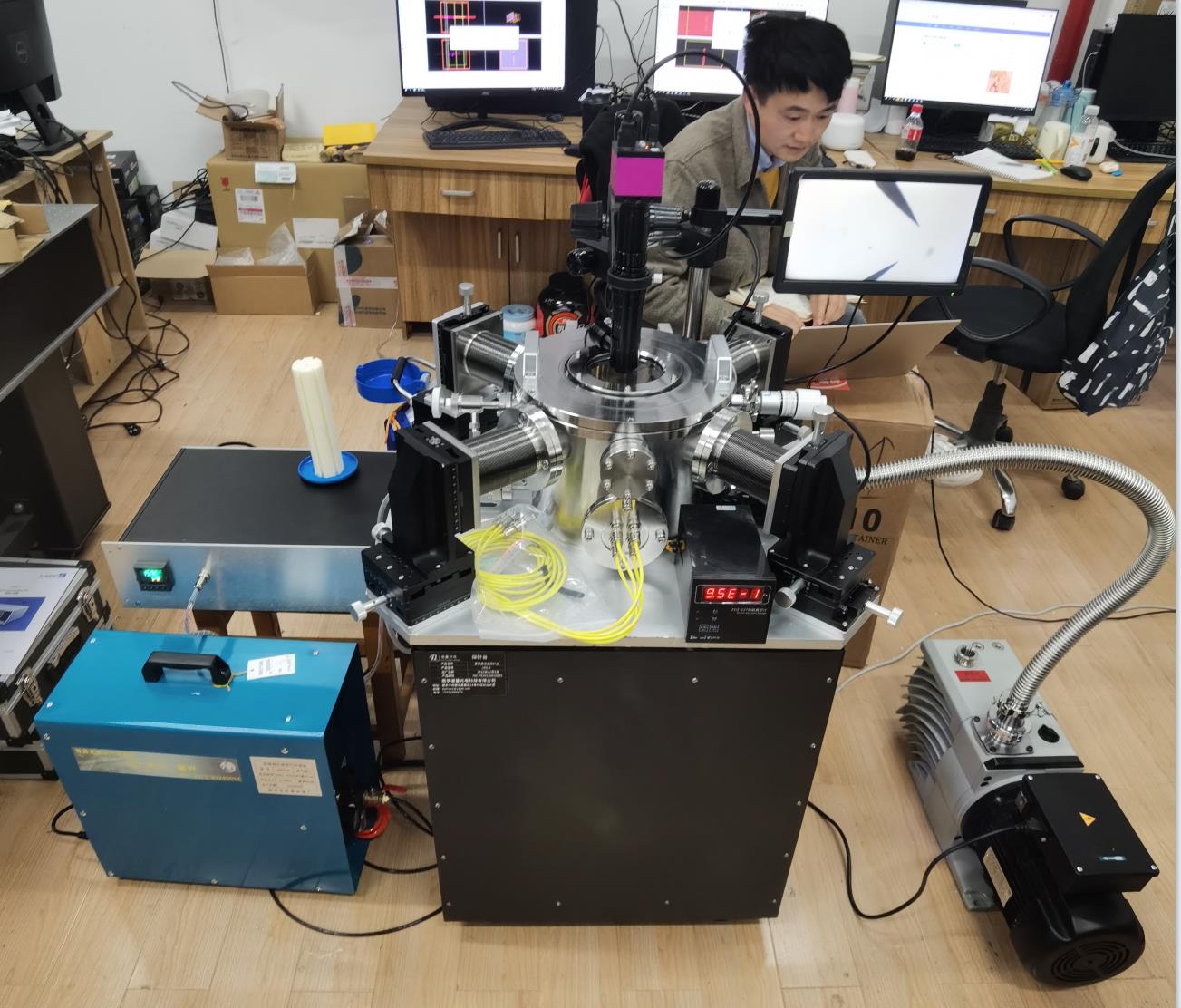

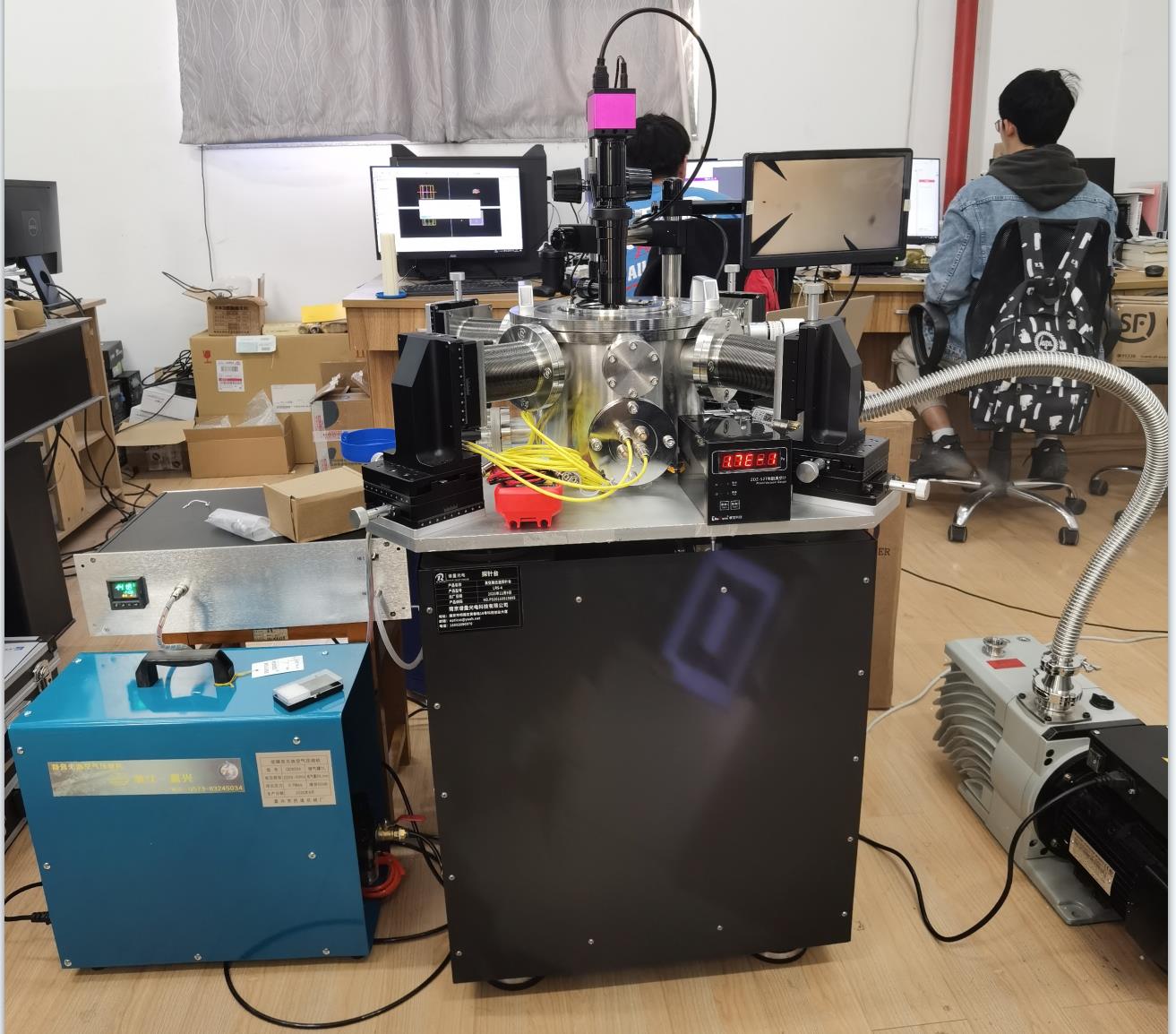

High-Low Temperature Vacuum Probe Station Successfully Installed at Nanjing University of Science and Technology

Key Specifications

Specification	Value
Measured Vacuum Level	< 1 Pa (achieved 0.17 Pa with mechanical pump)
Temperature Range	–140°C to 600°C
Temperature Accuracy	±1°C
Temperature Uniformity	±3°C
Probe Adjustment Accuracy	2 μm positioning accuracy, 3 μm resolution, ±2 μm linearity
Leakage Current Sensitivity	100 fA
Sample Stage	4" oxygen-free copper plate, flatness: 5 μm
Vacuum Chamber	Ø8" × H7", made of 304 stainless steel
Delivery Location	Nanjing University of Science and Technology
Delivery Date	November 12, 2020
Delivered Product	LVTS Thermal Vacuum Probe Station
