The 532/1064 nm dual-wavelength, sub-nanosecond, high-repetition-rate tunable laser has been successfully delivered to SUIR

发布时间：2024-08-20

人气：

案例介绍

University of Science and Technology of China 532/1064nm Dual-Wavelength Sub-Nanosecond Repetitive Tunable Laser

Installation and Delivery Case Study

Parameter Name	Parameter Value
Operating Wavelength	532nm
Pulse Width	<1.5ns
Single Pulse Energy	>1mJ
Repetition Rate	10Hz–10KHz Continuously Tunable (1Hz step)
Energy Stability	<3% (RMS)
Beam Quality M²	≤1.2
Beam Divergence	<0.3mrad
Pointing Stability	<5μrad
Cooling Method	Water Cooling
Operating Ambient Temperature	0–40°C
Delivery Location	University of Science and Technology of China
Delivery Date	August 20, 2024

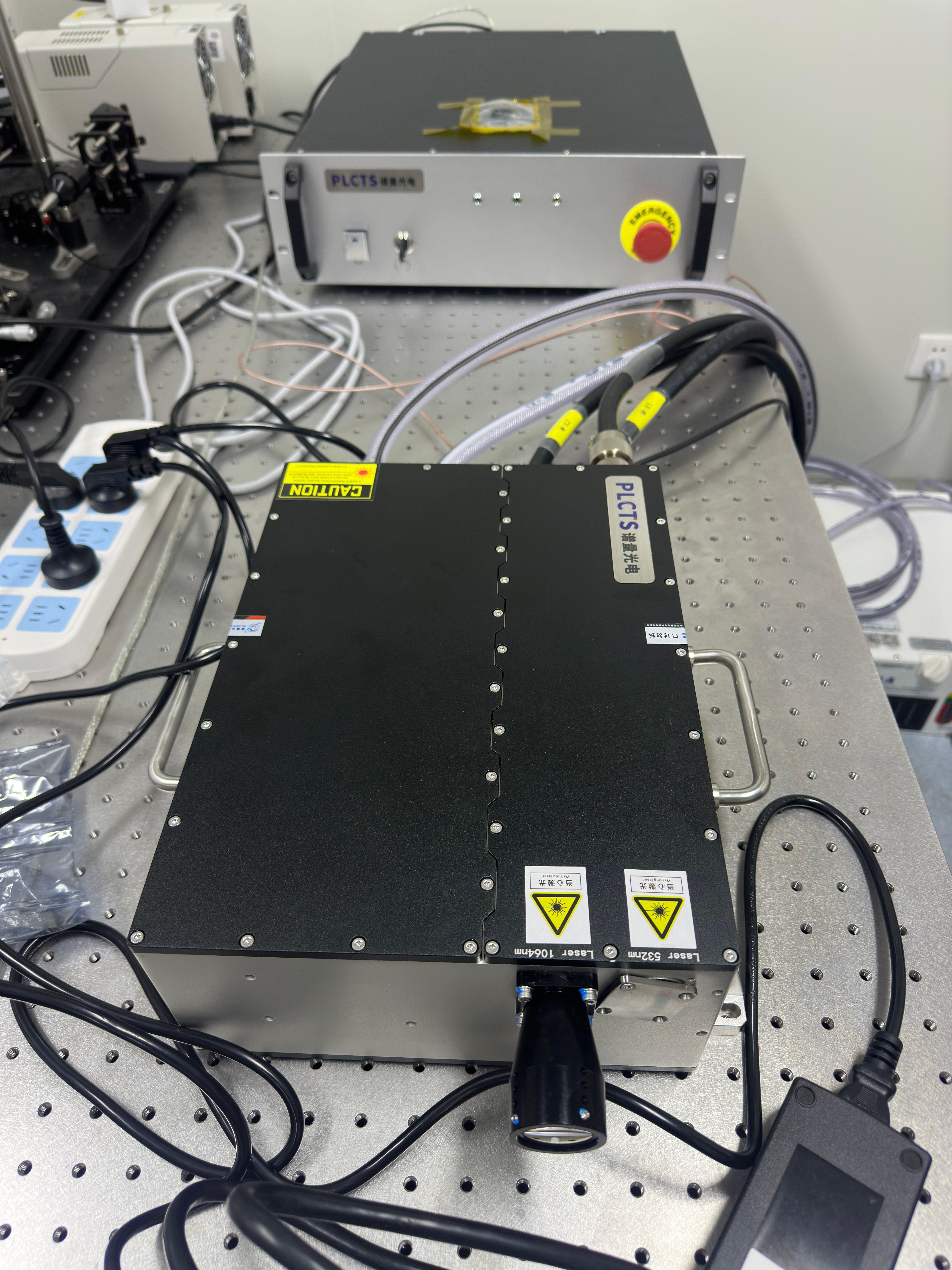

Delivered Product	Actively Q-switched Sub-Nanosecond Repetitive Tunable Laser

Bio-ultrasound Imaging Microfluidics LiDAR Laser Remote Sensing Laser Ranging

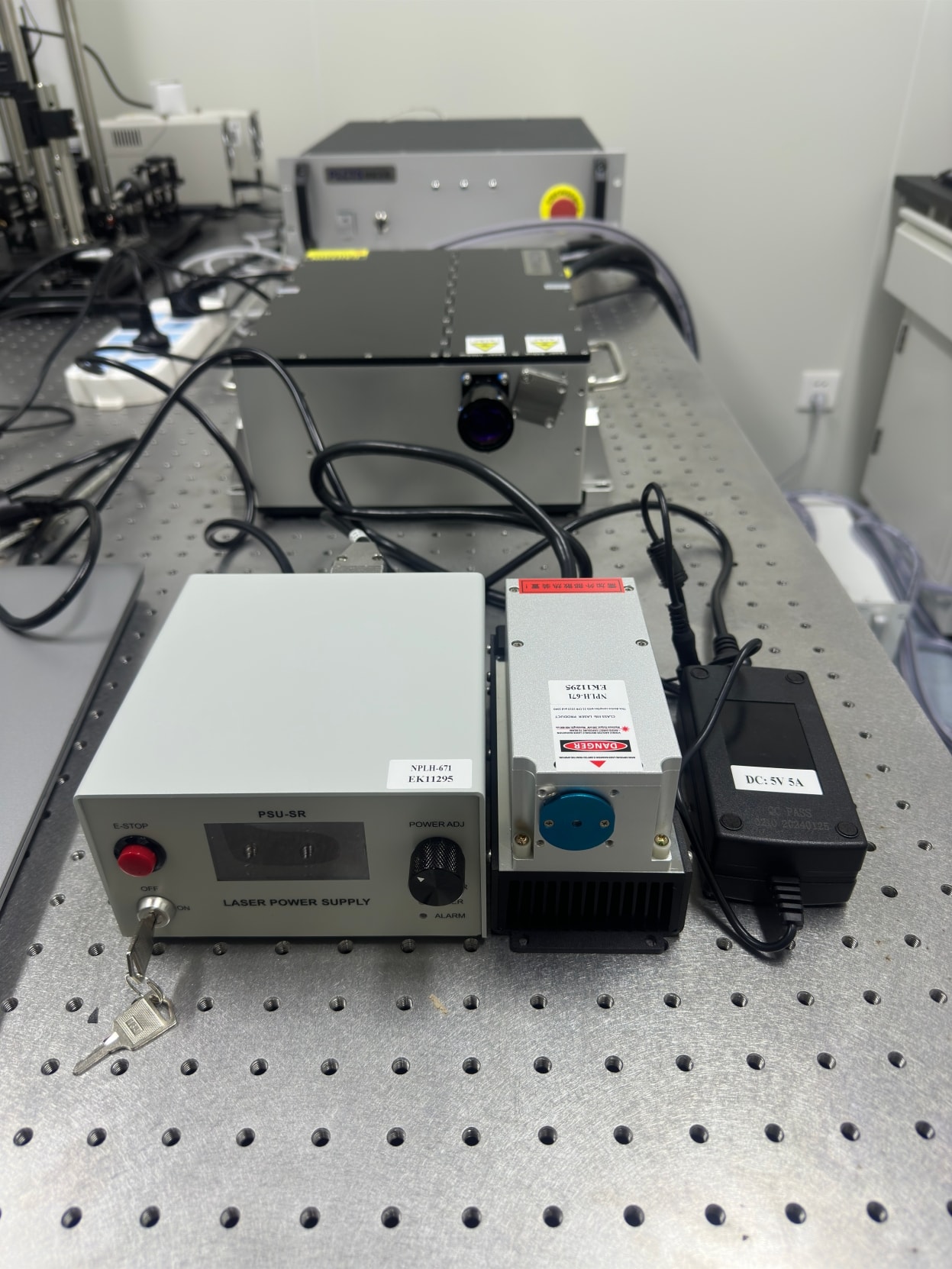

Installation and Delivery Case Study

Parameter Name	Parameter Value
Operating Wavelength	671nm
Operating Mode	CW
Output Power	≥200mW
Power Stability	<1% (RMS, Over 4 Hours)
Spot Diameter	~3mm
Beam Divergence	<1mrad
Warm-up Time	<5min
Operating Temperature	10–35℃
TTL External Trigger Control	Supported
Operating Lifetime	>10000 Hours
Delivery Location	University of Science and Technology of China
Delivery Date	August 20, 2024

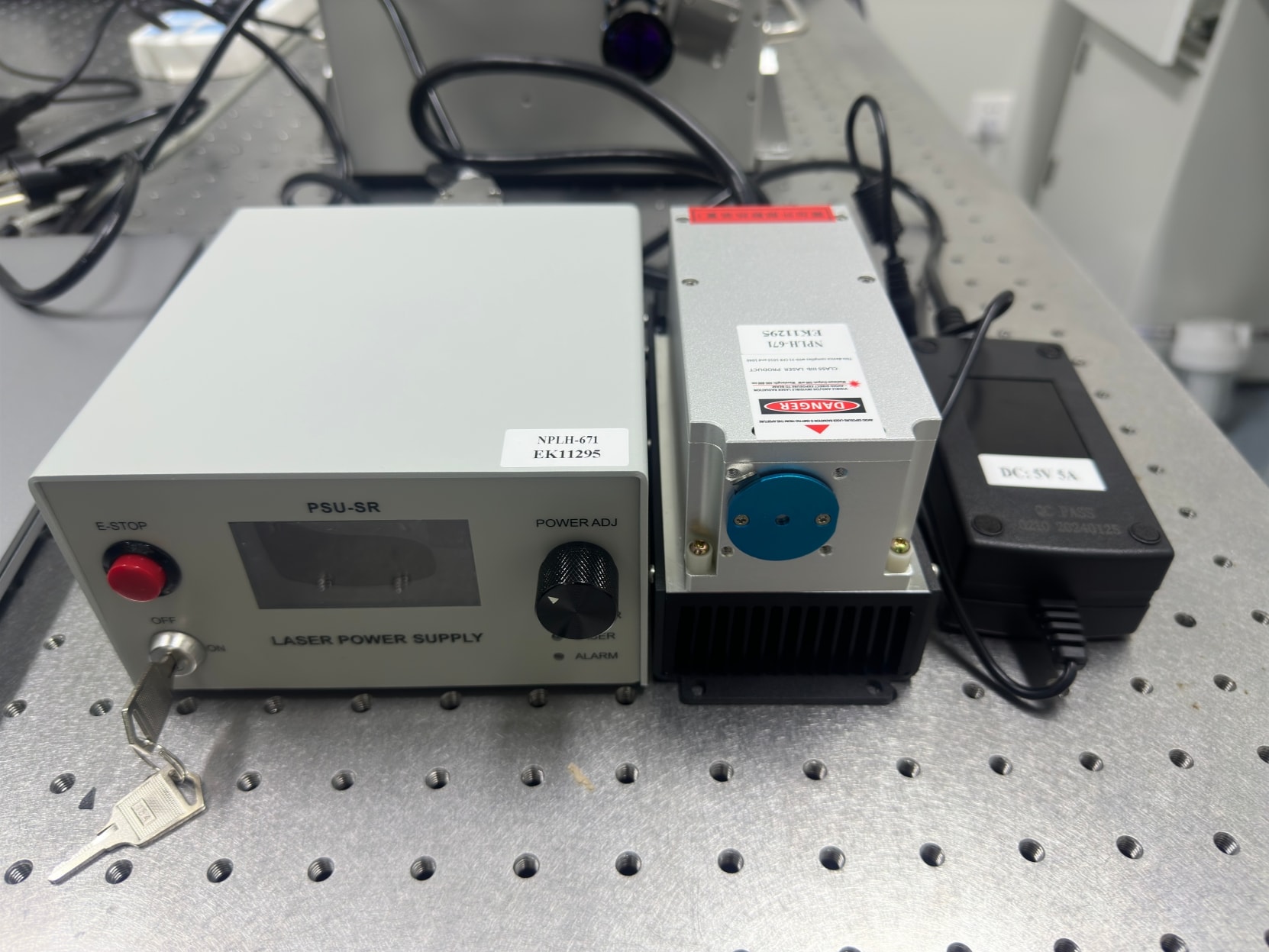

Delivered Product	671nm Externally Triggered Continuous High Stability Laser

Laser Imaging and Spectroscopy Research Microscopic Illumination Photoluminescence Laser Ranging
