Our DC Probe Station, RF Constant Temperature Heating Probe Station, and Metallographic Microscope were successfully accepted and delivered to a research institute in Zhejiang.

发布时间：2024-09-04

人气：

案例介绍

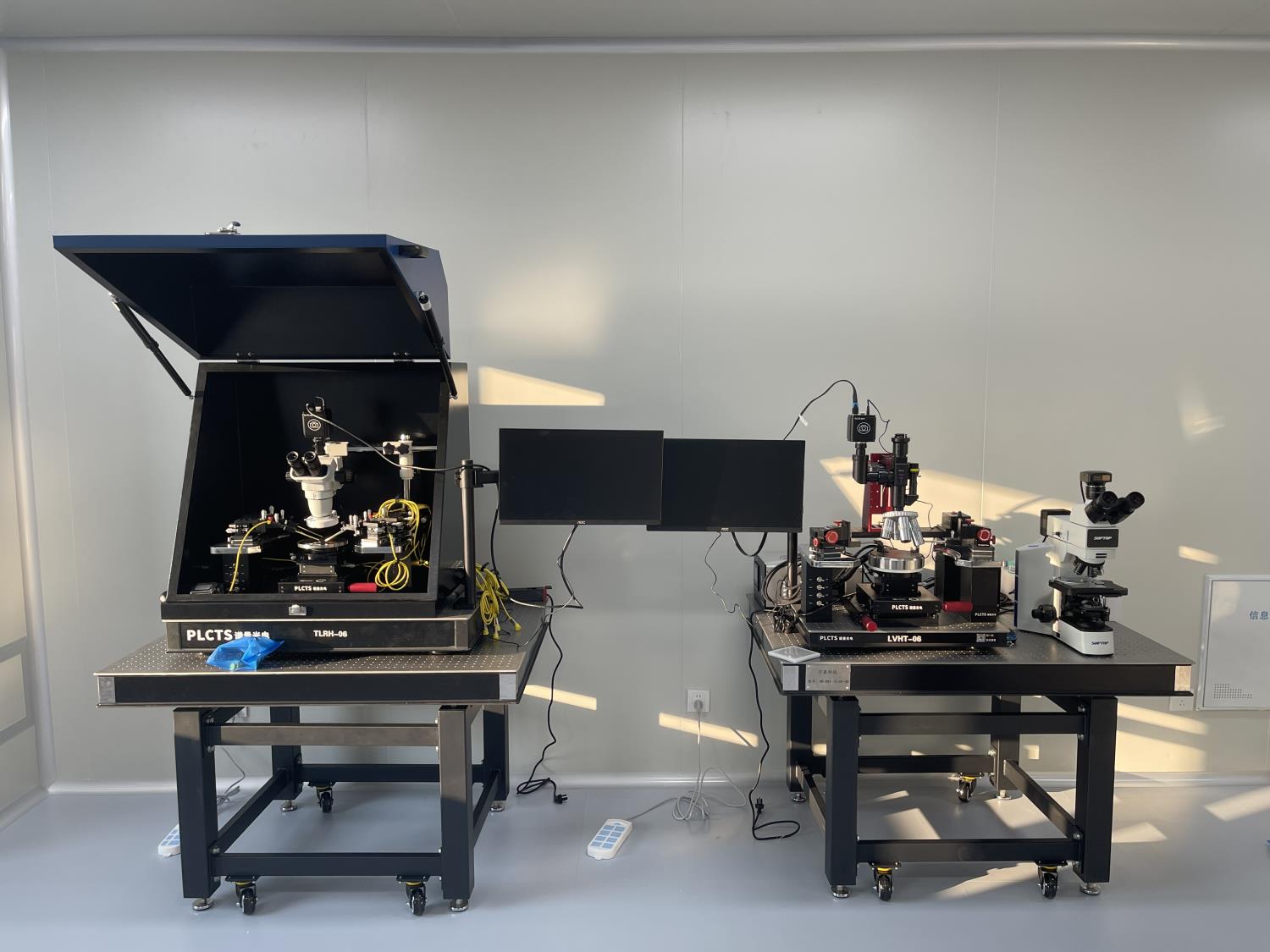

Zhejiang Research Institute DC Probe Station, RF Thermal Probe Station, Metallurgical Microscope Acceptance and Delivery

Parameter Name	Parameter Value
Vacuum Chuck	6 inches
Sample Stage Displacement Accuracy	<3μm
Probe Seat Displacement Accuracy	＜3μm
Leakage Current Accuracy	＜100fA
Number of Probe Seats	5
Delivery Location	Zhejiang Research Institute
Delivery Date	August 6, 2024
Delivered Product	TLRH Probe Station
Store Details	PLCTS Store -TLRH Probe Station

Semiconductor Material Photoelectric Detection Power Device Testing MEMS Testing PCB Testing LCD Panel Testing

Parameter Name	Parameter Value
Vacuum Chuck	6 inches
PID Temperature Controller	Temperature control accuracy ±0.1℃, effective area uniformity ±5℃
Heating Temperature	Maximum heating temperature up to 300℃
Optional Feature 1	2 Set 0.7μm High Precision RF Probe Seats
Optional Feature 2	Imported Mitutoyo High Precision Metallurgical Microscope, 4 long working distance objectives (5X 10X 20X 50X)
Delivery Location	Zhejiang Research Institute
Delivery Date	August 6, 2024
Delivered Product	Thermal Probe Station
Store Details	PLCTS Store - Thermal Probe Station
Store Details	PLCTS Store - 0.7μm RF Probe Seat
Store Details	PLCTS Store - Mitutoyo Objectives

Semiconductor Material Photoelectric Detection Power Device Testing MEMS Testing PCB Testing LCD Panel Testing
